Home >> Toyota >> 2006 >> Matrix 4WD L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Transfer Case >> Service Data

Service Data

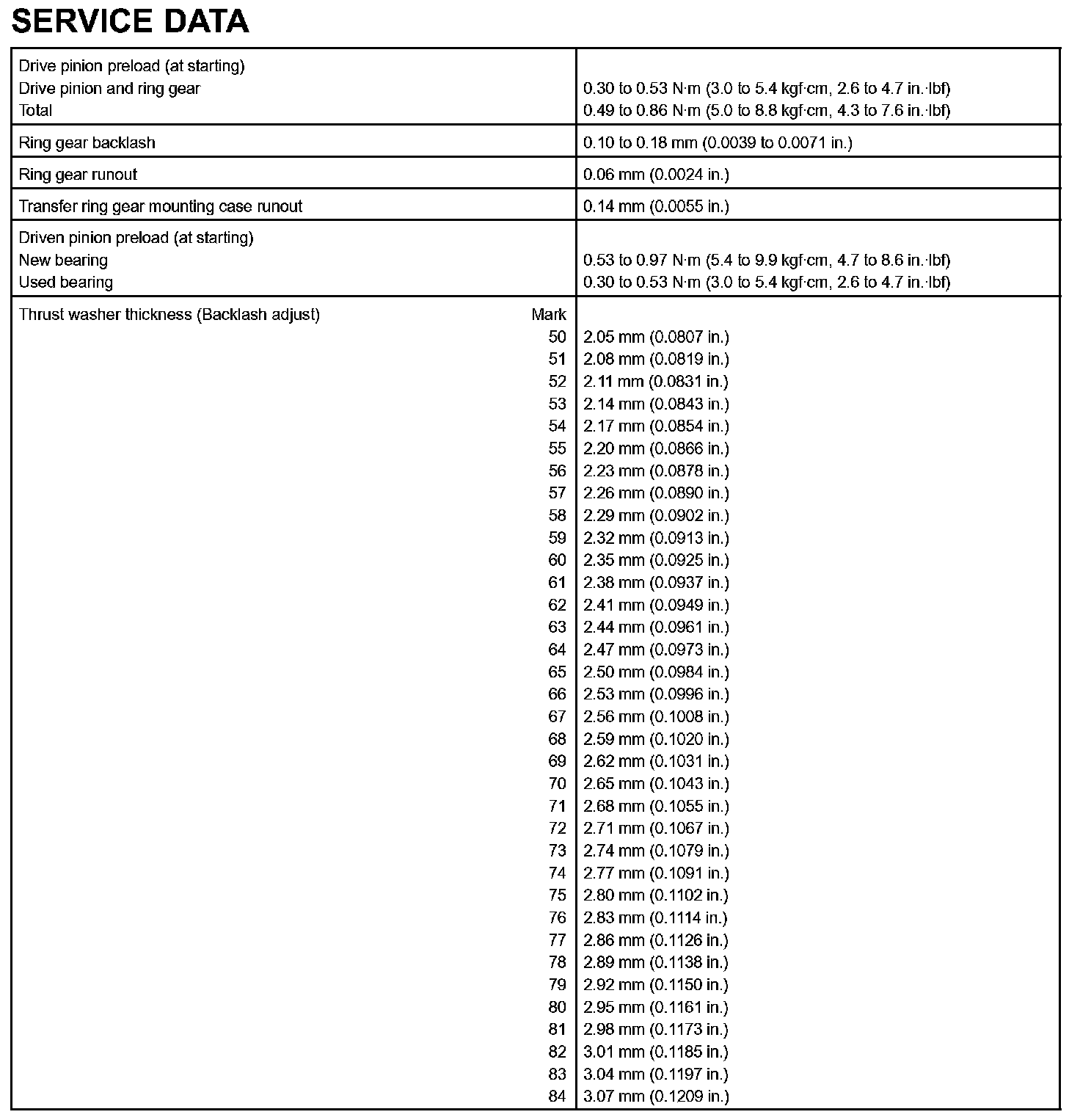

Transfer-Service Data (Part 1):

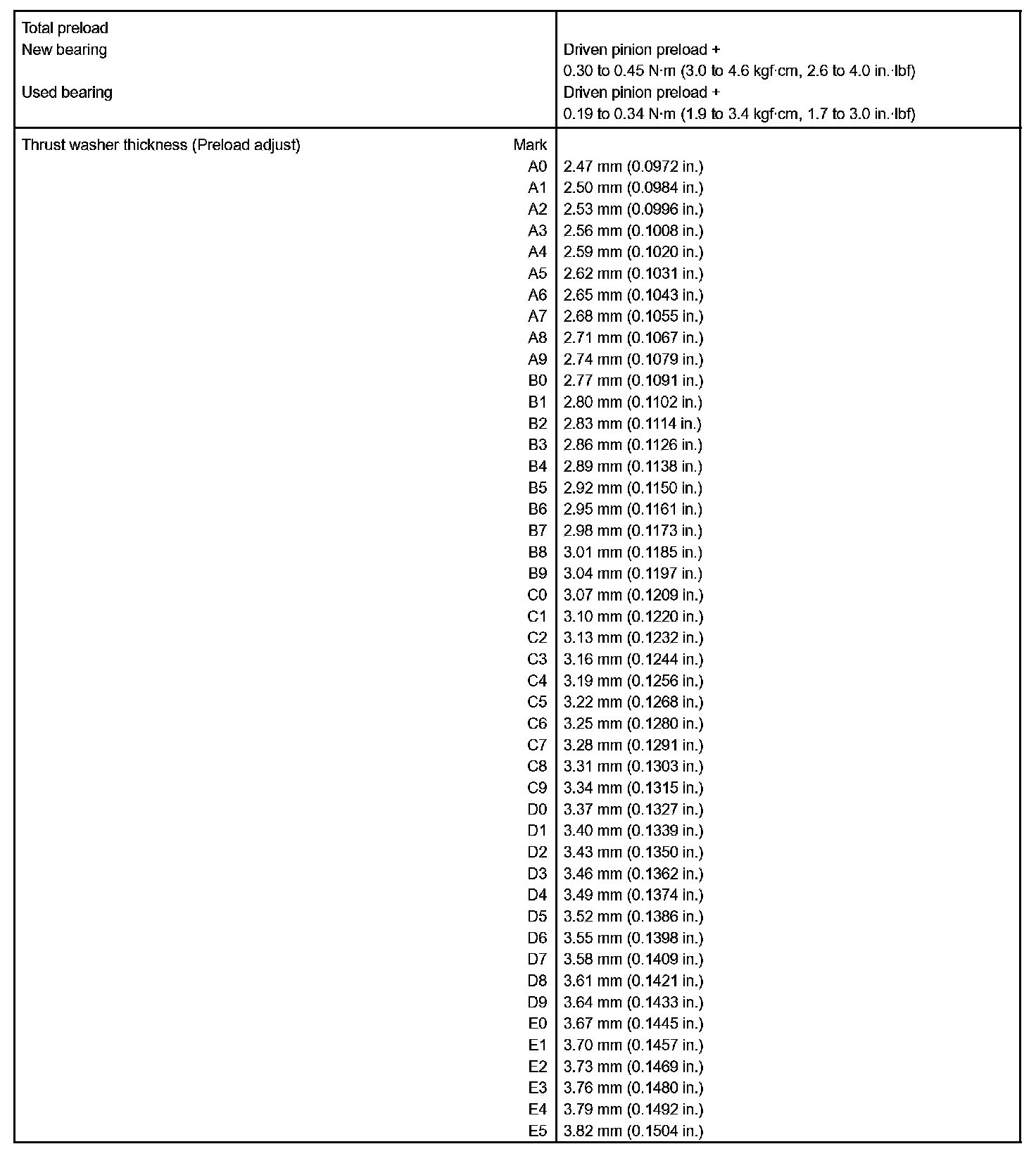

Transfer Service Data (Part 2):



Transfer-Service Data (Part 3):
