Engine Tightening Specifications

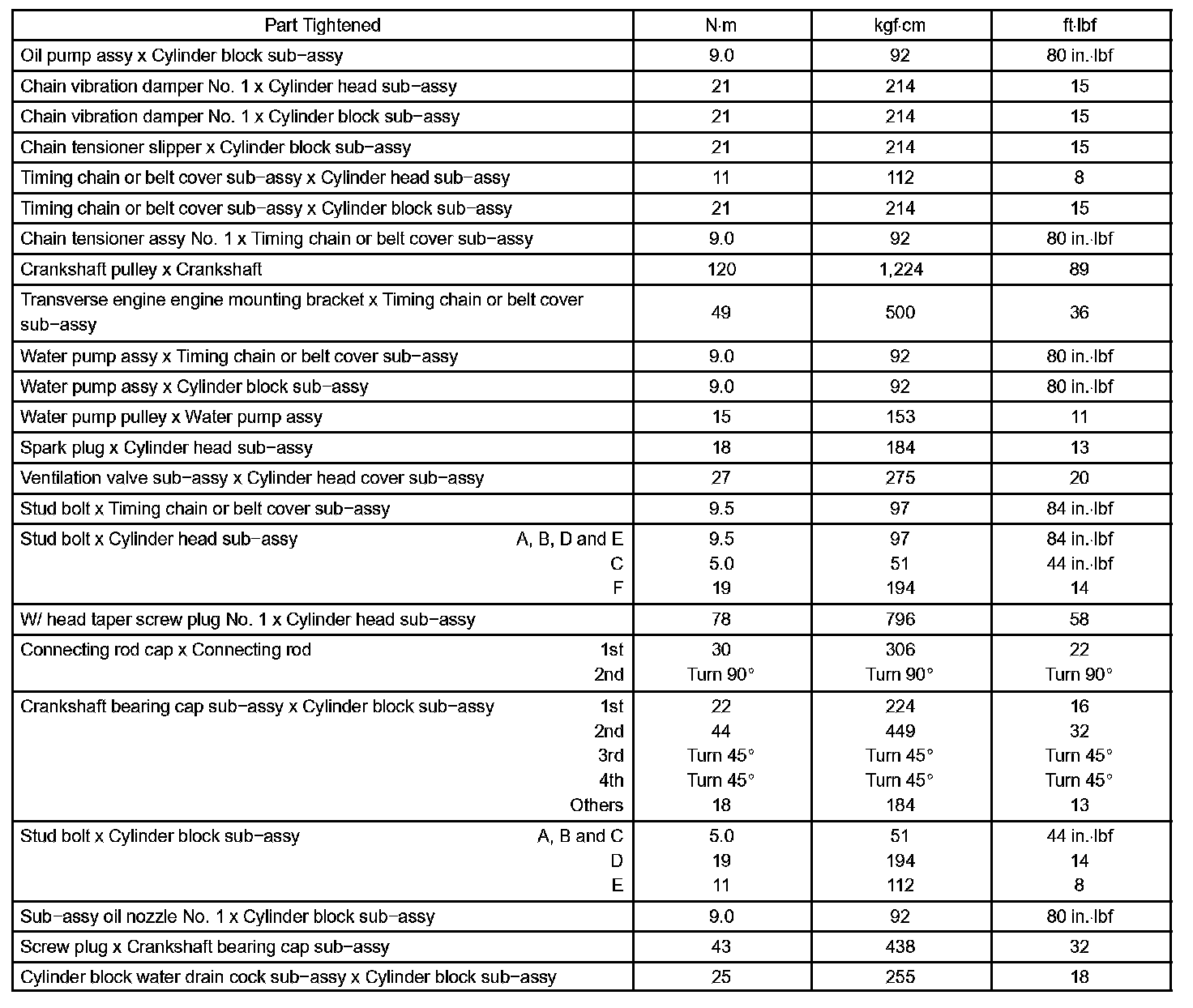

Engine Mechanical-Torque Specification (Part 1):

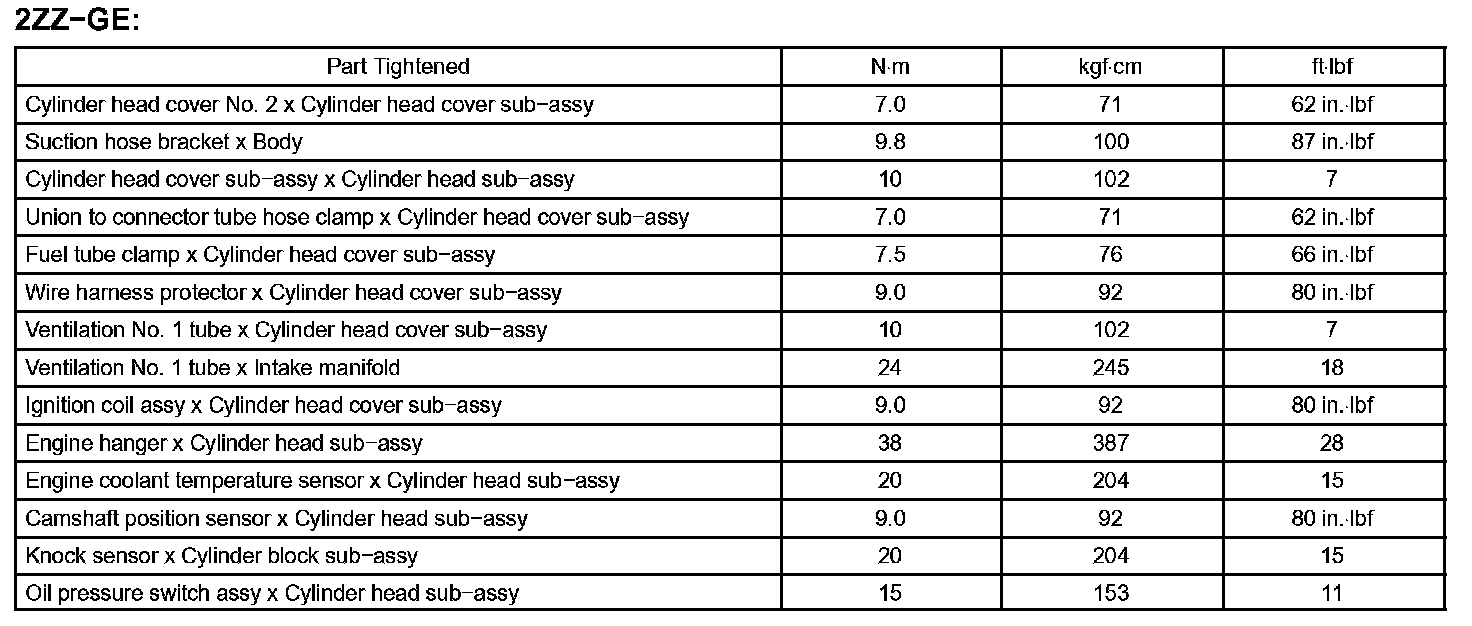

Engine Mechanical-Torque Specification (Part 2):

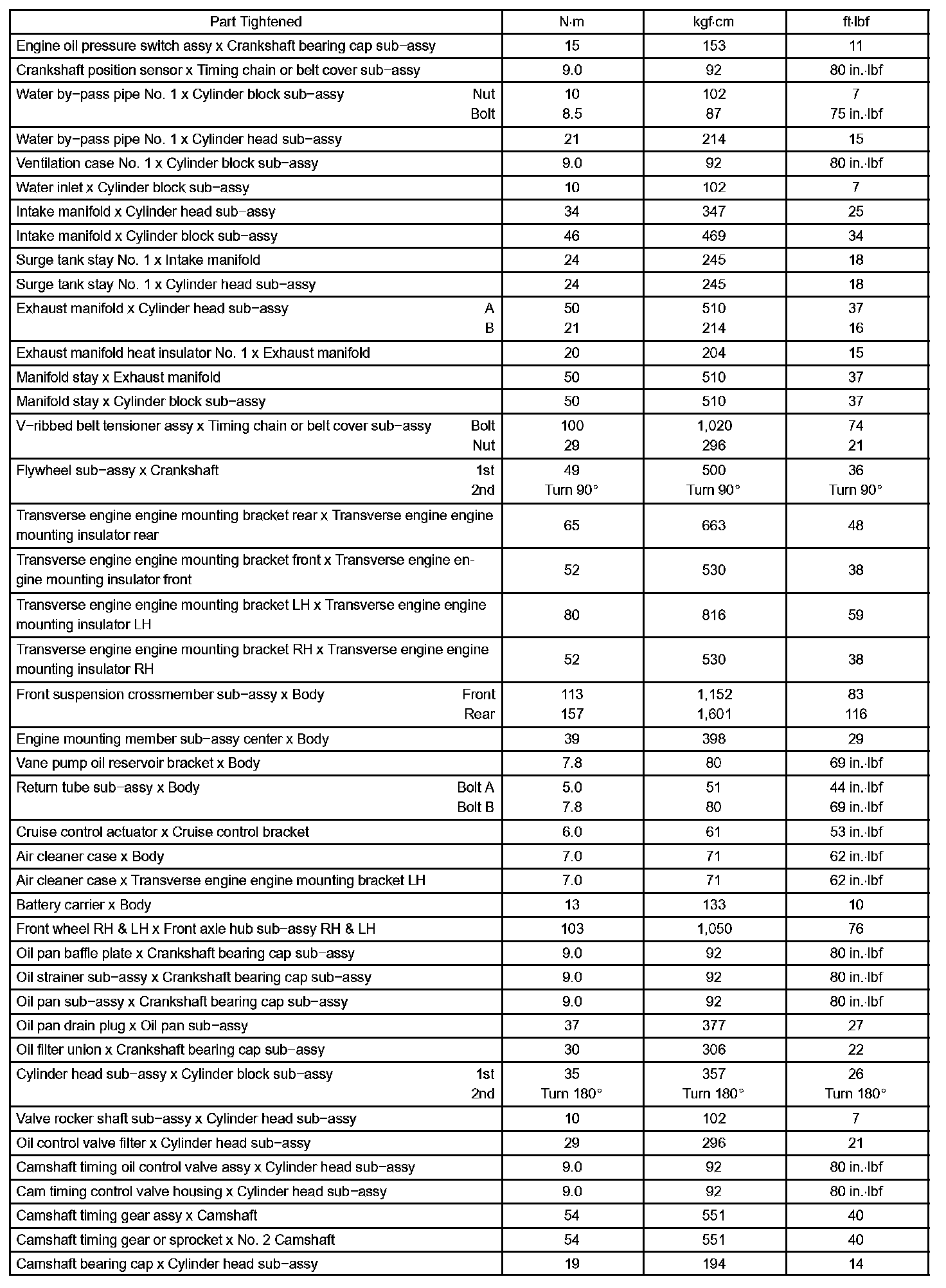

Engine Mechanical-Torque Specification (Part 3):
