System Specifications

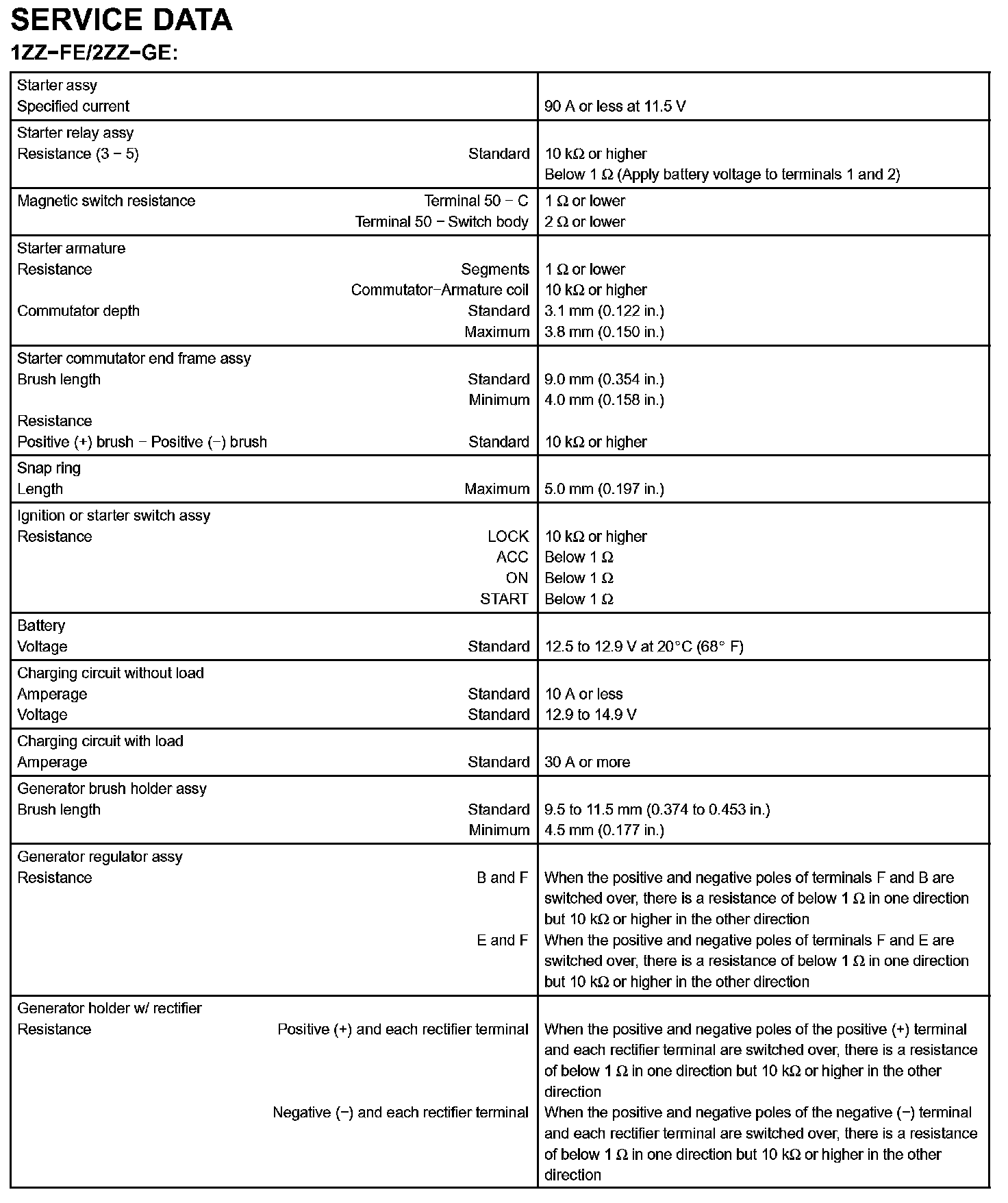

Starting & Charging-Service Data (Part 1):



Starting & Charging-Service Data (Part 2):
