Home >> Toyota >> 2006 >> Matrix 2WD L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> Diagnostic Aids >> How to Troubleshoot ECU Controlled Systems >> How To Proceed With Troubleshooting

How To Proceed With Troubleshooting

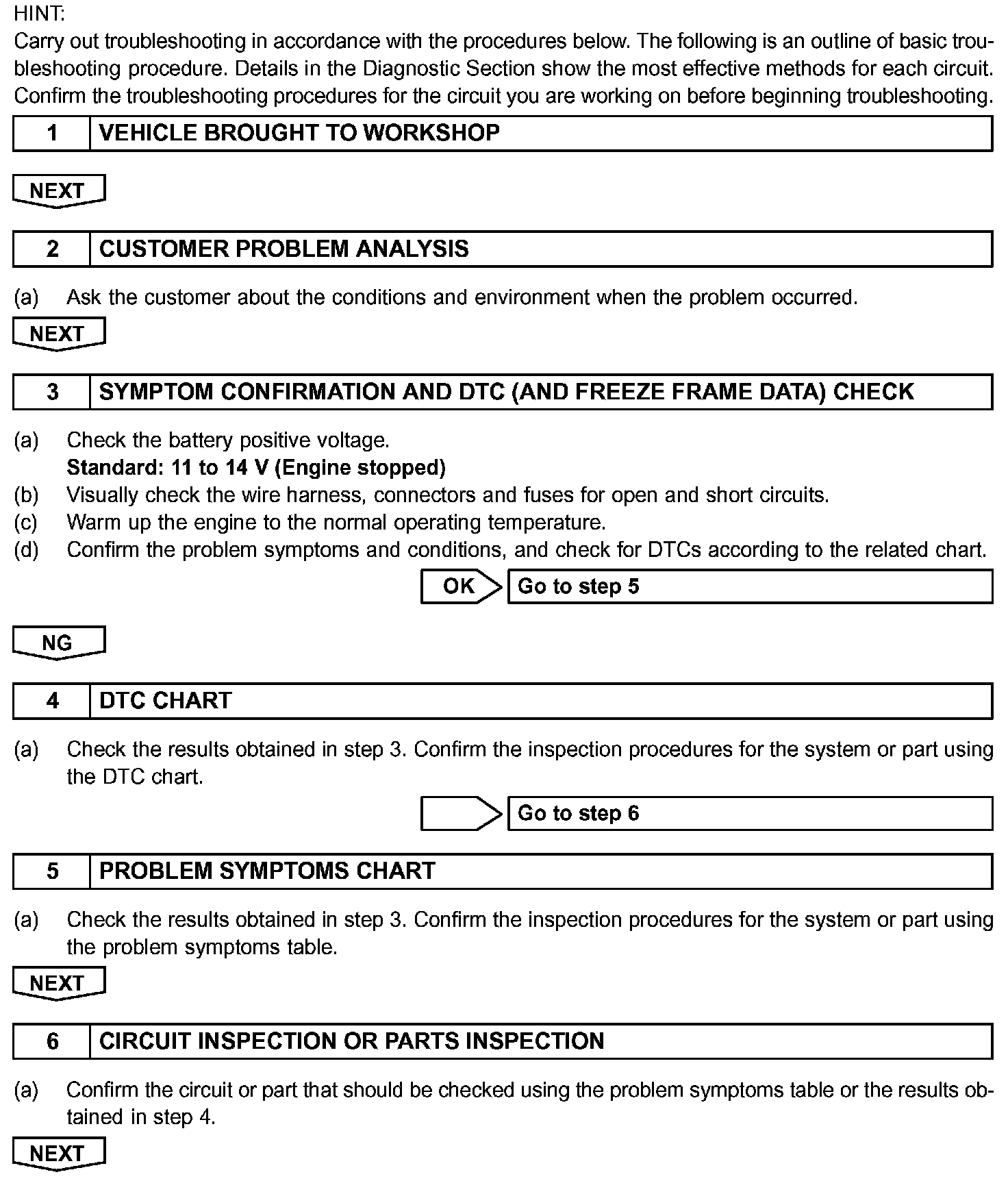

Steps 1 - 6:



Steps 7 - 8:
