Fuse Block: Locations

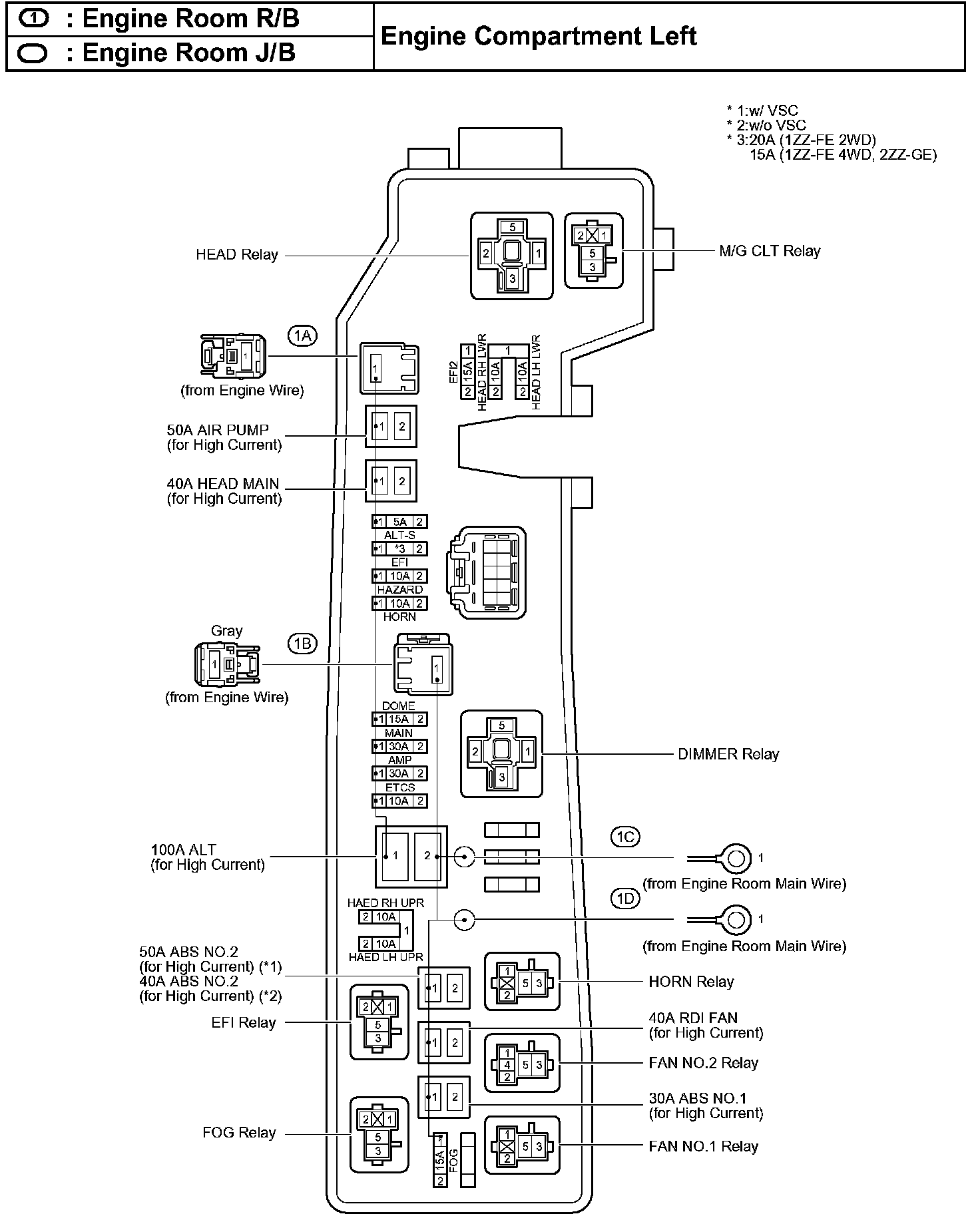

Engine Room R/B:

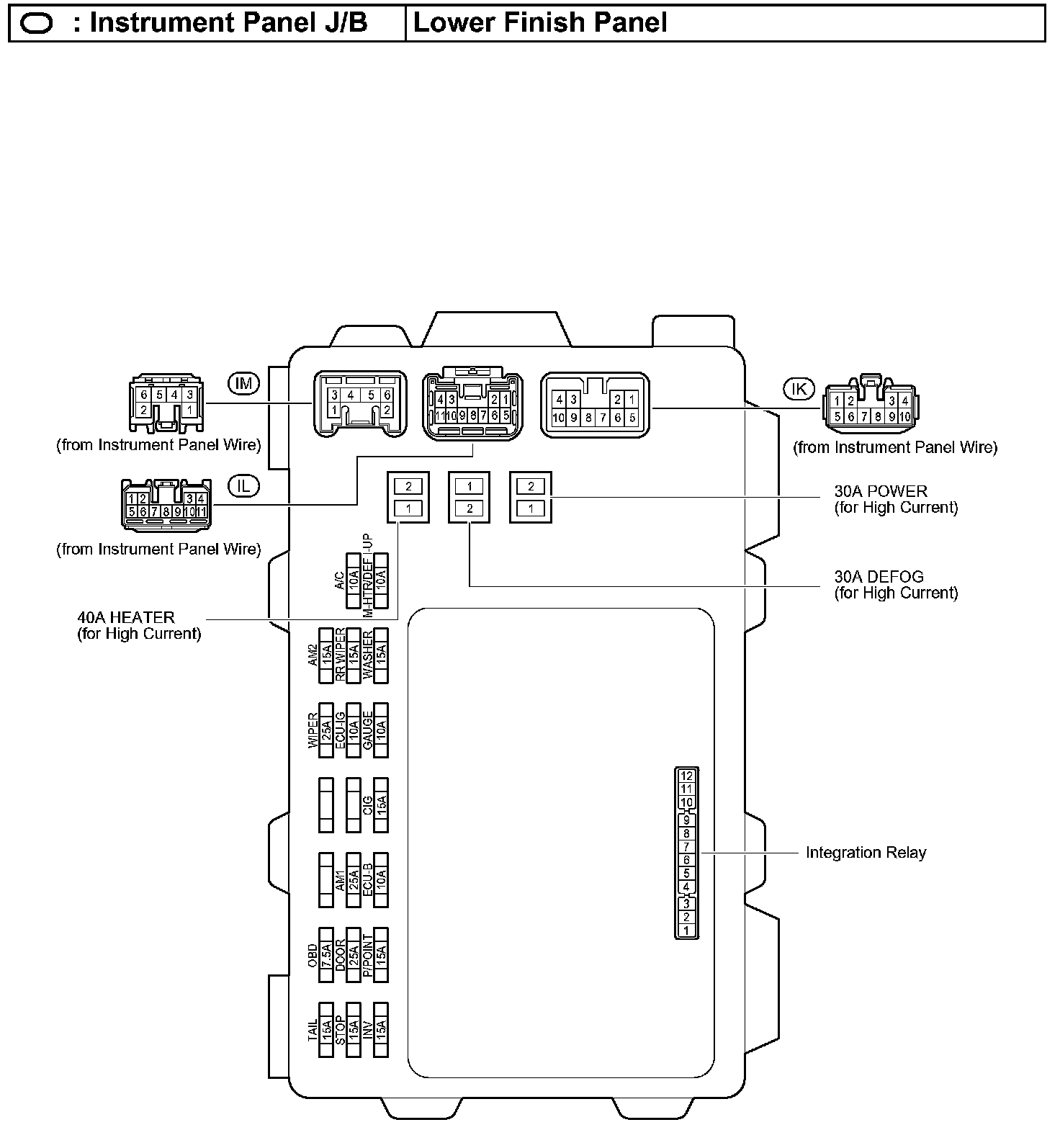

Instrument Panel J/B - Lower Finish Panel:

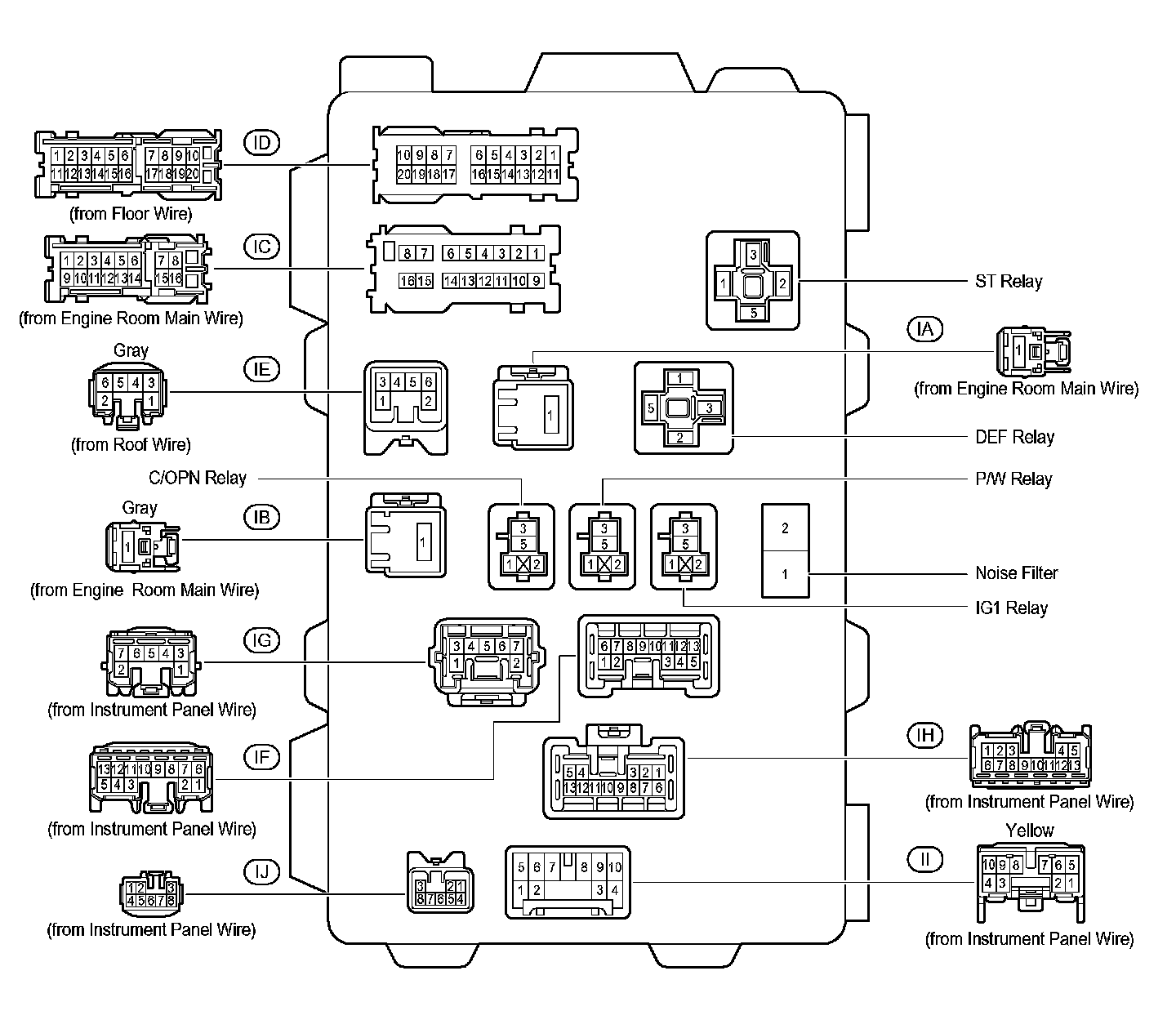

Instrument Panel J/B - Lower Finish Panel:

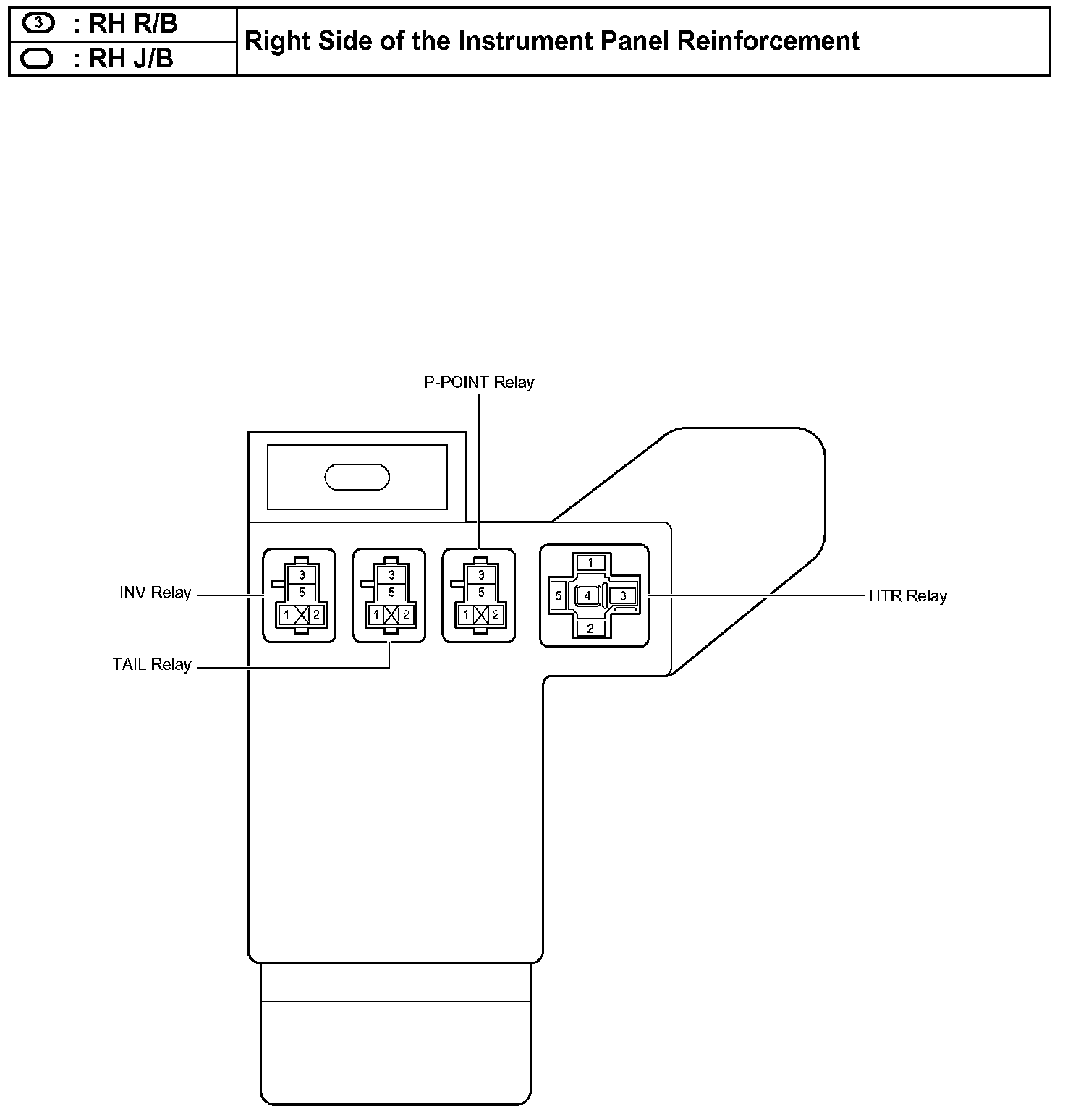

Instrument Panel Right Hand R/B:

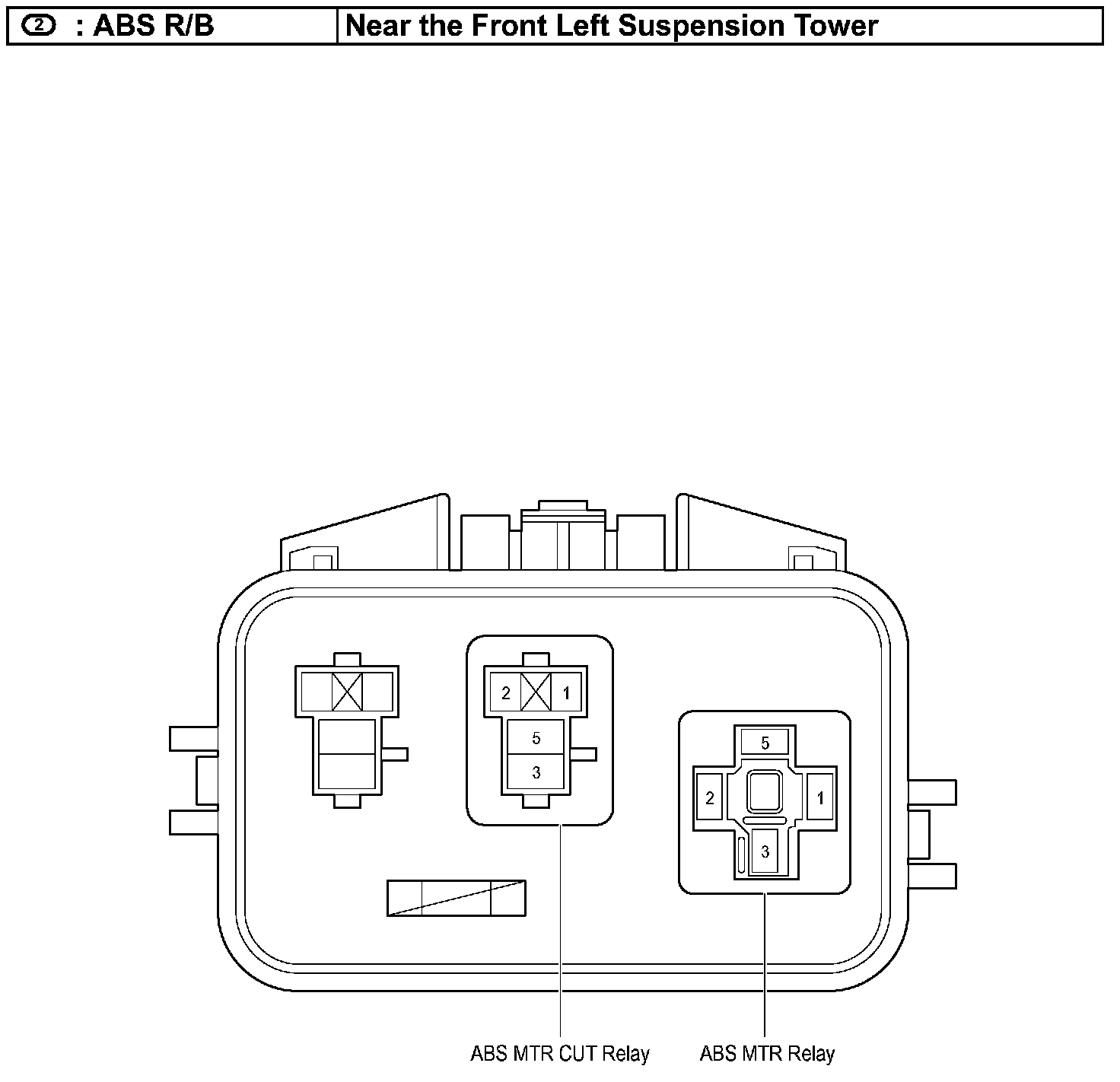

ABS R/B:

Details

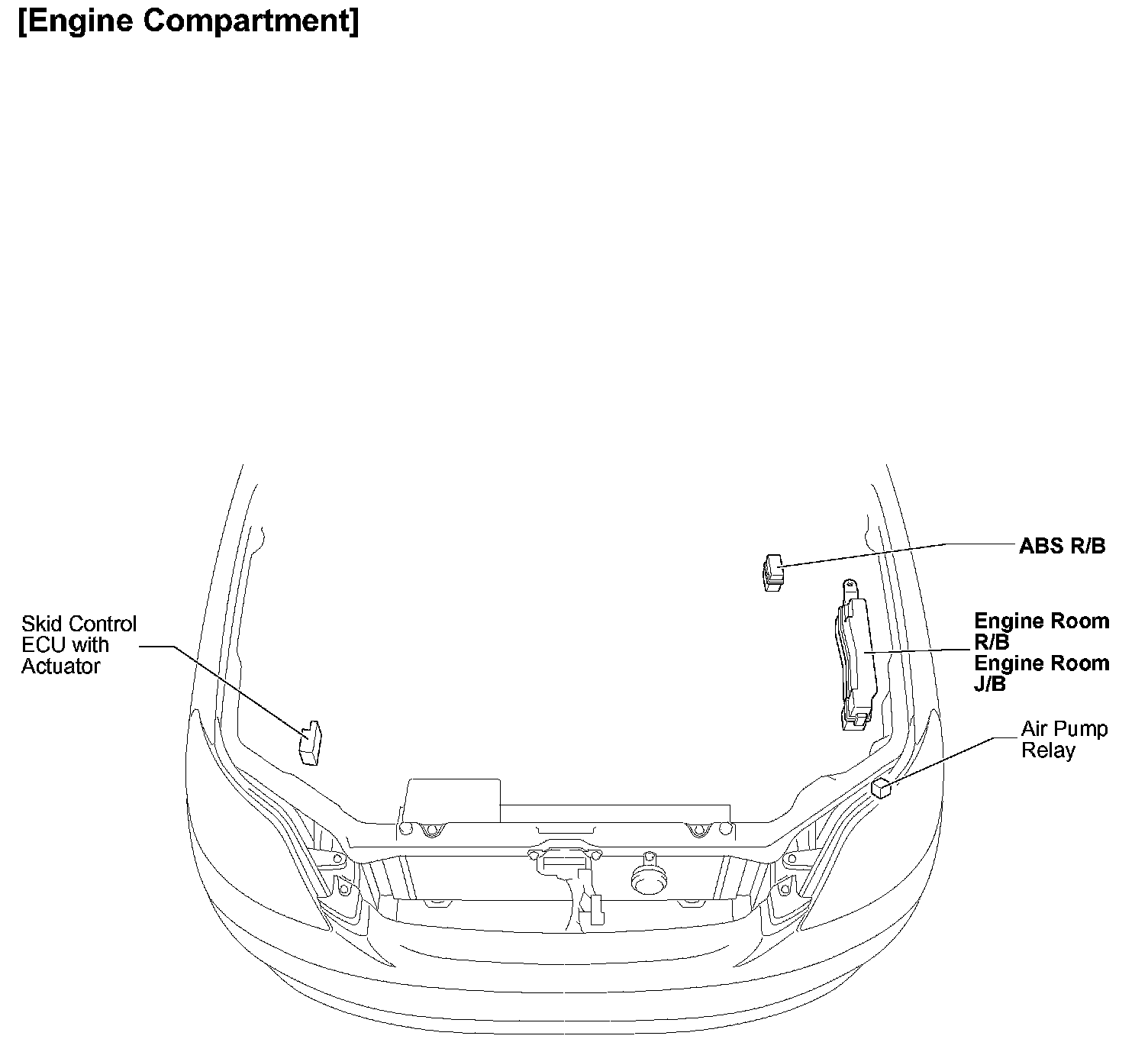

Engine Compartment:

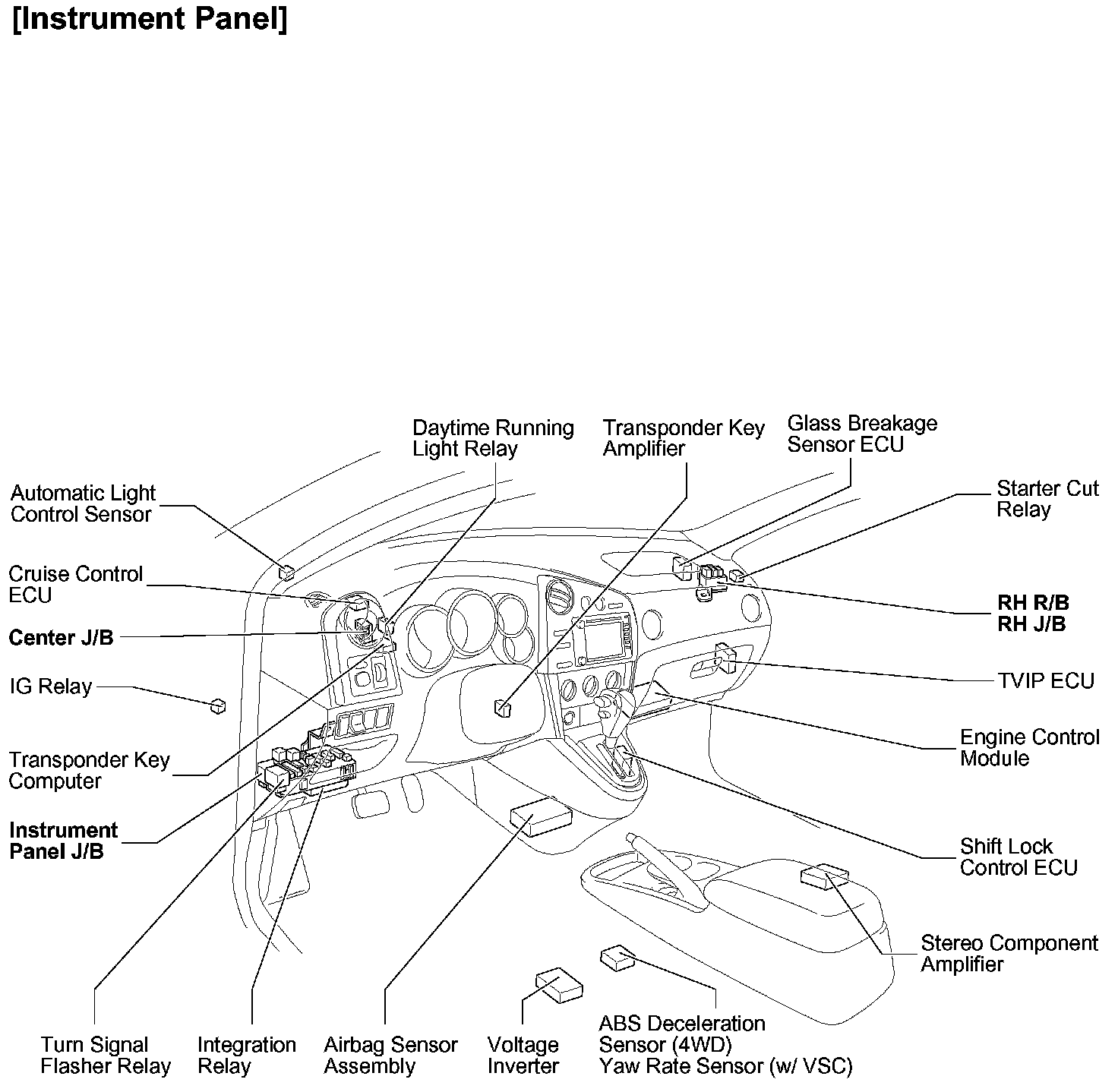

Instrument Panel:

Locations
