OEM System Circuits: Illumination: Notes

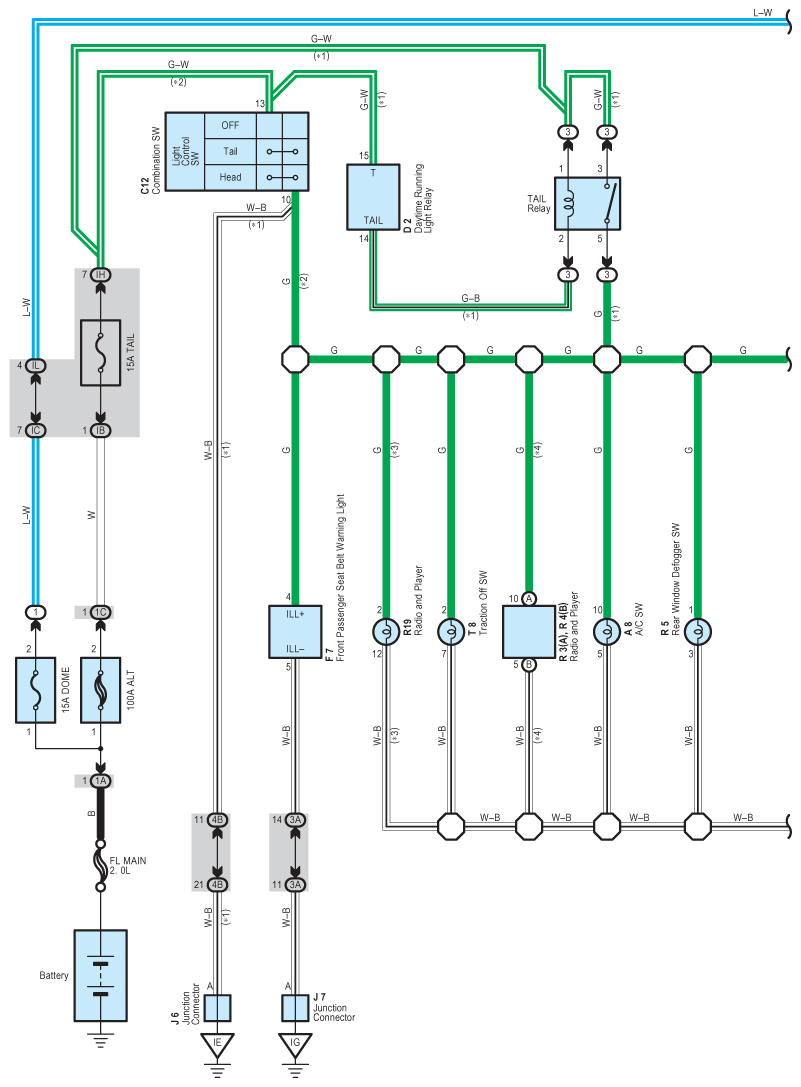

Fig 1: Illumination System Wiring Diagram (1 Of 2)
G08779681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

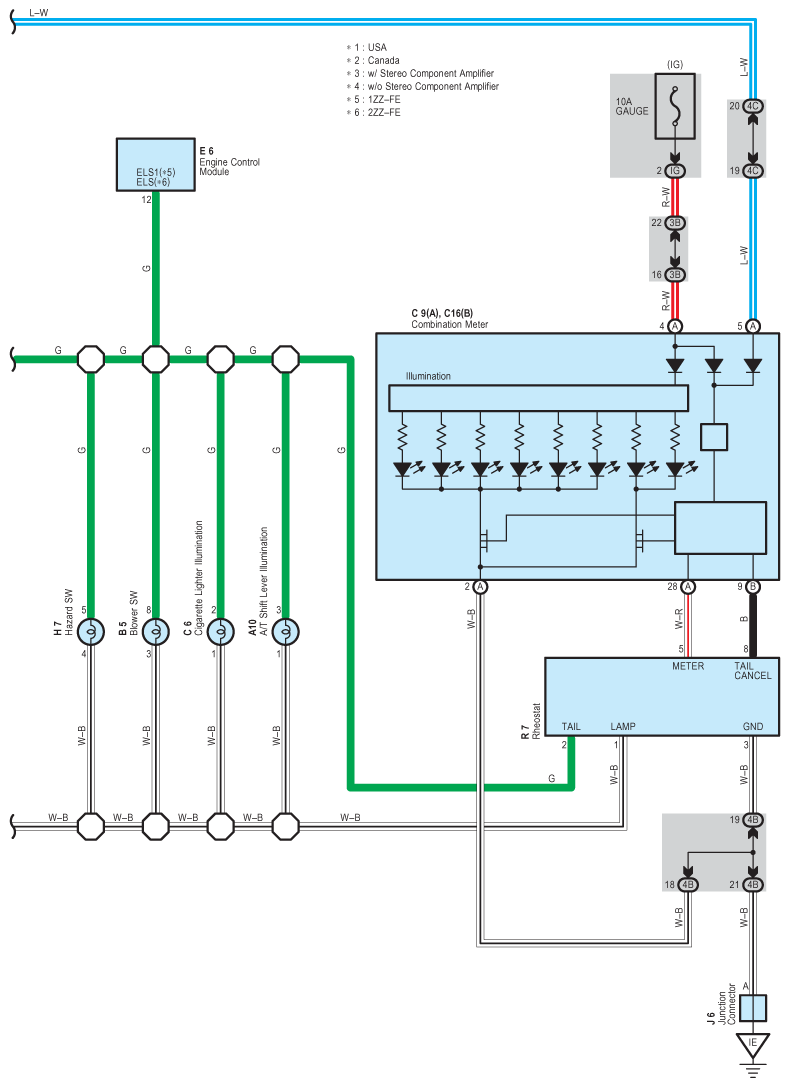

Fig 2: Illumination System Wiring Diagram (2 Of 2)
G08779682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
