Audio System with Stereo Component Amplifier: Notes

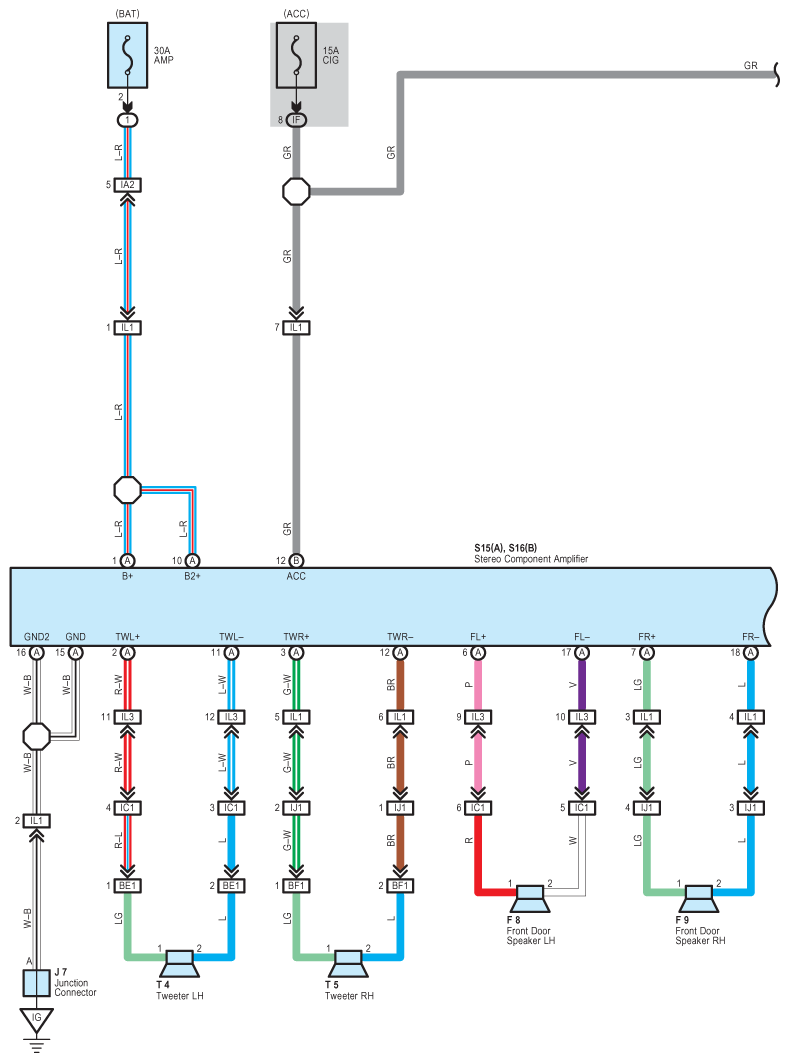

Fig 1: Audio System (With Stereo Component Amplifier) Wiring Diagram (1 Of 2)
G08779735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

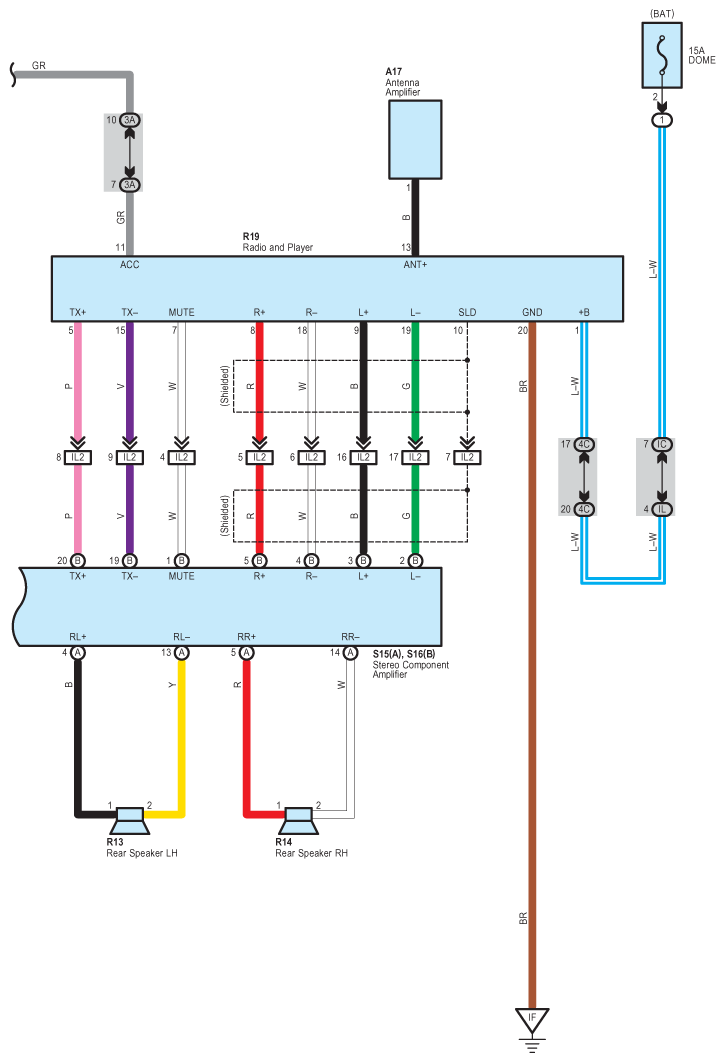

Fig 2: Audio System (With Stereo Component Amplifier) Wiring Diagram (2 Of 2)
G08779736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
