Impact Sensor
Impact Sensor

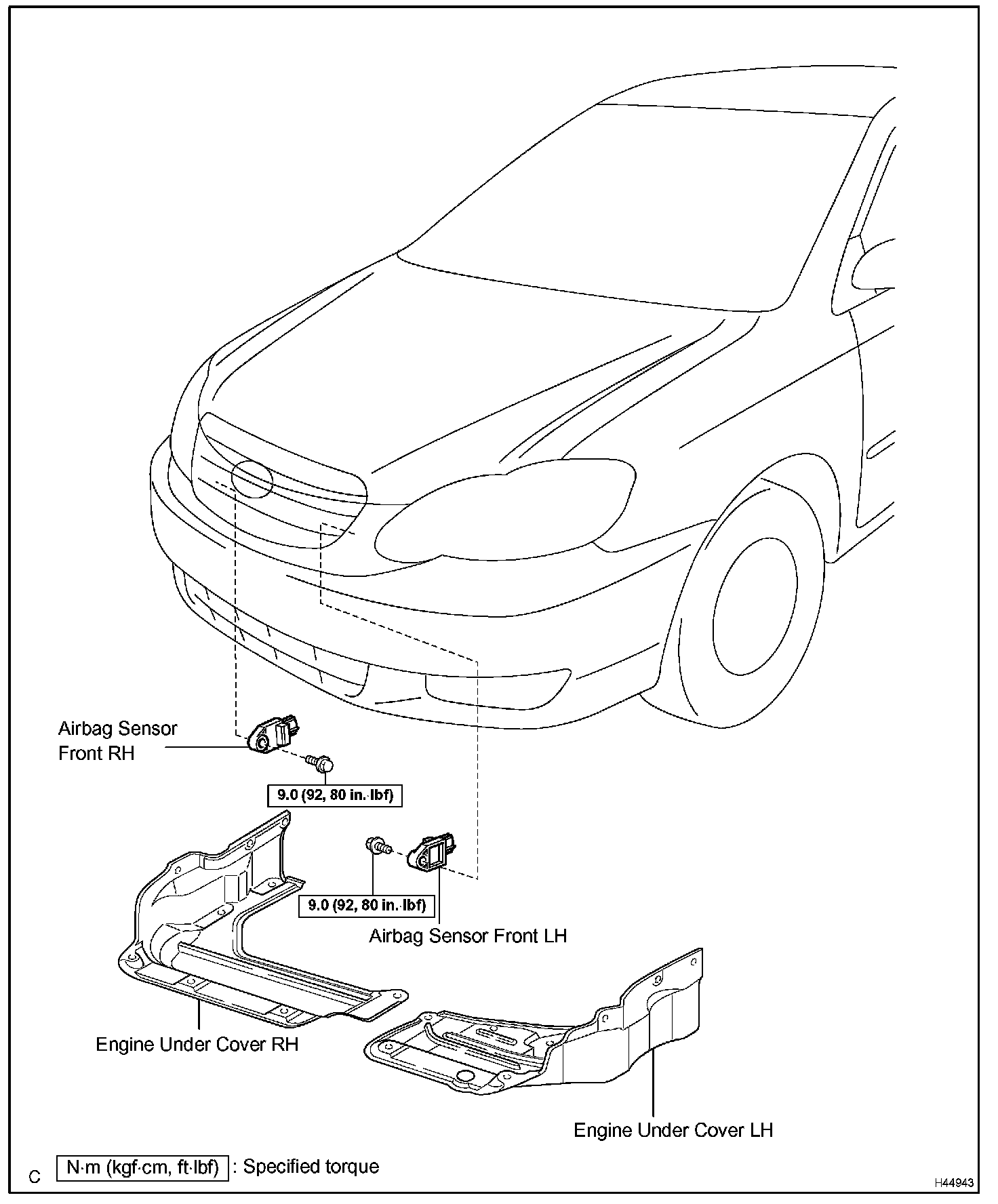

Air Bag Sensor Front LH:

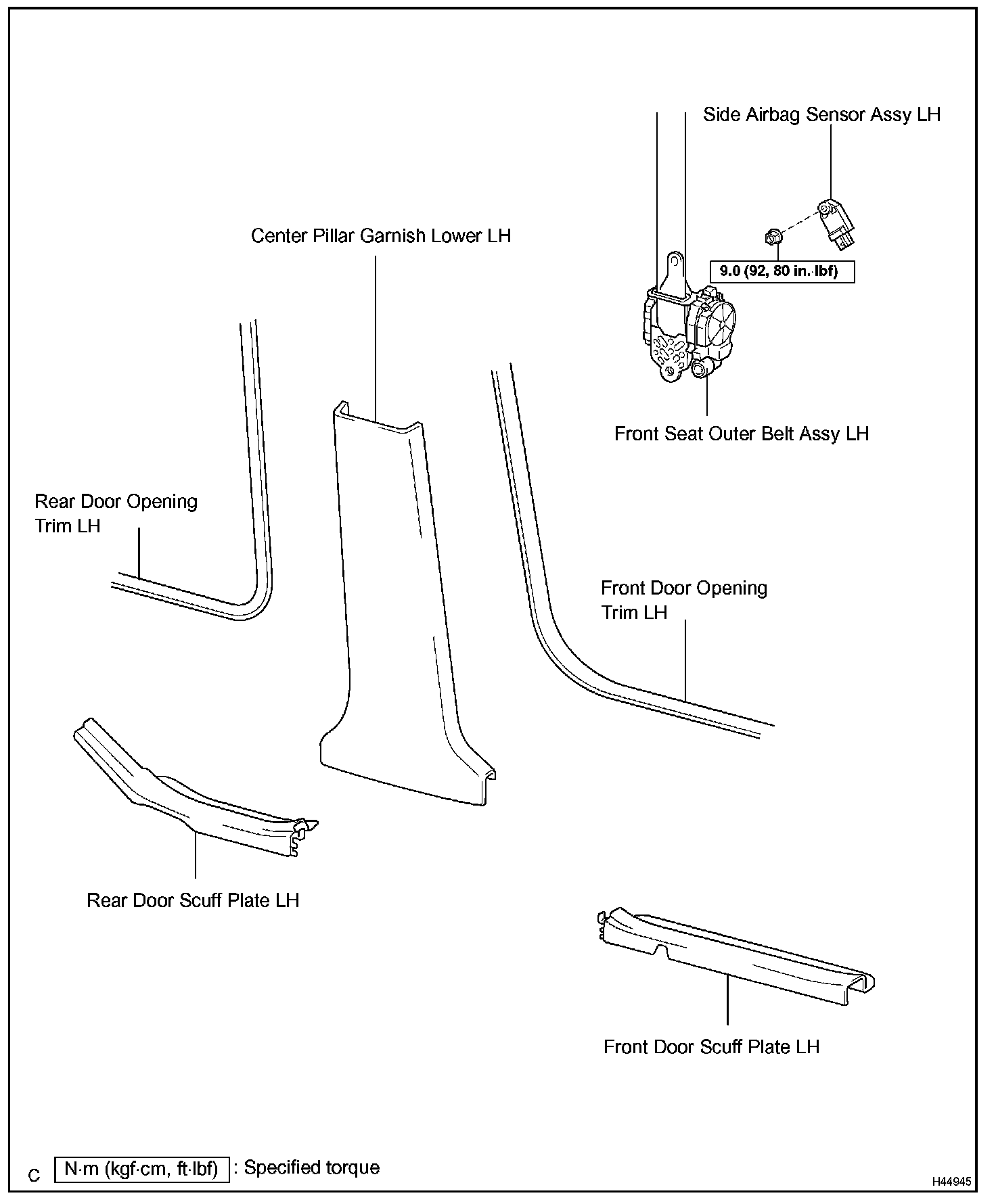

Side Bag Sensor Assy LH:

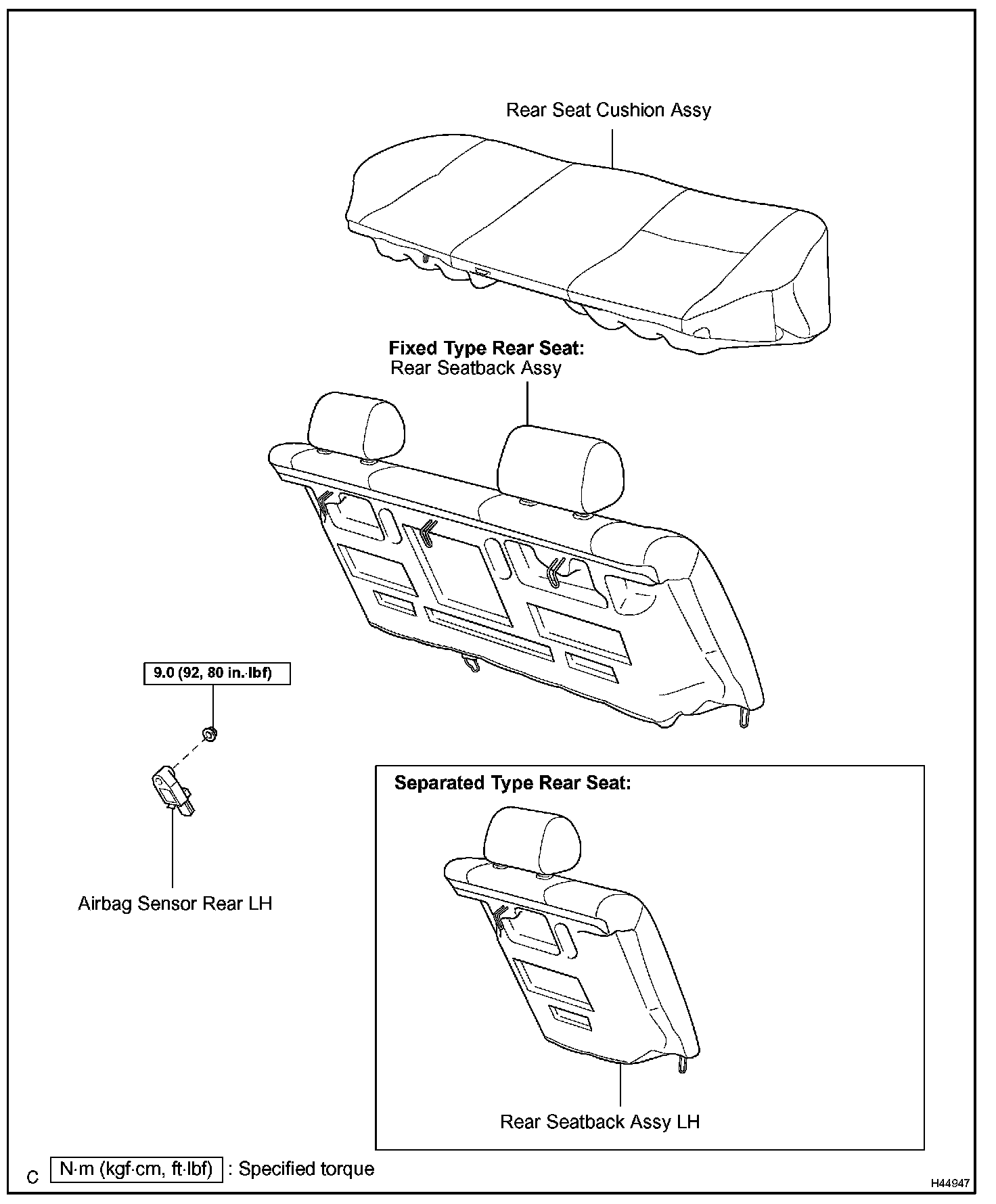

Air Bag Sensor Rear LH:

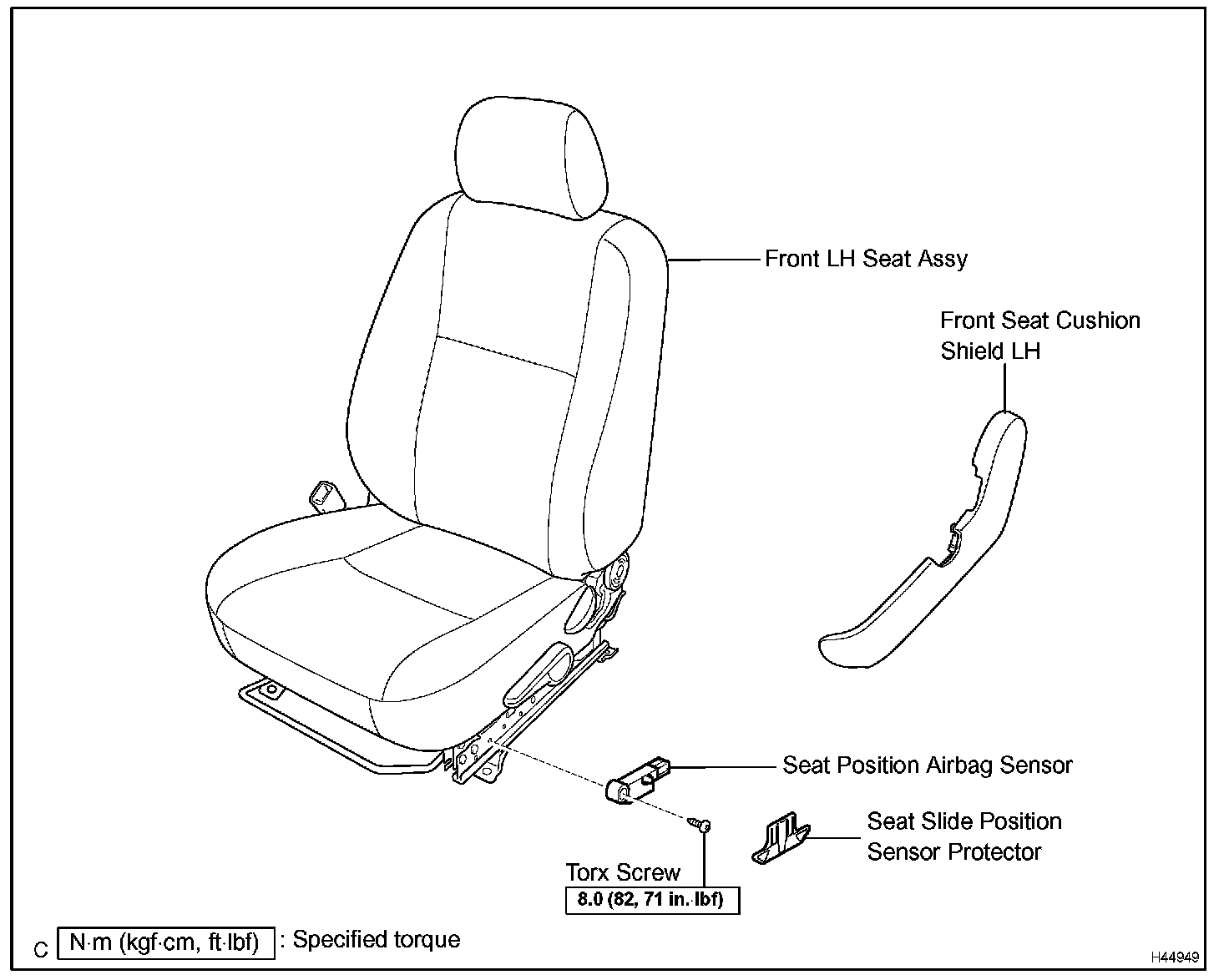

Seat Position Air Bag Sensor:
