Cruise Control Module
>>
Testing and Inspection
>>
Cruise Control System (W/ ETCS-i)
Cruise Control System (W/ ETCS-i)

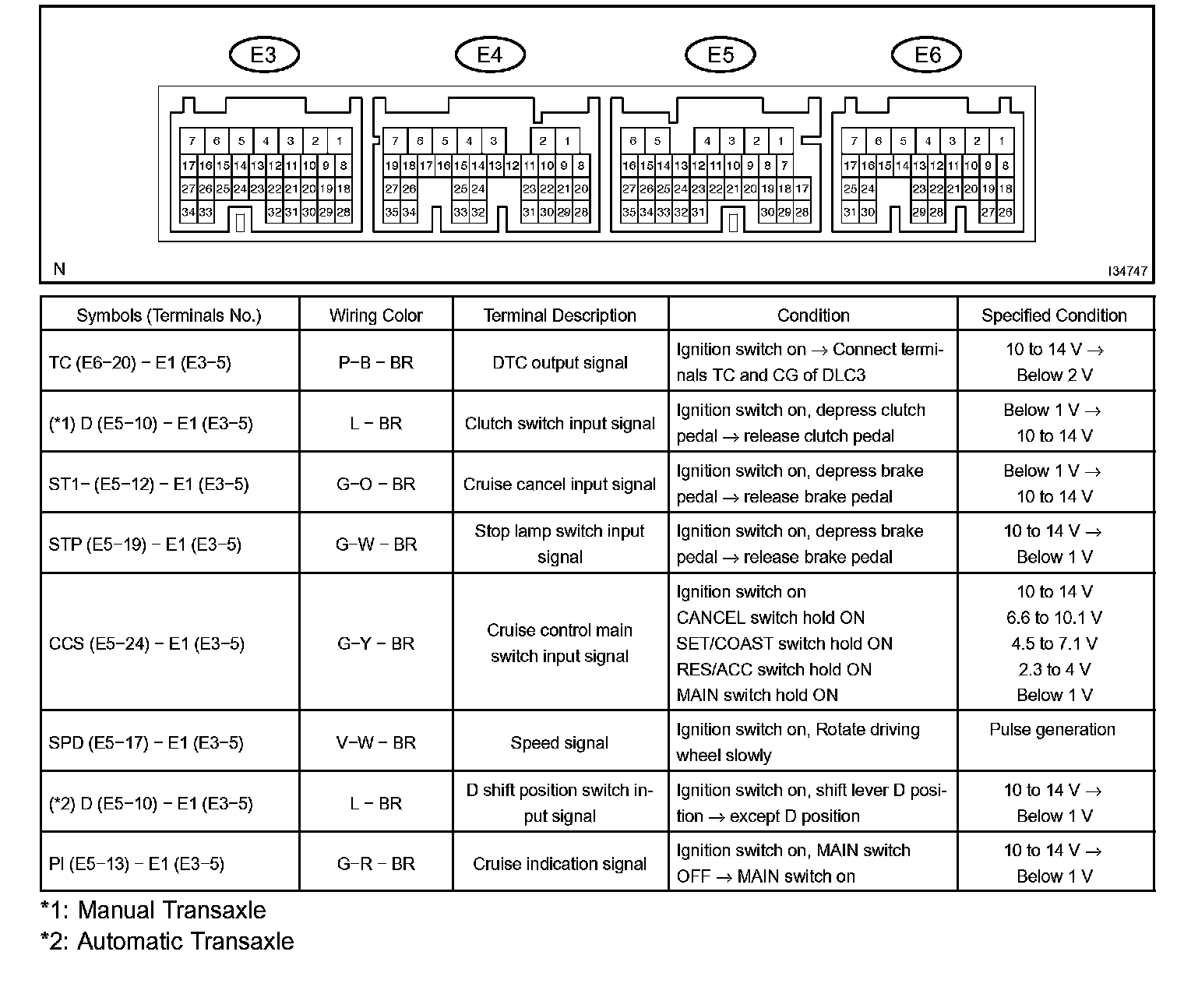

Terminals Of ECM/Pinouts:
