Inspection Procedure

  1. INSPECT FUSE (AM1, GAUGE, FR DOOR, ECU-IG, POWER)
    1. Remove the AM1, GAUGE, FR DOOR, ECU-IG fuses and POWER fuse from the instrument panel J/B assy.
    2. Measure the resistance of the fuse.

      Standard: Below 1 Ω

    1. NG: REPLACE FUSE
    2. OK
  2. INSPECT RELAY (Marking: IG1) (SEE  INSPECTION   )
    1. NG: REPLACE RELAY
    2. OK
  3. CHECK WIRE HARNESS (POWER WINDOW REGULATOR MASTER SWITCH ASSY - BATTERY AND BODY GROUND)
    1. Disconnect the P17 master switch connector.
    2. Measure the voltage or resistance of the wire harness side connector.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      P17-6 (B) - Body ground Power switch ON (IG) 10 to 14 V
      P17-7 (BW)- Body ground Always 10 to 14 V
      P17-11 (BDR) - Body ground Power switch ON (IG) 10 to 14 V
      P17-1 (E) - Body ground Always Below 1Ω
      Fig 1: Identifying Wire Harness (Power Window Regulator Master Switch Assembly - Battery And Body Ground)
      G02617416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: Go to step 4
    2. OK

      REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY

  4. CHECK WIRE HARNESS (POWER WINDOW REGULATOR MASTER SWITCH ASSY - INSTRUMENT PANEL J/B ASSY)
    1. Disconnect the P17 master switch connector.
    2. Disconnect the 1G and 1H J/B connectors.
    3. Measure the resistance of the wire harness side connectors.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      P17-11 (BDR)-1G-6 Below 1 Ω
      P17-7 (BW)-1H-10 Below 1 Ω
      P17-6 (B)-1H-11 Below 1 Ω
      P17-11 (BDR) or 1G-6 - Body ground 10 kΩ or higher
      P17-7 (BW) or 1 H-10 - Body ground 10 kΩ or higher
      P17-6 (B) or 1H-11 - Body ground 10 kΩ or higher

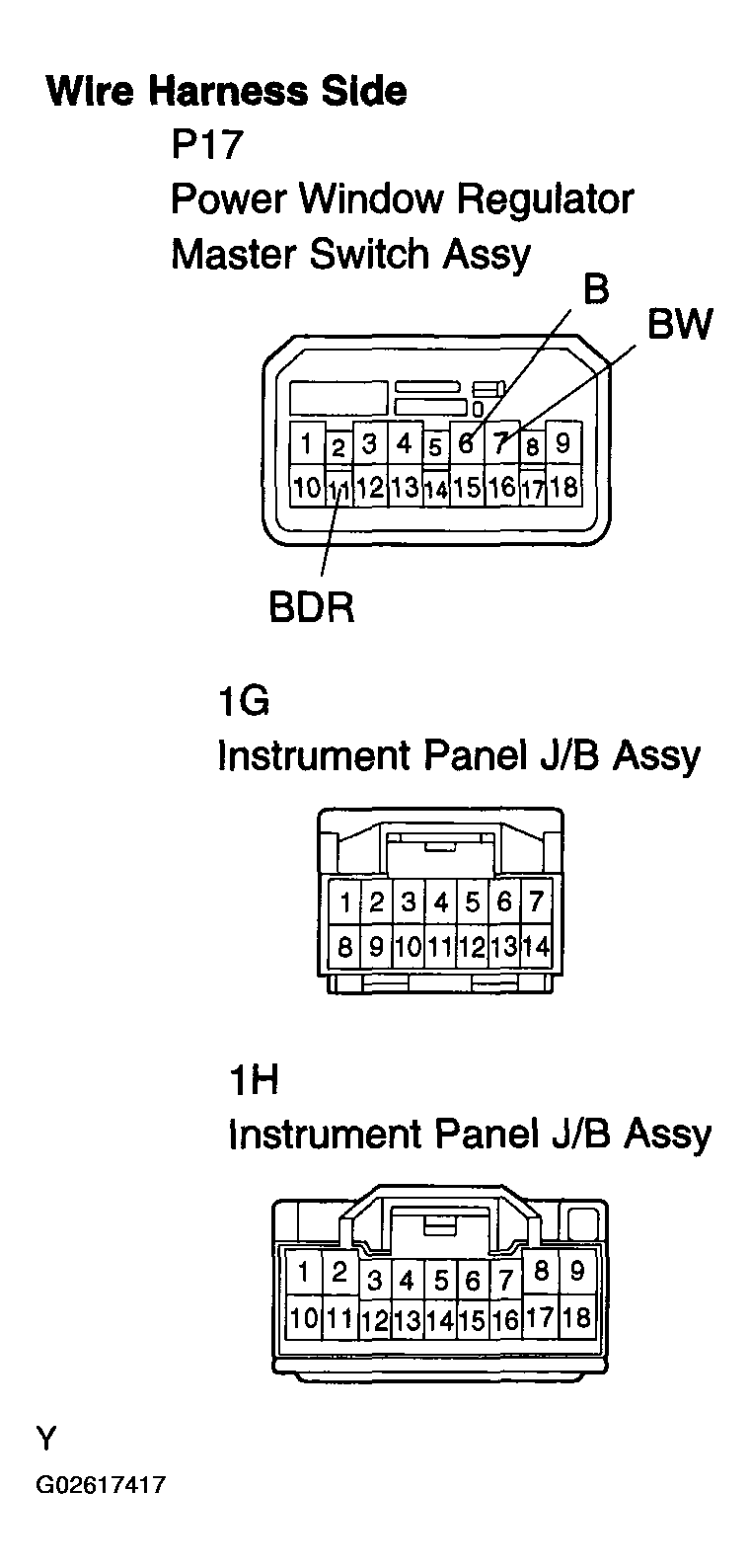

      Fig 2: Identifying Wire Harness (Power Window Regulator Master Switch Assembly - Instrument Panel J/B Assembly)
      G02617417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK
  5. CHECK WIRE HARNESS (INSTRUMENT PANEL J/B ASSY - BODY GROUND)
    1. Disconnect the 1B and 1E J/B connectors.
    2. Measure the voltage and resistance of the wire harness sire connectors.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      1B-1 - Body ground Always 10 to 14 V
      1E-17 - Body ground Always Below 1 Ω

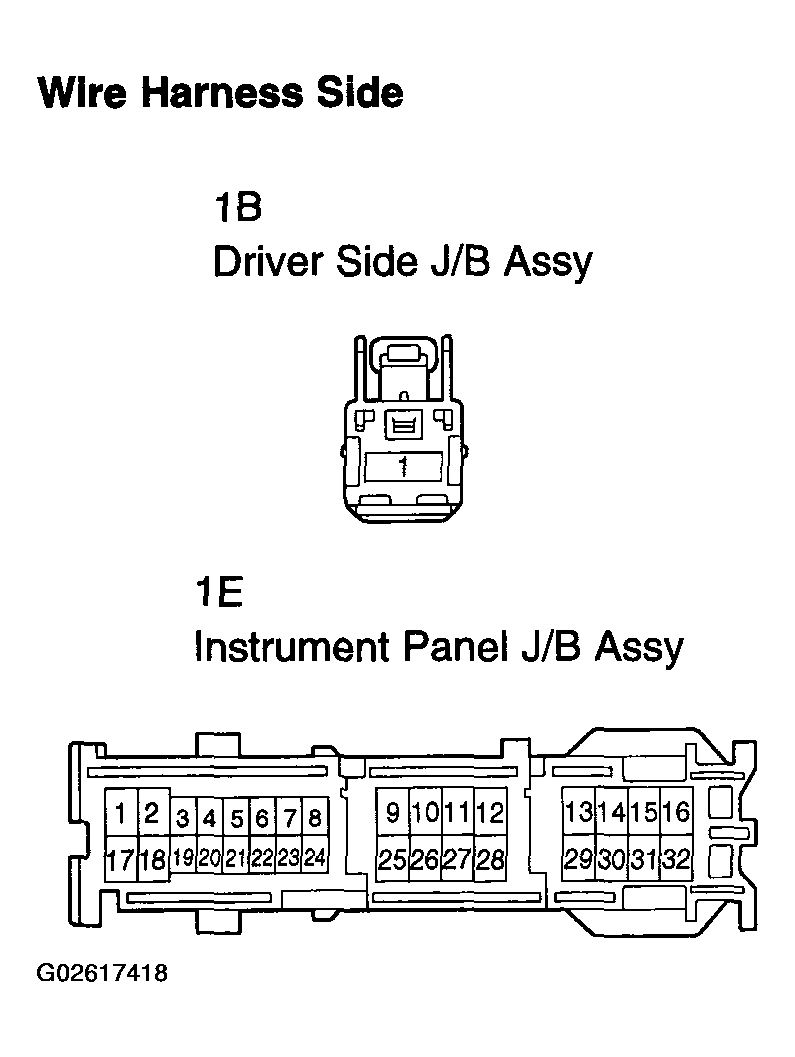

      Fig 3: Identifying Wire Harness (Instrument Panel J/B Assembly - Body Ground)
      G02617418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK
  6. CHECK BASIC FUNCTION OF PUSH BUTTON START SYSTEM (SEE  ON-VEHICLE INSPECTION  )
    1. Check that the push button start system operates normally.

      OK: Push button start system operates normally.

    1. NG: Go to PUSH BUTTON START SYSTEM (SEE  HOW TO PROCEED WITH TROUBLESHOOTING  )
    2. OK

      REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSY
