Power Window Switch: Testing and Inspection

INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

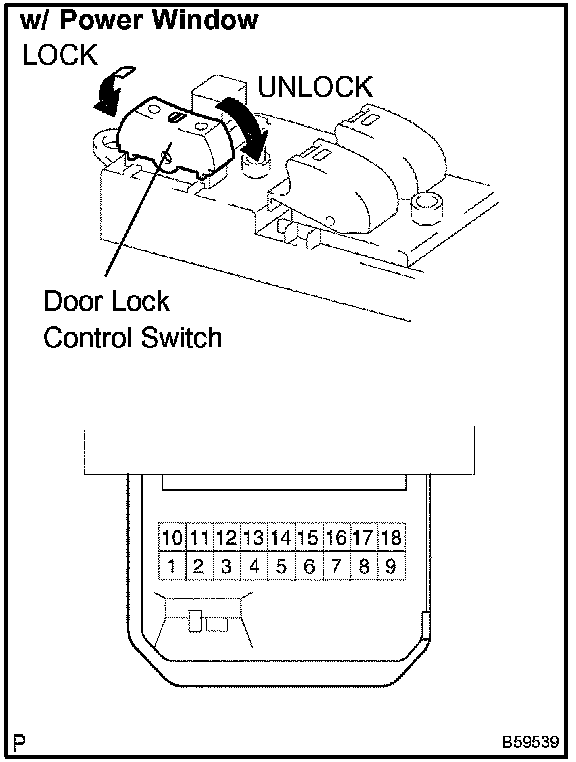

a. w/ Power window:

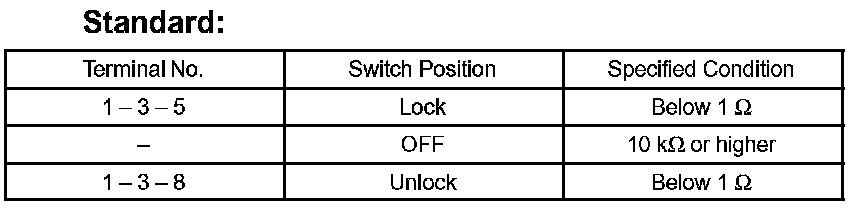

Measure the resistance of the door lock control switch.
If the result is not as specified, replace the switch.

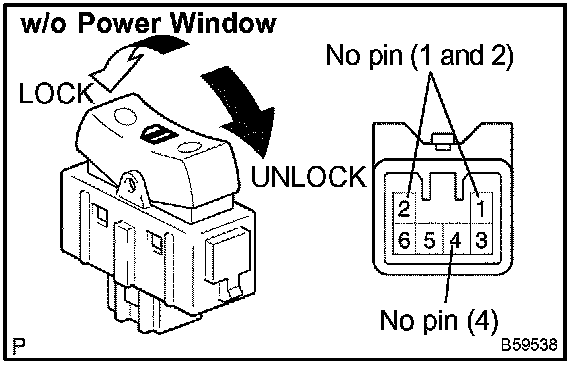

b. w/o Power window:

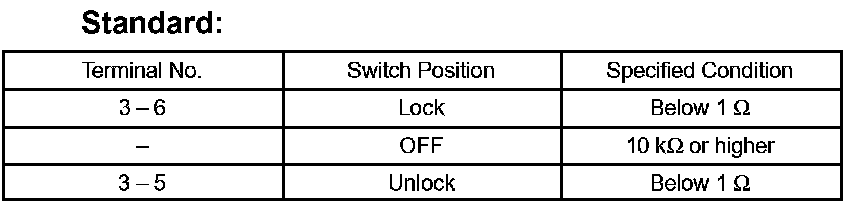

Measure the resistance of the door lock control switch.
If the result is not as specified, replace the switch.







INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY

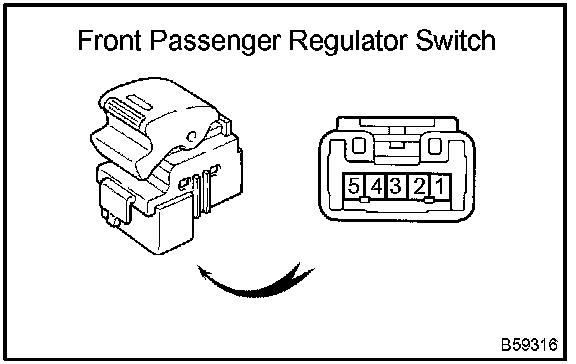

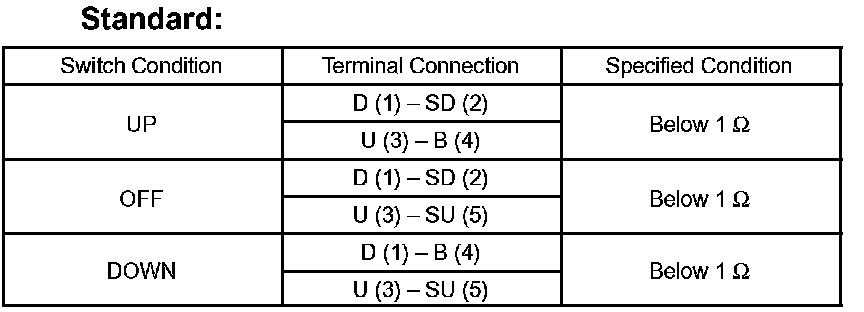

a. Measure the resistance of the front passenger regulator switch.
If the result is not as specified, replace the regulator switch.







INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY REAR

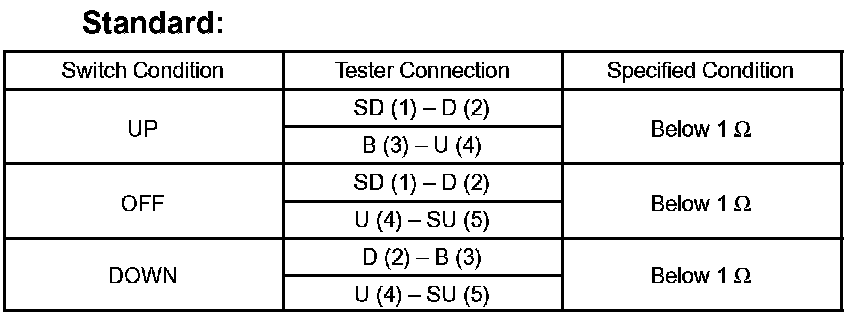

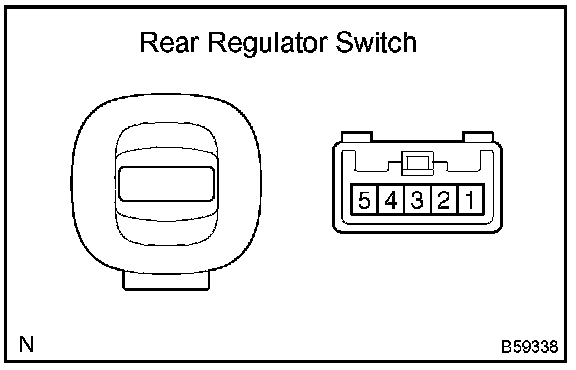

a. Measure the resistance of the rear regulator switch.
If the result is not as specified, replace the regulator switch.
