Engine Tightening Specifications

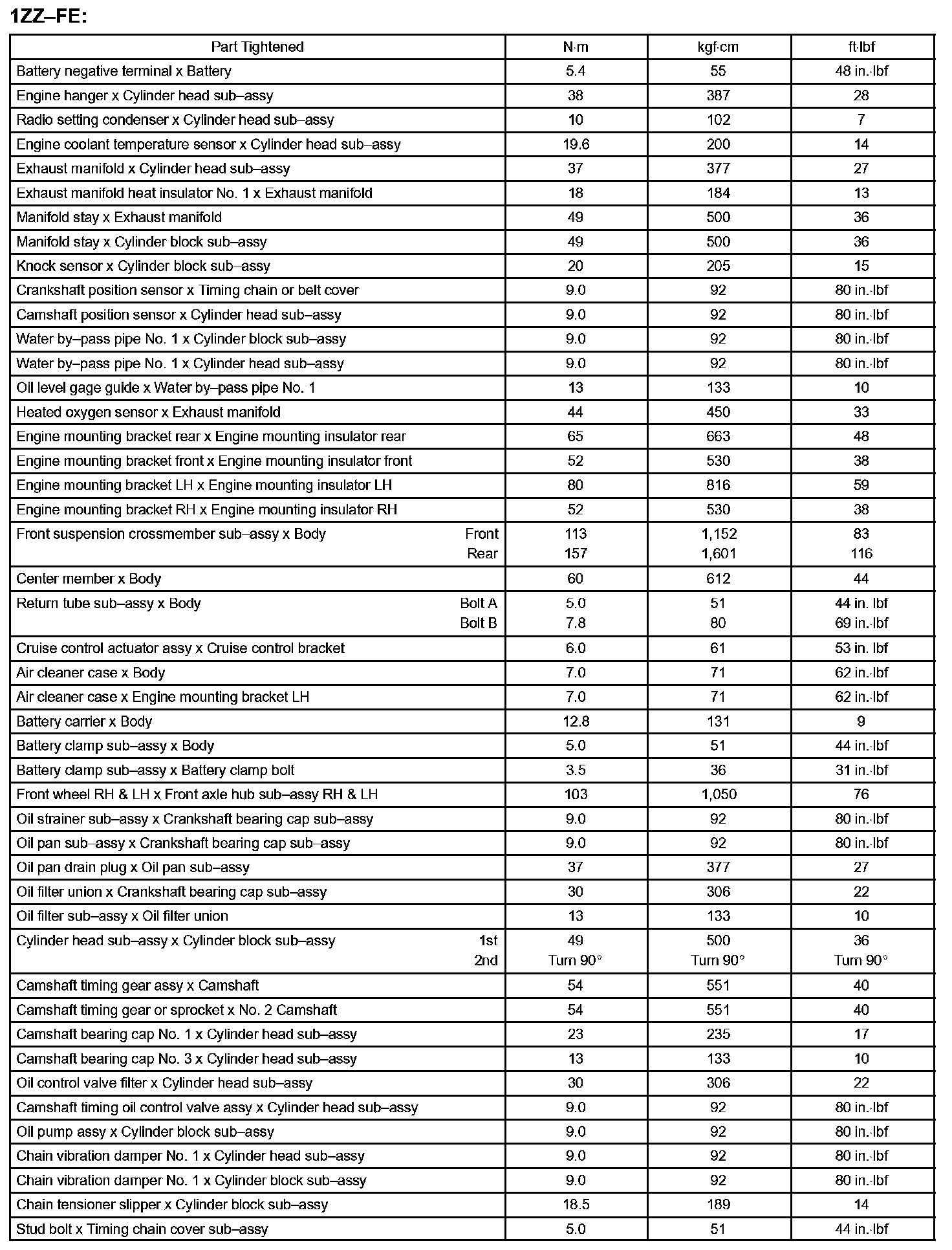

Engine Control System - Torque Specification:



Engine Control System - Torque Specification:

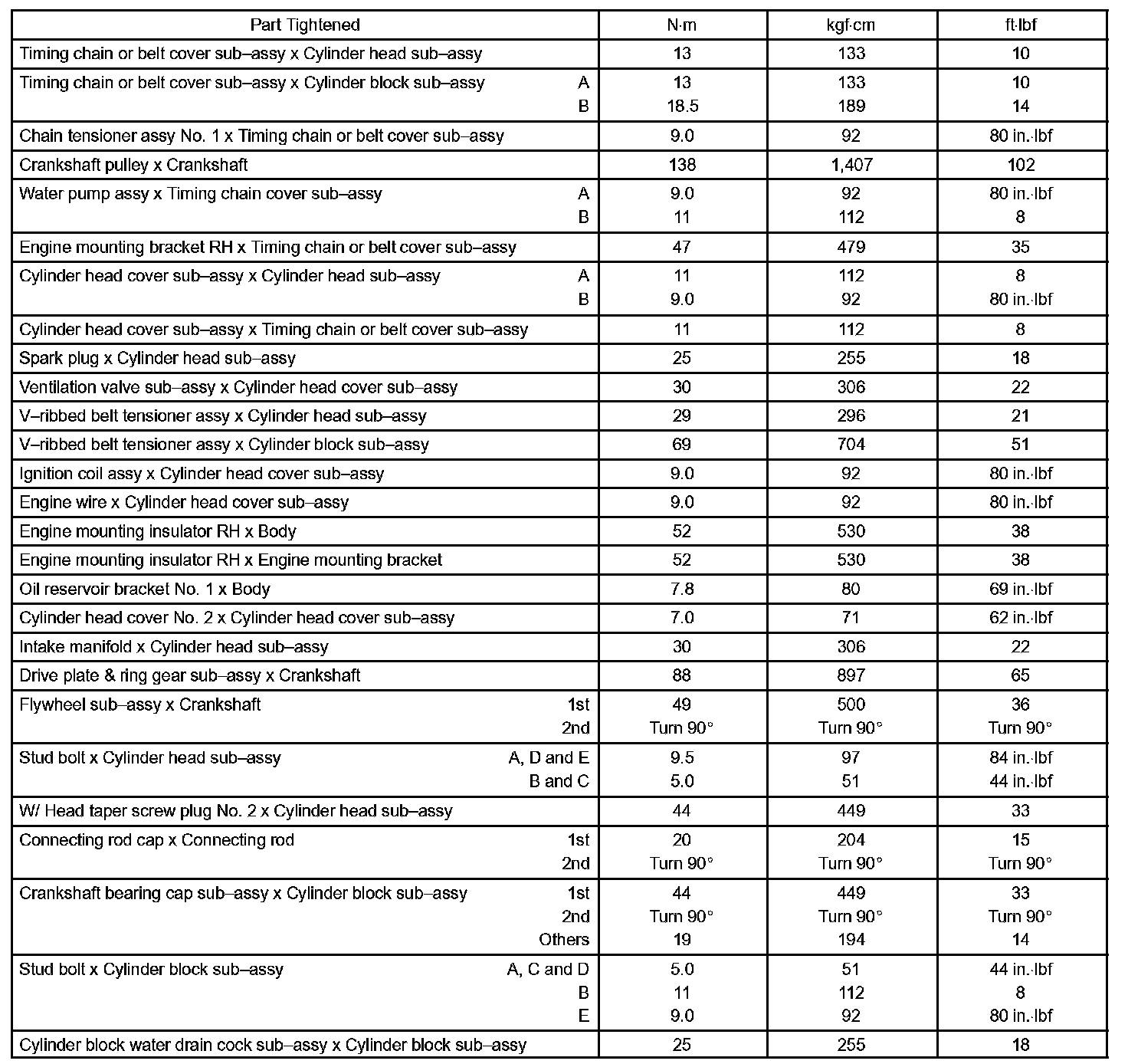

Engine Mechanical - Torque Specification Part 1:



Engine Mechanical - Torque Specification Part 2:
