Oil Pump: Components

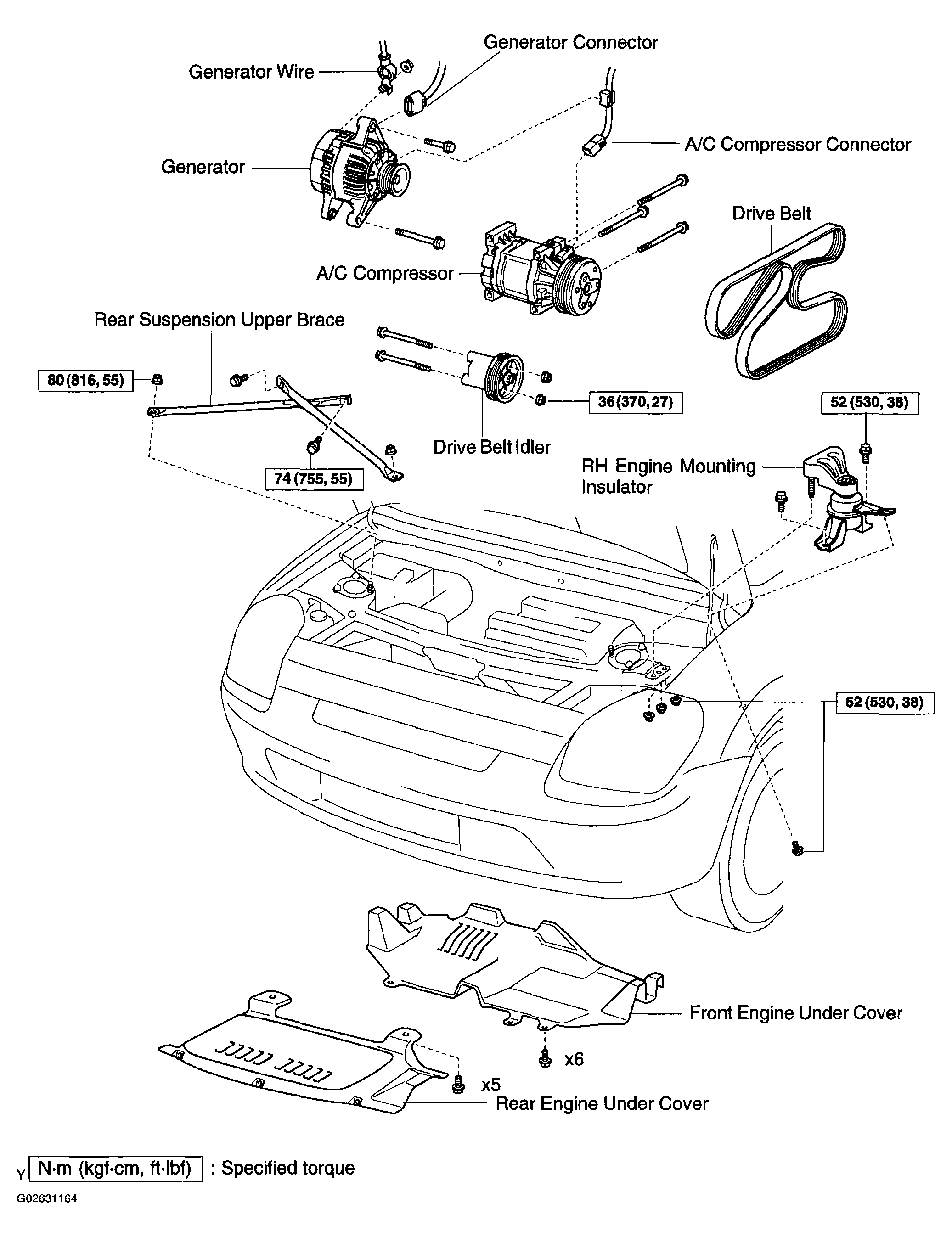

Fig 1: Exploded View Of Oil Pump Components (1 Of 3)
G02631164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Exploded View Of Oil Pump Components (2 Of 3)
G02631165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Exploded View Of Oil Pump Components (3 Of 3)
G02631166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
