Power Mirror Control System (W-Memory)
>>
System Diagram
>>
Signal Communication Table:
Signal Communication Table:

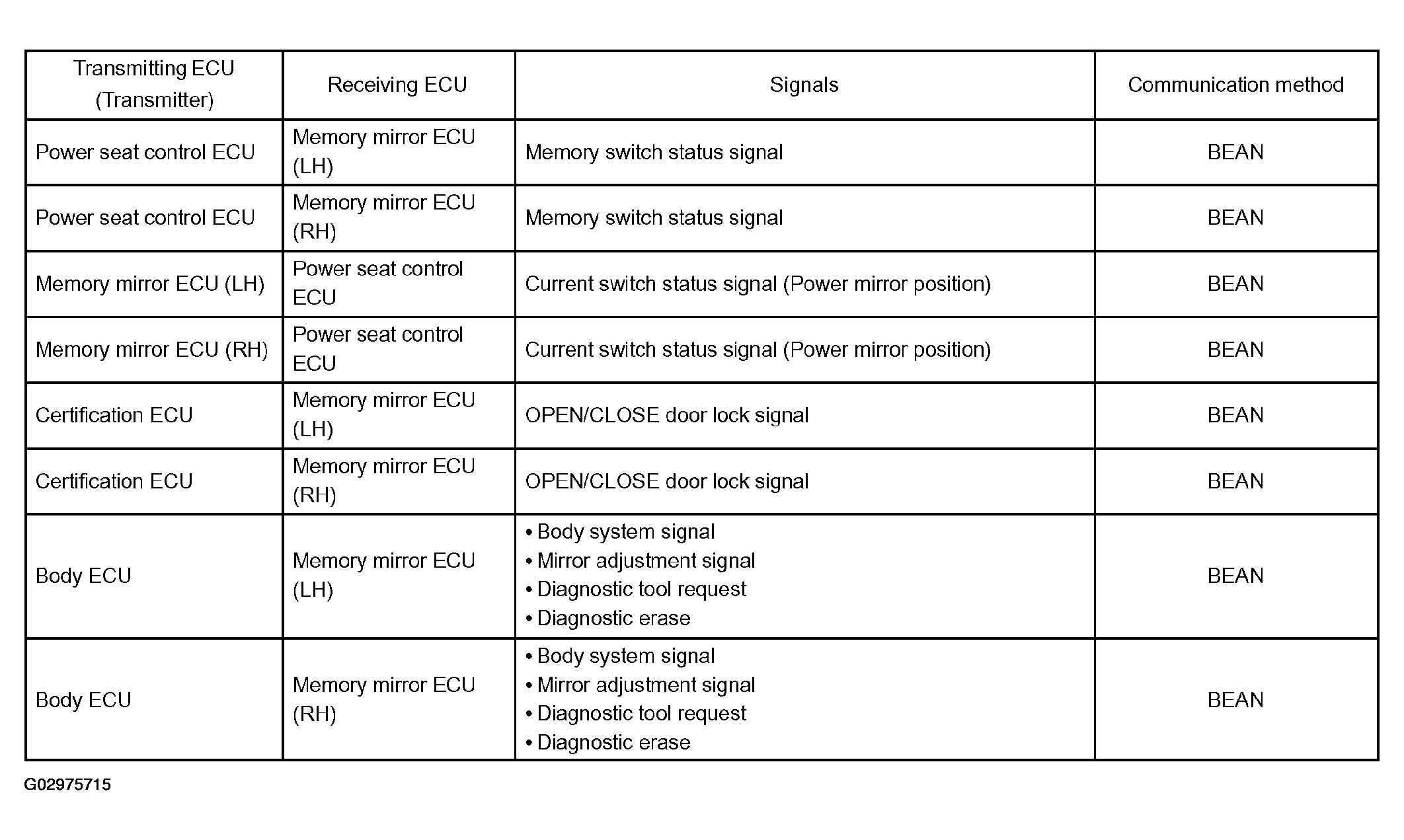

Fig 1: Signal Communication Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
