System Diagram: Notes

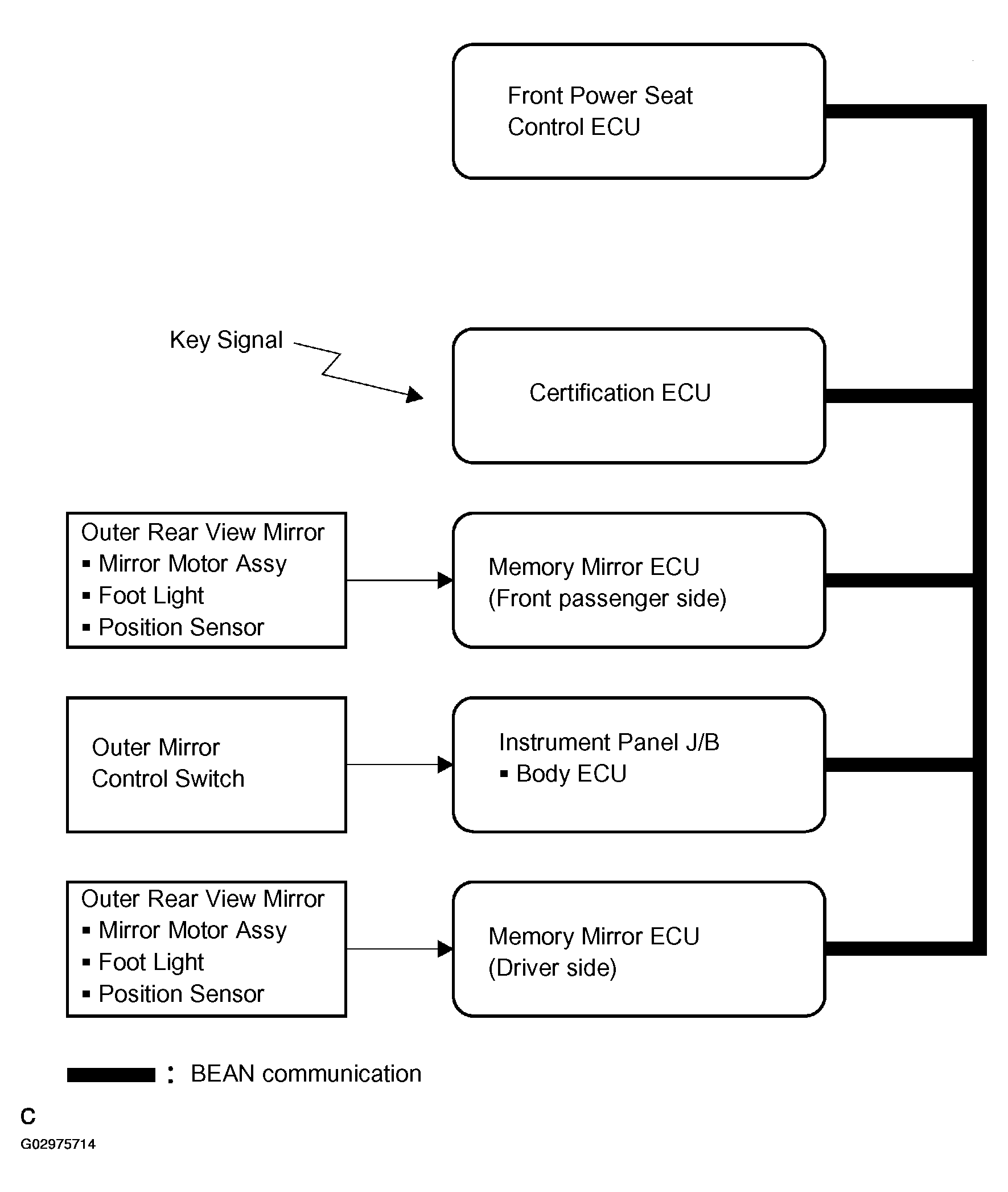

Fig 1: Power Mirror Control System Diagram

G02975714

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
