On-Vehicle Repair

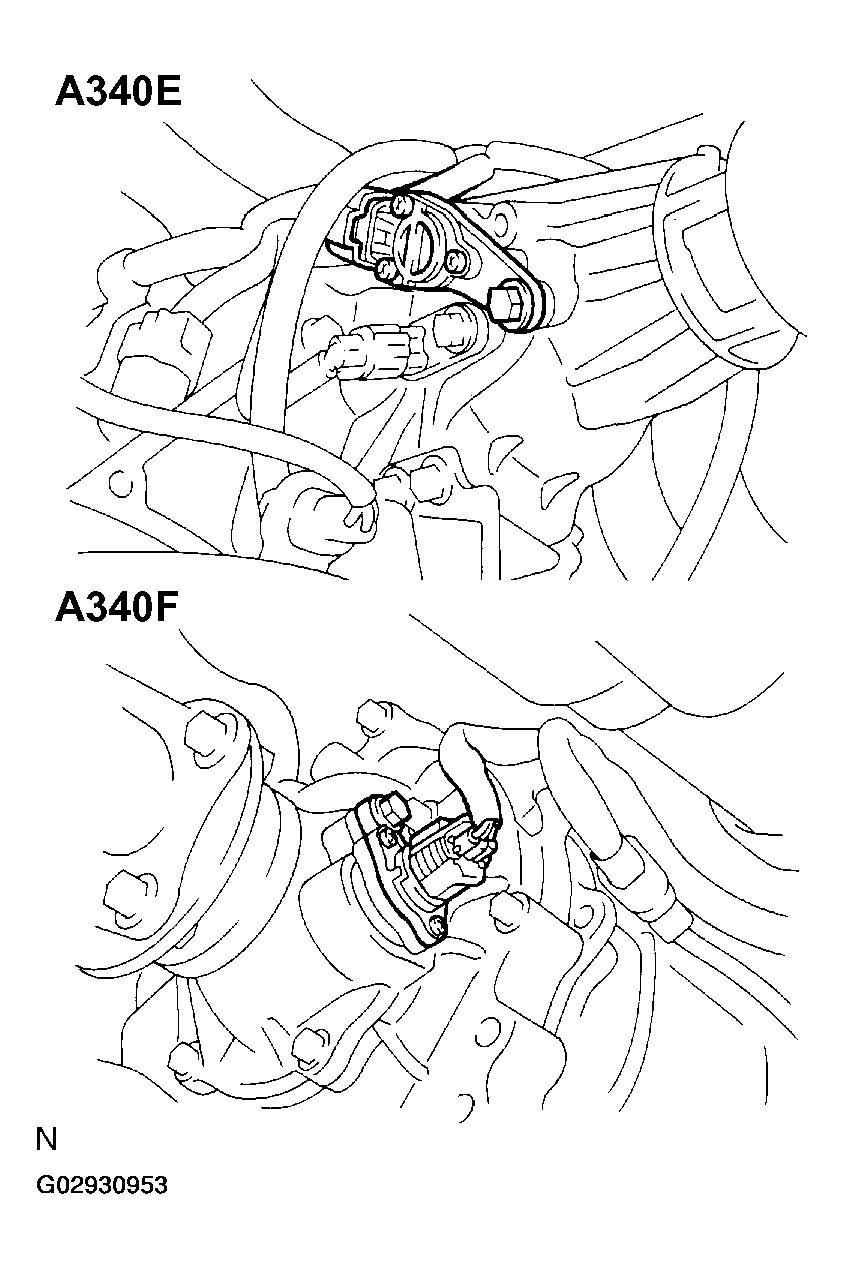

Remove the bolt and No.1 vehicle speed sensor.

1. Remove the O-ring from the speedometer driven gear assembly.
2. Remove the clip and speedometer driven gear from the speedometer driven gear sleeve.

1. Install the speedometer driven gear and clip to the speedometer driven gear sleeve.
2. Coat a new O-ring with ATF.
3. Install the O-ring to the speedometer driven gear assembly.

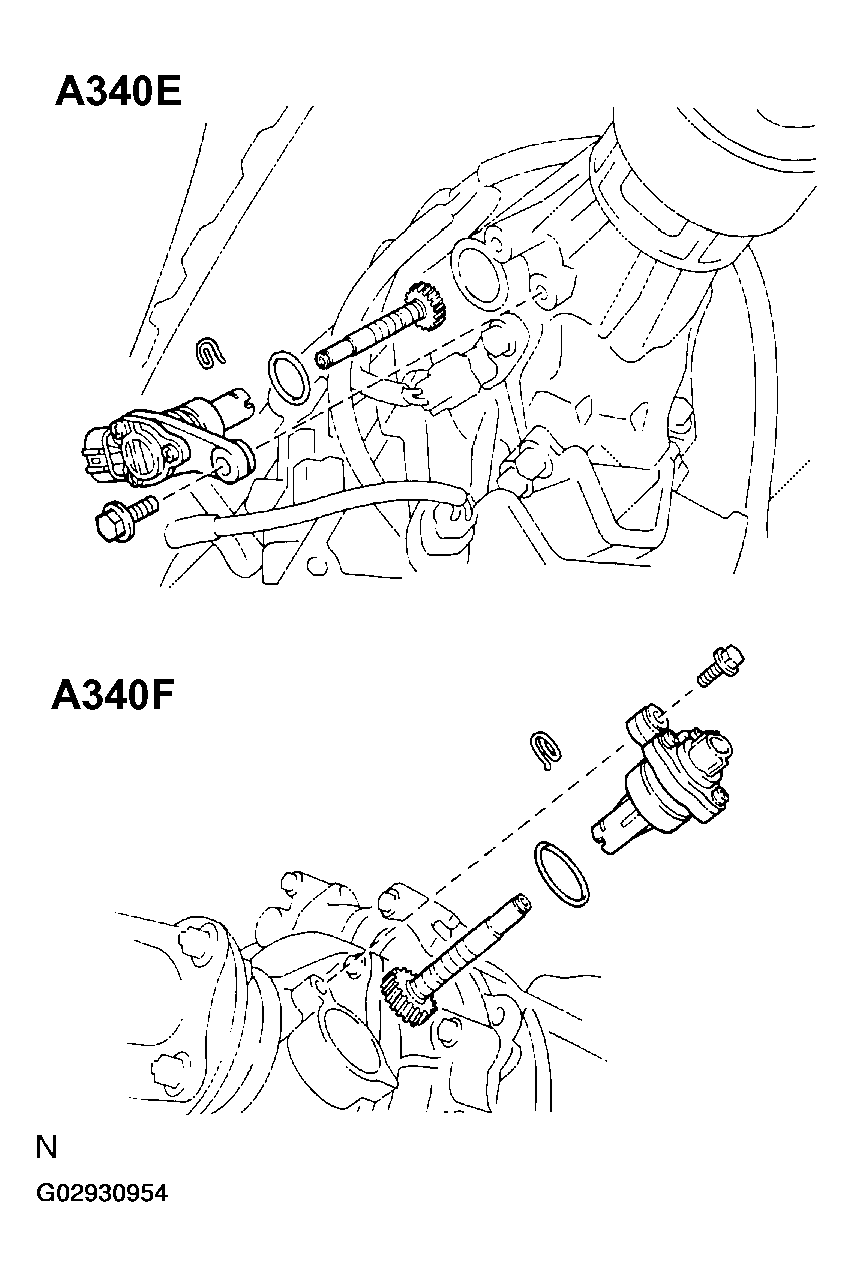

   Fig 2: Exploded View Of No. 1 Vehicle Speed Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 16 N.m (160 kgf.cm, 12 ft.lbf)

1. Remove the bolt and No. 2 vehicle speed sensor.

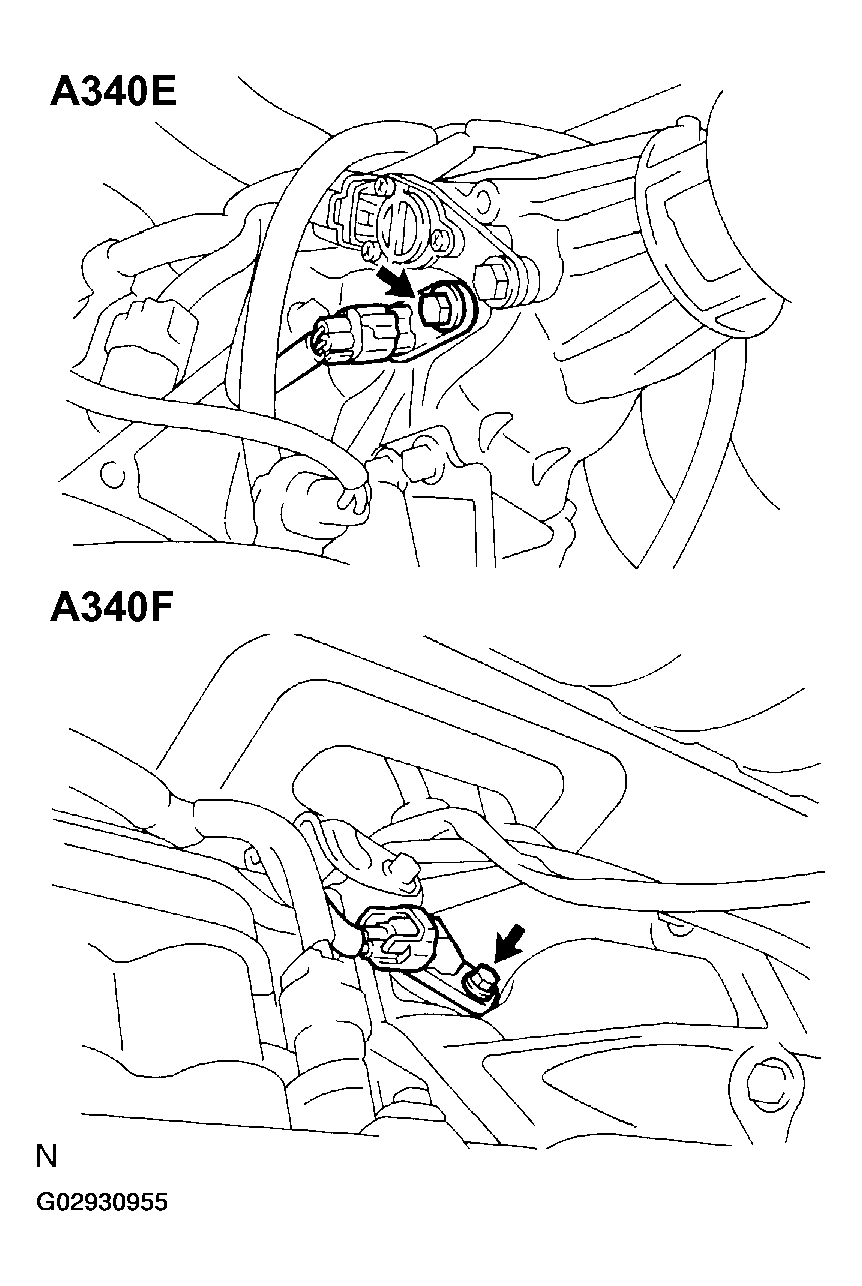

   Fig 3: Removing No. 2 Vehicle Speed Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the O-ring from the No. 2 vehicle speed sensor.

1. Coat a new O-ring with ATF and install it to the No. 2 vehicle speed sensor.
2. Install the No. 2 vehicle speed sensor with the bolt.

   Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
