How To Proceed With Troubleshooting

Troubleshoot in accordance with the procedure shown.

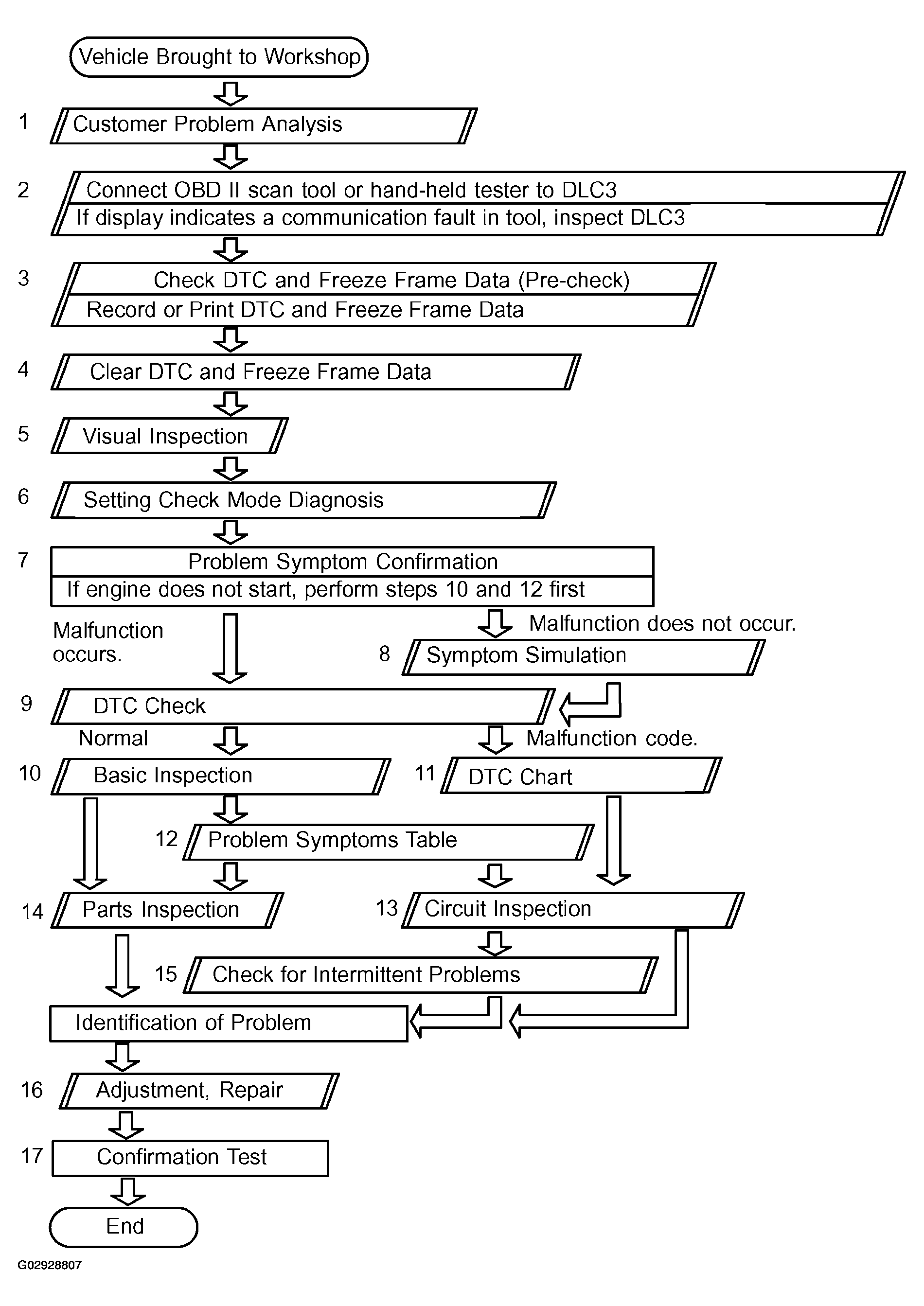

Fig 1: Engine Troubleshooting Procedure

G02928807

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
