Engine Coolant Temperature (ECT) Sensor: Components

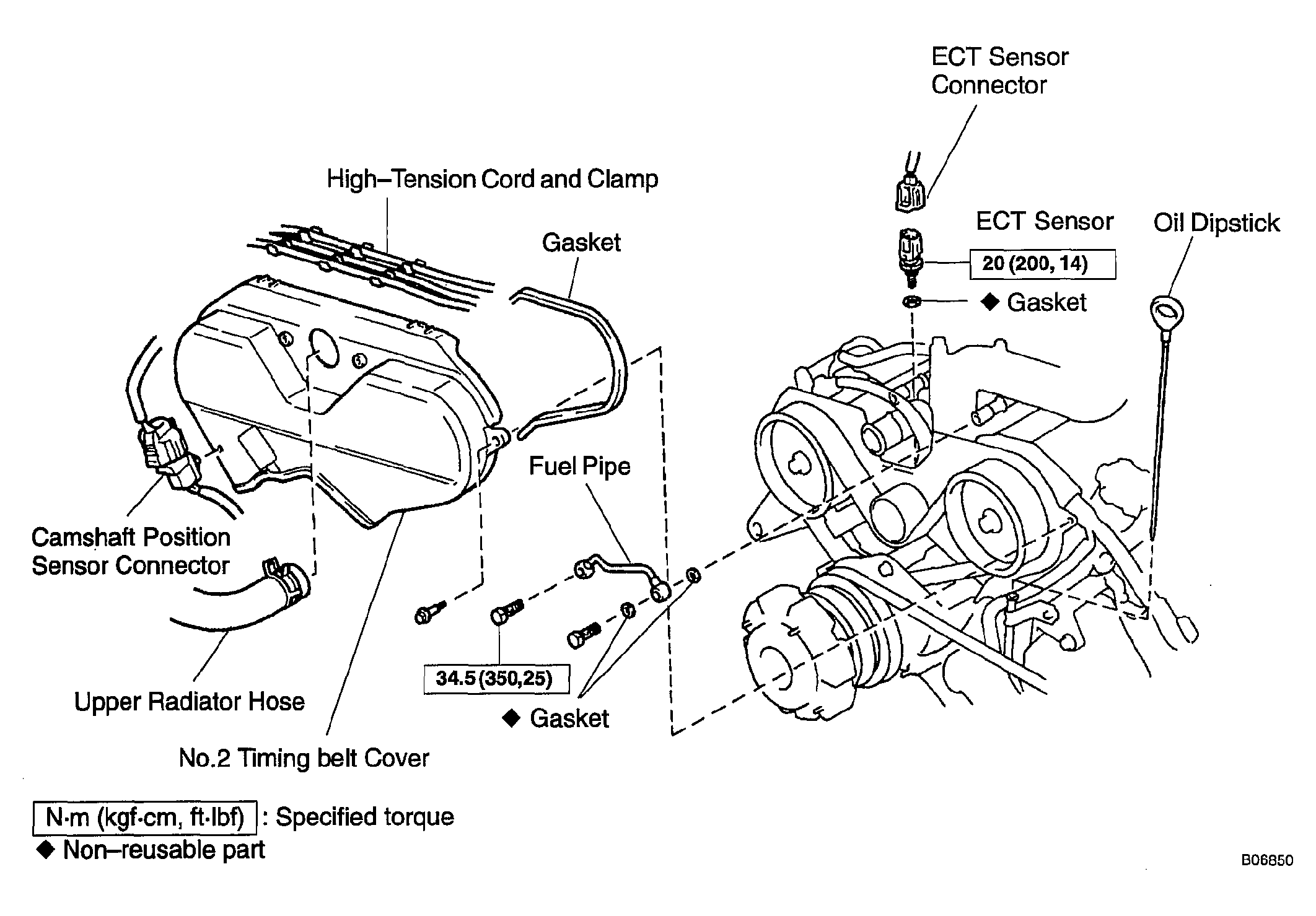

Fig 1: Exploded View Of Engine Coolant Temperature (ECT) Sensor

G04241390

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
