Camshaft Position Sensor: Components

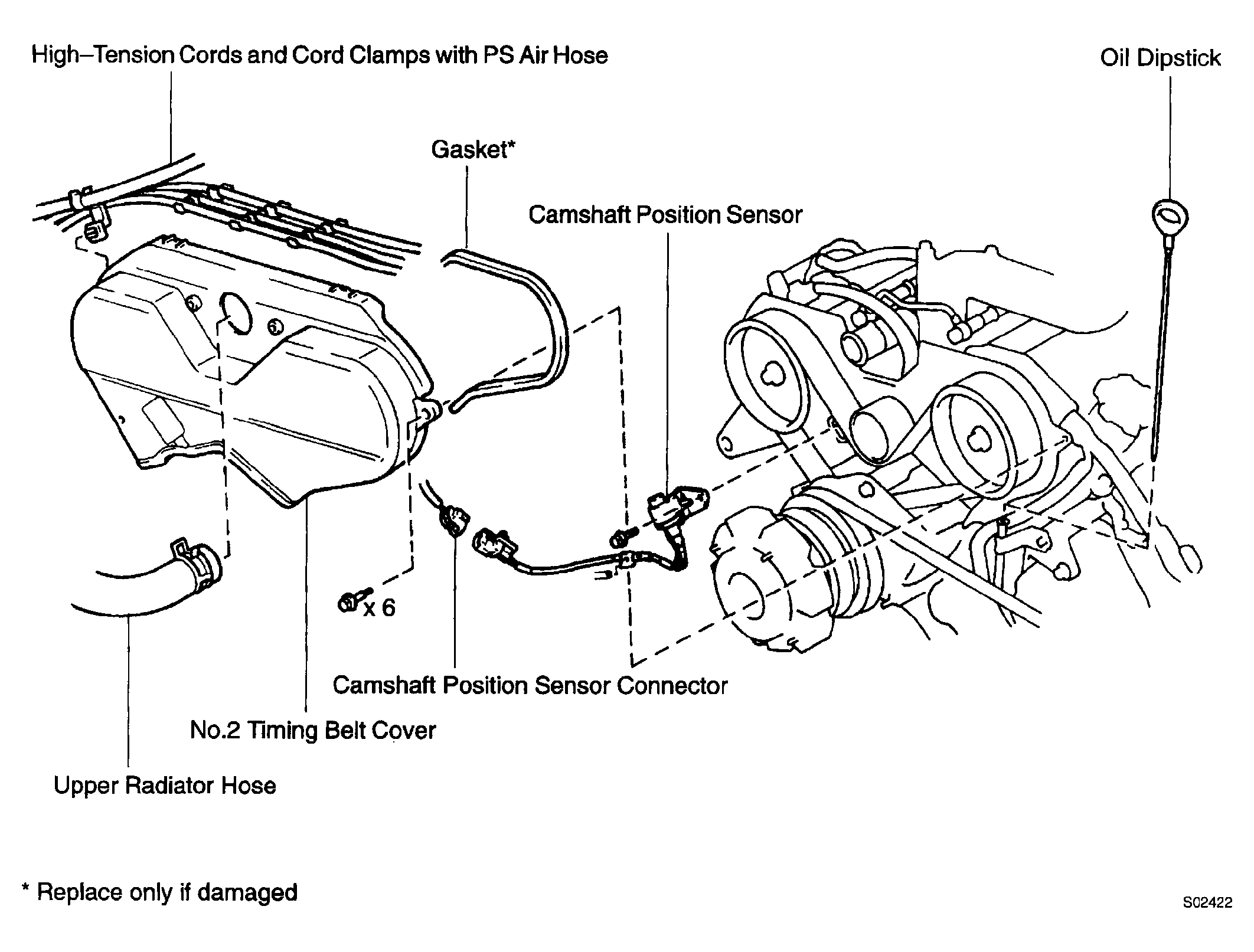

Fig 1: Identifying Camshaft Position Sensor Components

G04241431

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
