SFI System (5VZ-FE): Injector: Removal

REMOVE AIR CLEANER HOSE
REMOVE INTAKE AIR CONNECTOR ASSEMBLY
(See REMOVAL )
REMOVE FUEL PRESSURE REGULATOR
(See REMOVAL )
DISCONNECT FUEL INLET PIPE
CAUTION: Catch leaking fuel in a container.
REMOVE FUEL PIPE
DISCONNECT INJECTOR CONNECTORS
REMOVE DELIVERY PIPES AND INJECTORS
NOTE:
- Be careful not to drop the injectors when removing the delivery pipes.
- Pay attention to put any hung load on the injector to and from the side direction.
1. Remove the 4 bolts and delivery pipes together with the 6 injectors.
2. Remove the 4 spacers from the intake manifold.
3. Pull out the 6 injectors from the delivery pipes.
4. Remove the 2 O-rings and insulator from each injector.

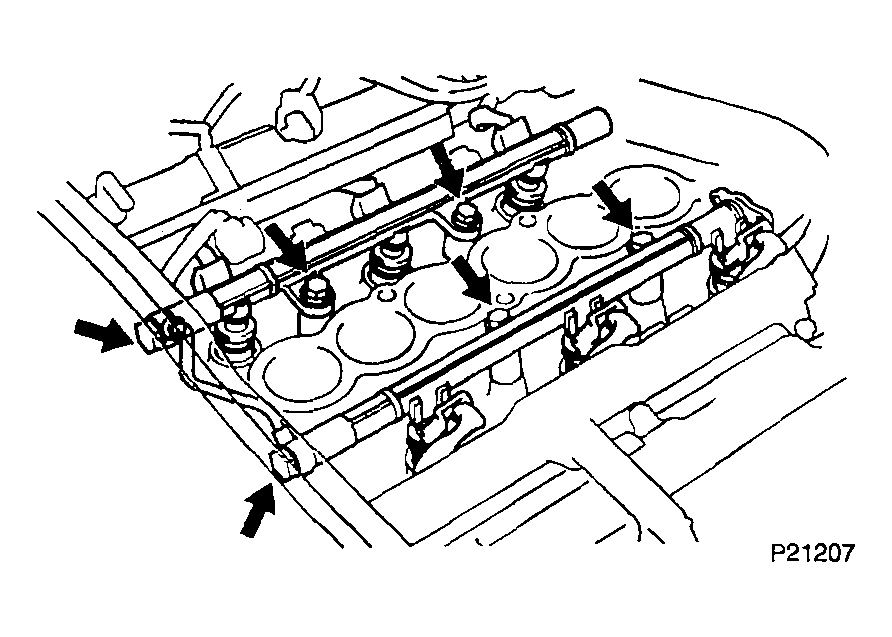

Fig 1: Pulling Out Injectors From Delivery Pipes
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
