Control Module: Testing and Inspection

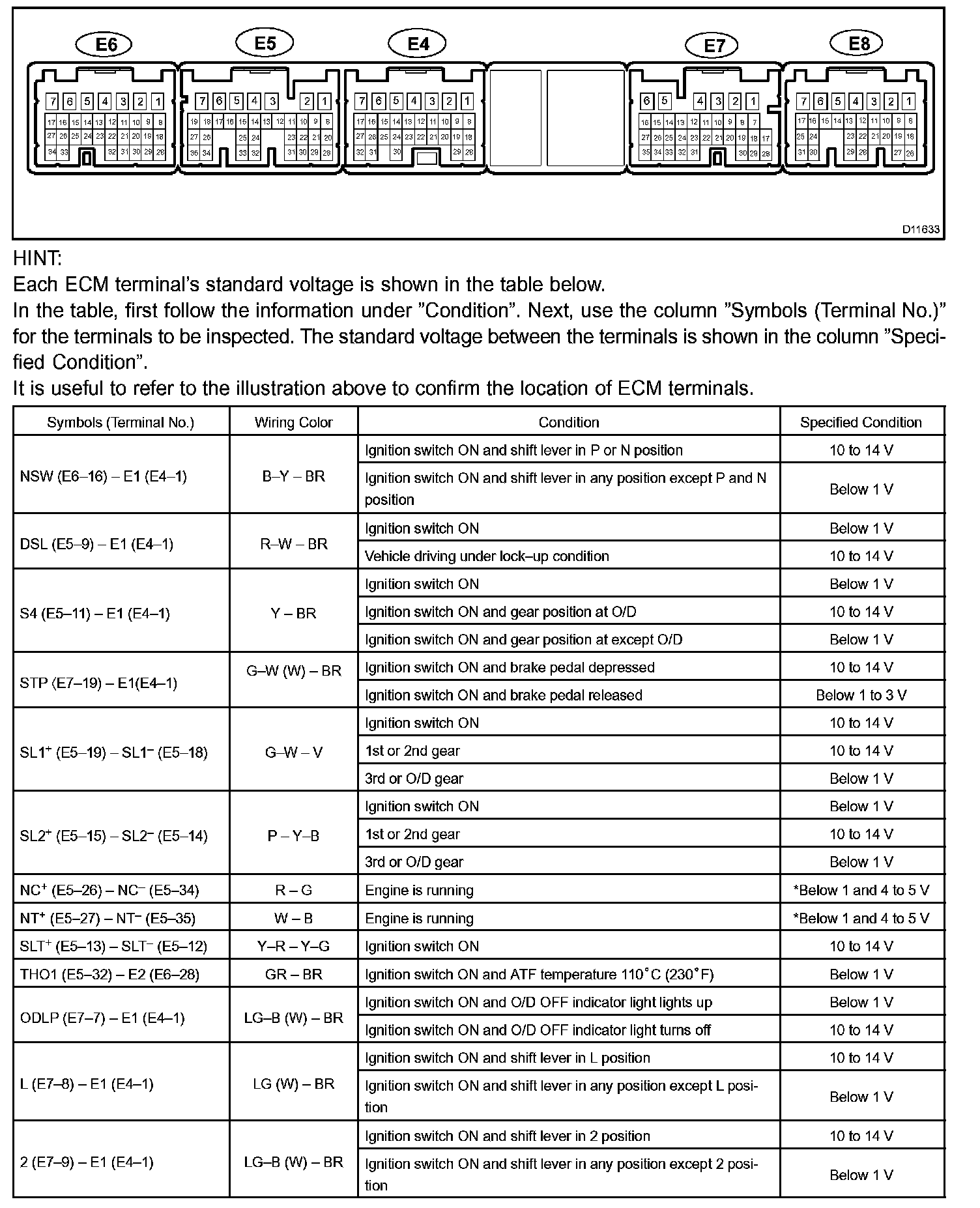

Terminals Of ECM / Pinouts Part 1:

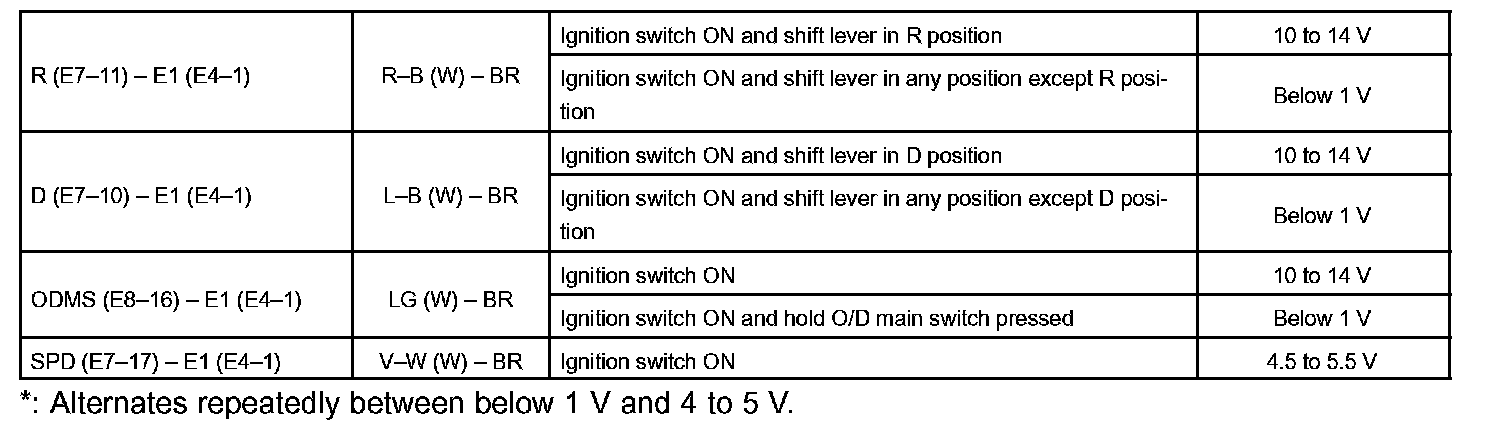

Terminals Of ECM / Pinouts Part 2:
