System Specifications

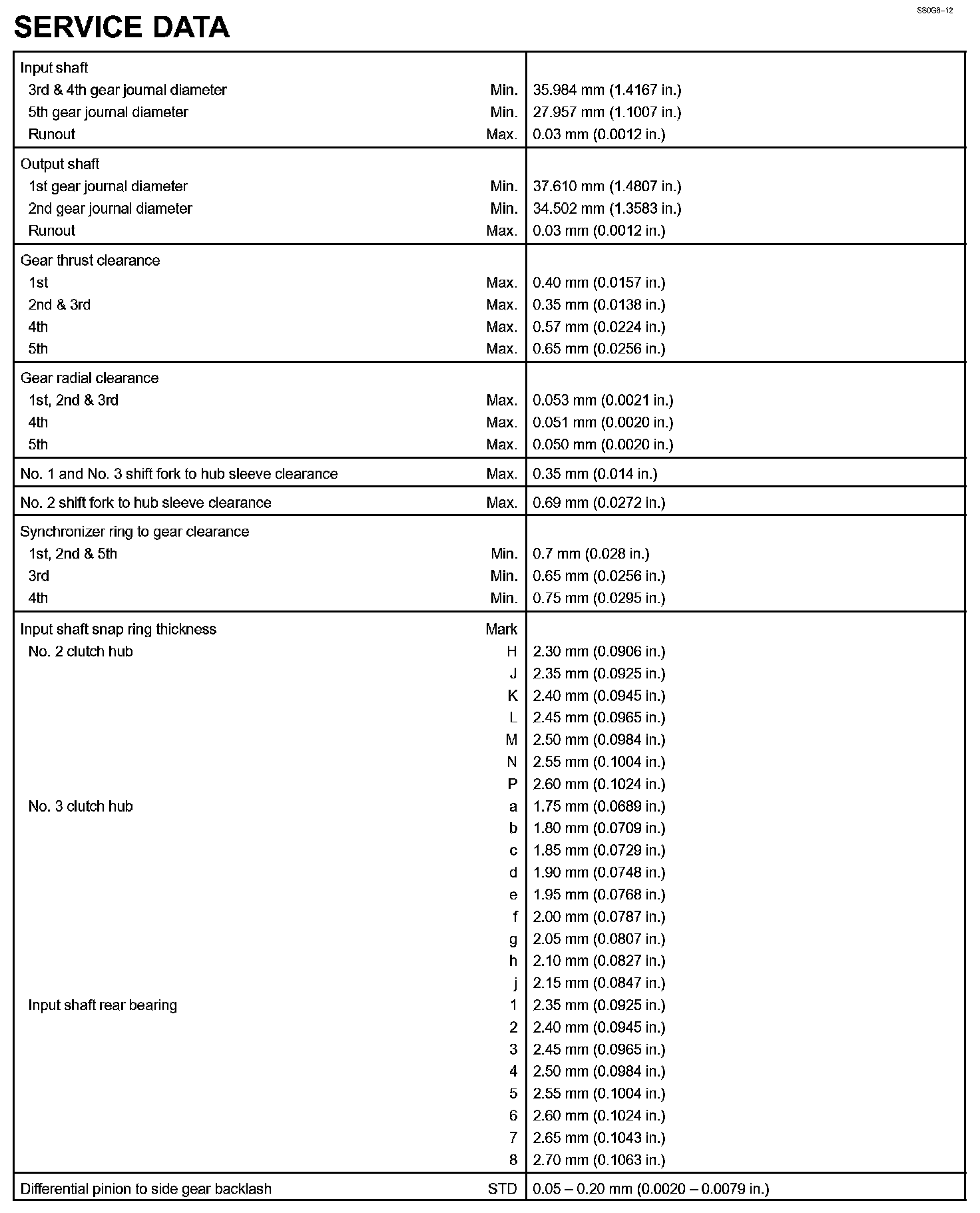

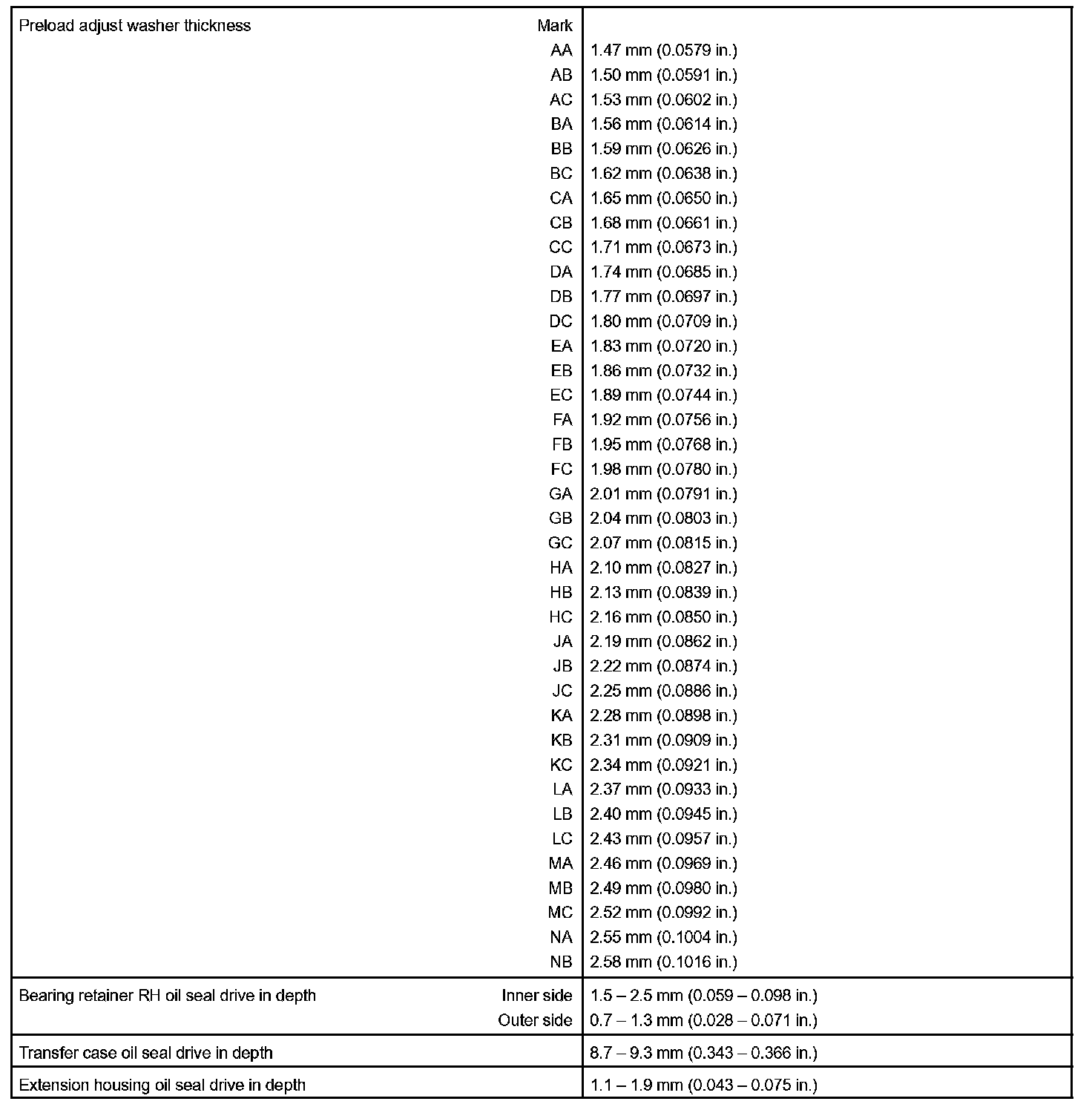

Manual Transaxle - Service Data Part 1:

Manual Transaxle - Service Data Part 2:

Manual Transaxle - Service Data Part 3:

Manual Transaxle - Service Data Part 4:

Manual Transaxle - Service Data Part 5:

Manual Transaxle - Service Data Part 6:

Manual Transaxle - Service Data Part 7:

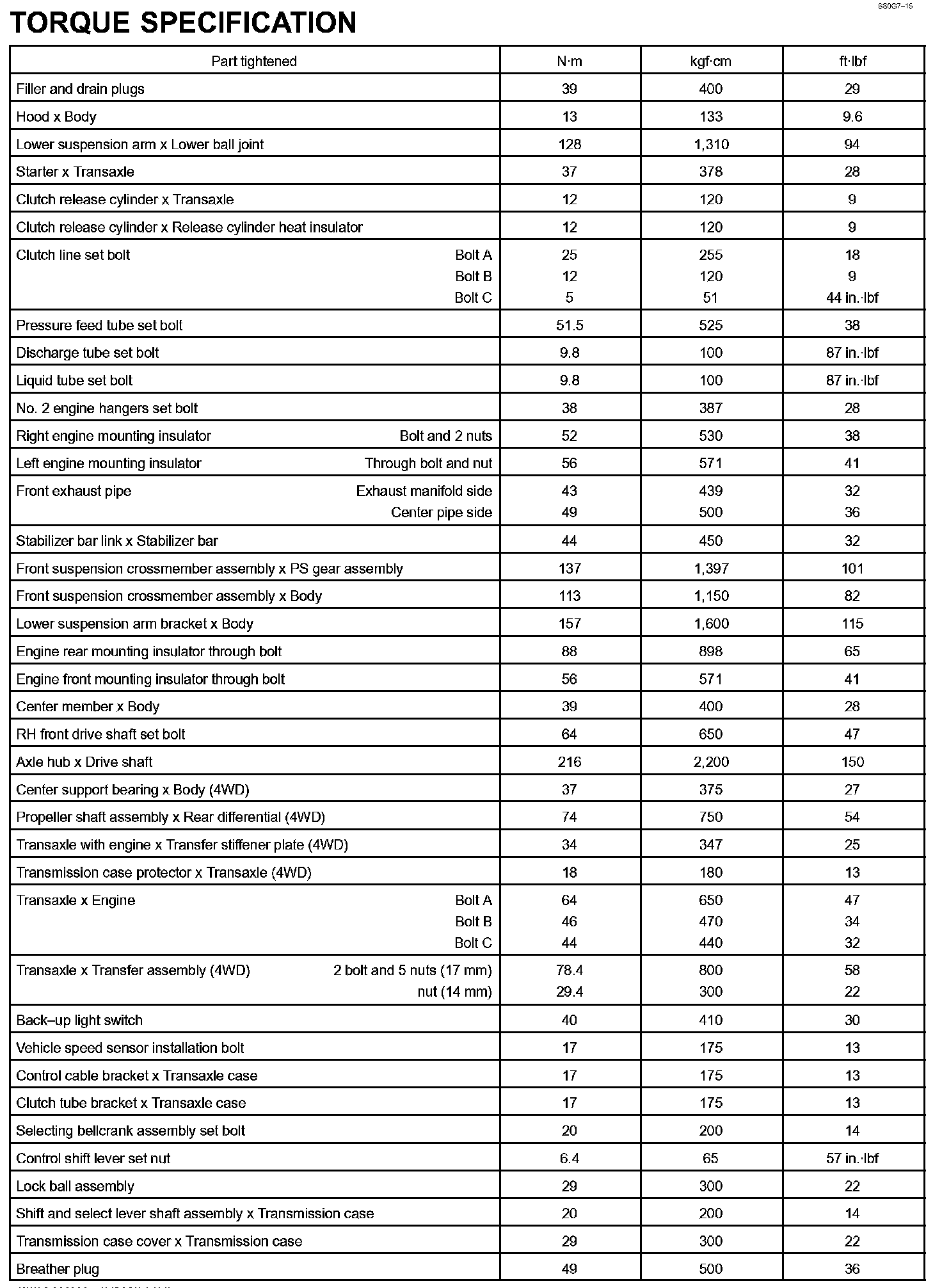

Manual Transaxle - Torque Specification Part 1:

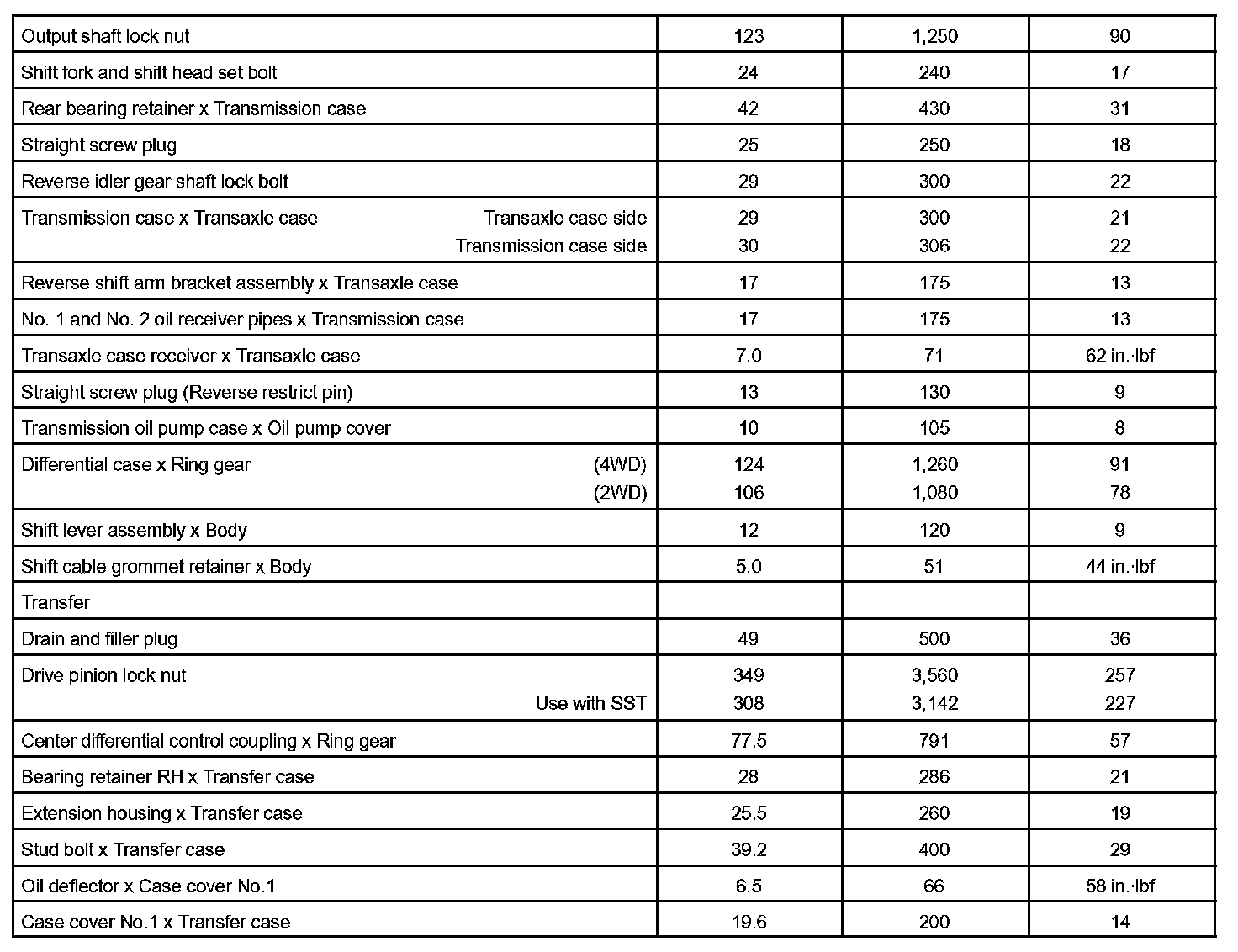

Manual Transaxle - Torque Specification Part 2:
