Connecting Rod, Engine

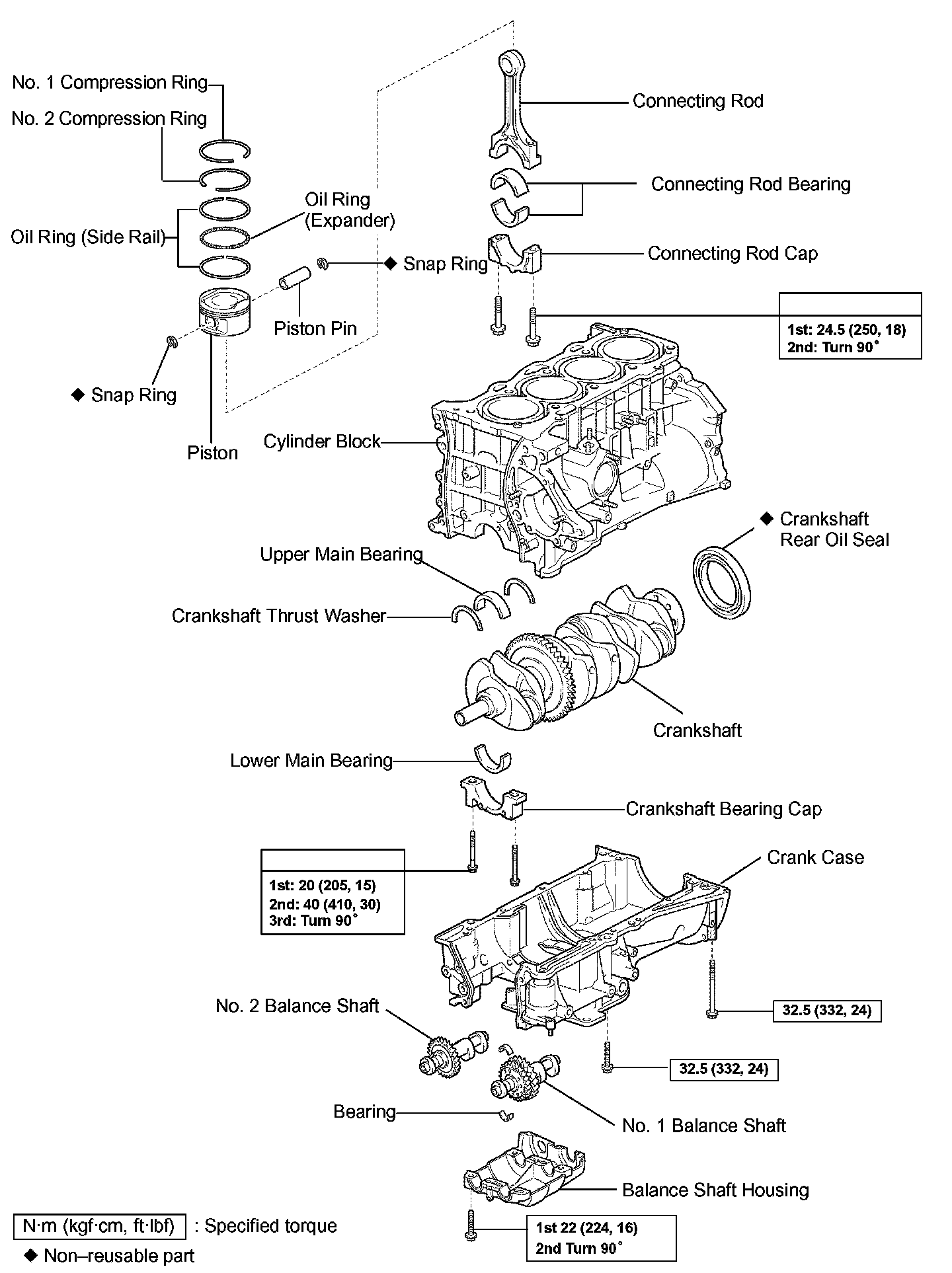

CYLINDER BLOCK:

CONNECTING ROD

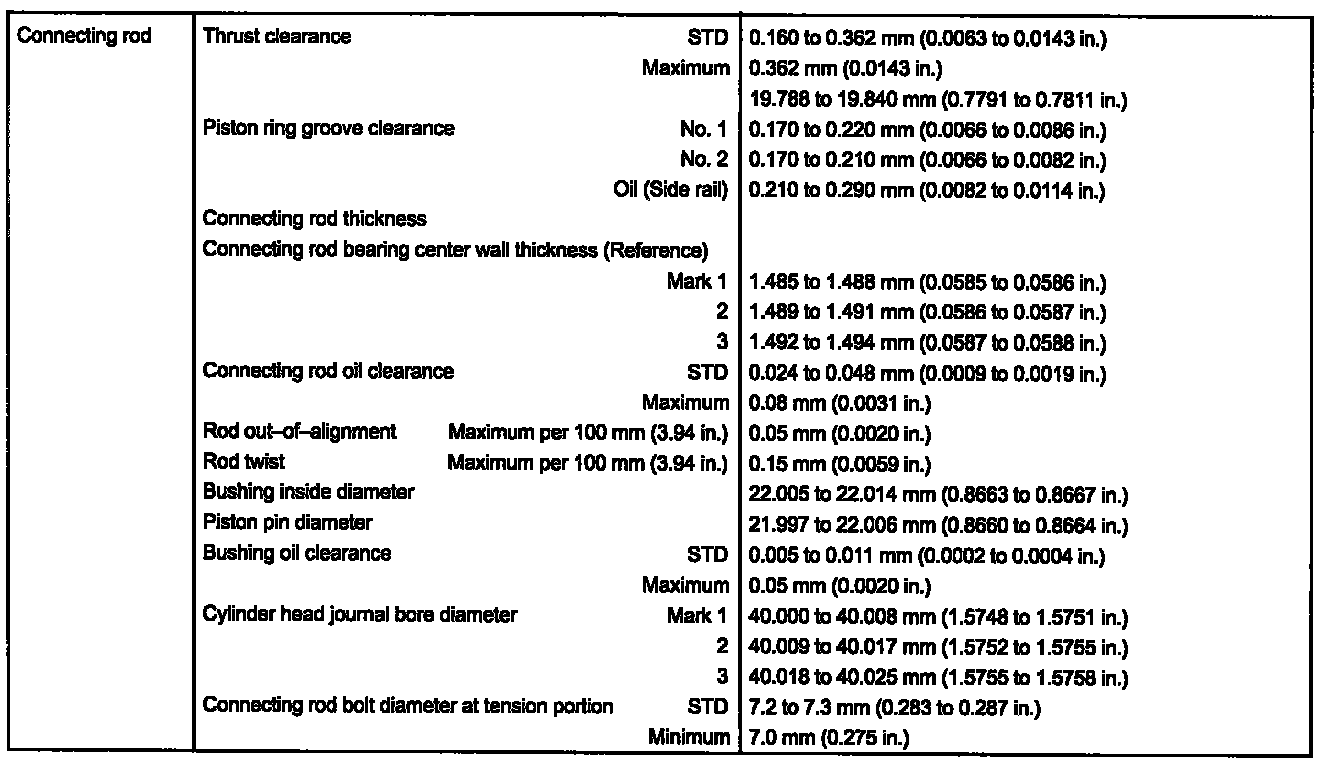

Connecting Rod:

Connecting Rod Cap Bolts

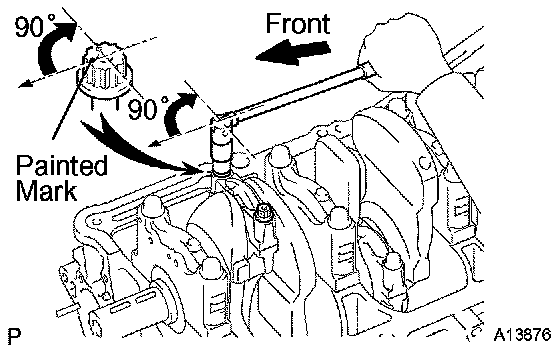

Mark the front of the connecting cap bolts with paint.
Retighten the cap bolts by 90° as shown
Install and alternately tighten the 2 connecting rod cap bolts in several passes.

Torque 24.5 Nm (250 kgf-cm, 18 ft. lbs.)
