Home >> Toyota >> 2004 >> RAV4 2WD L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications

System Specifications

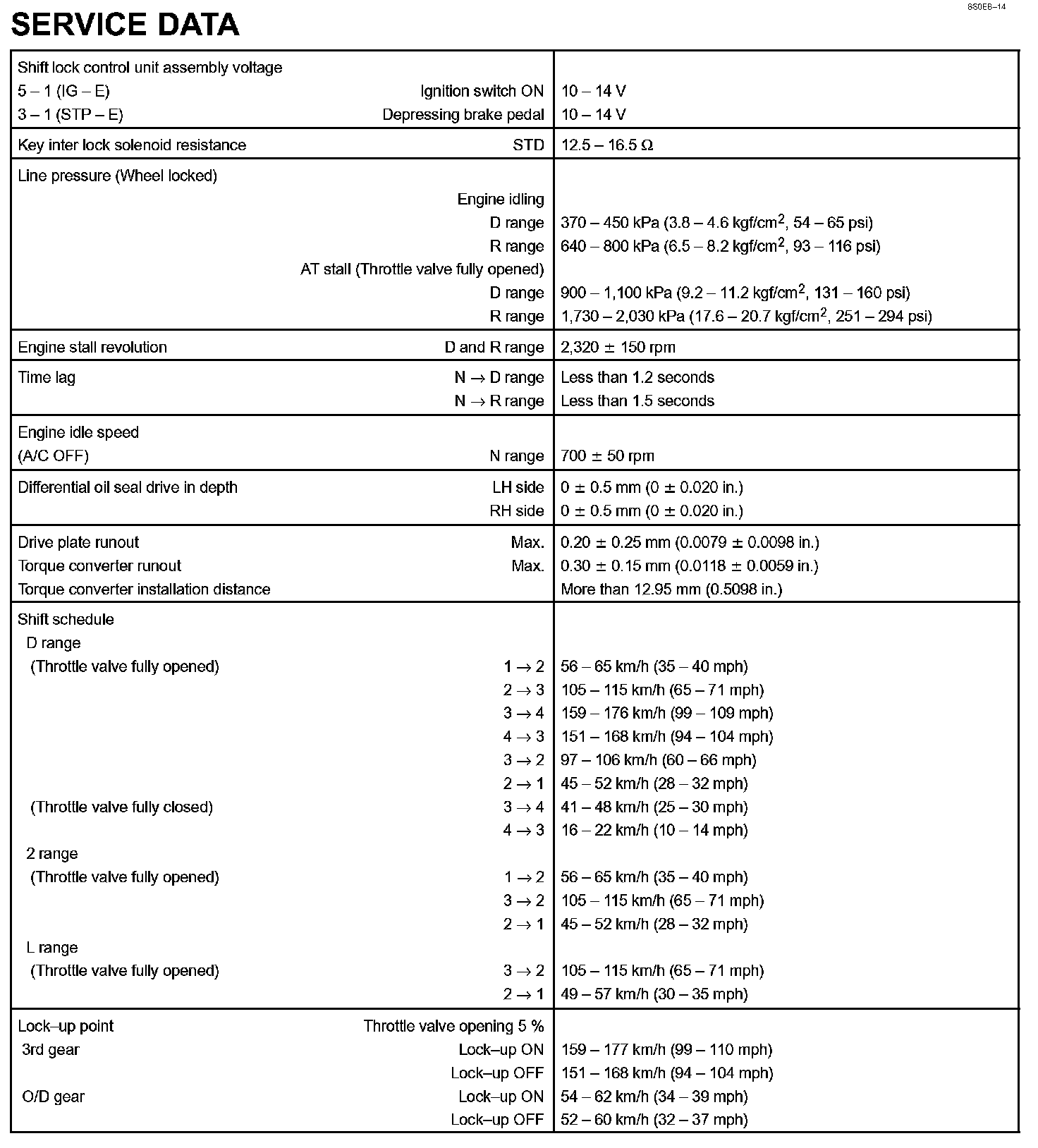

Automatic Transaxle (U241E) - Service Data:

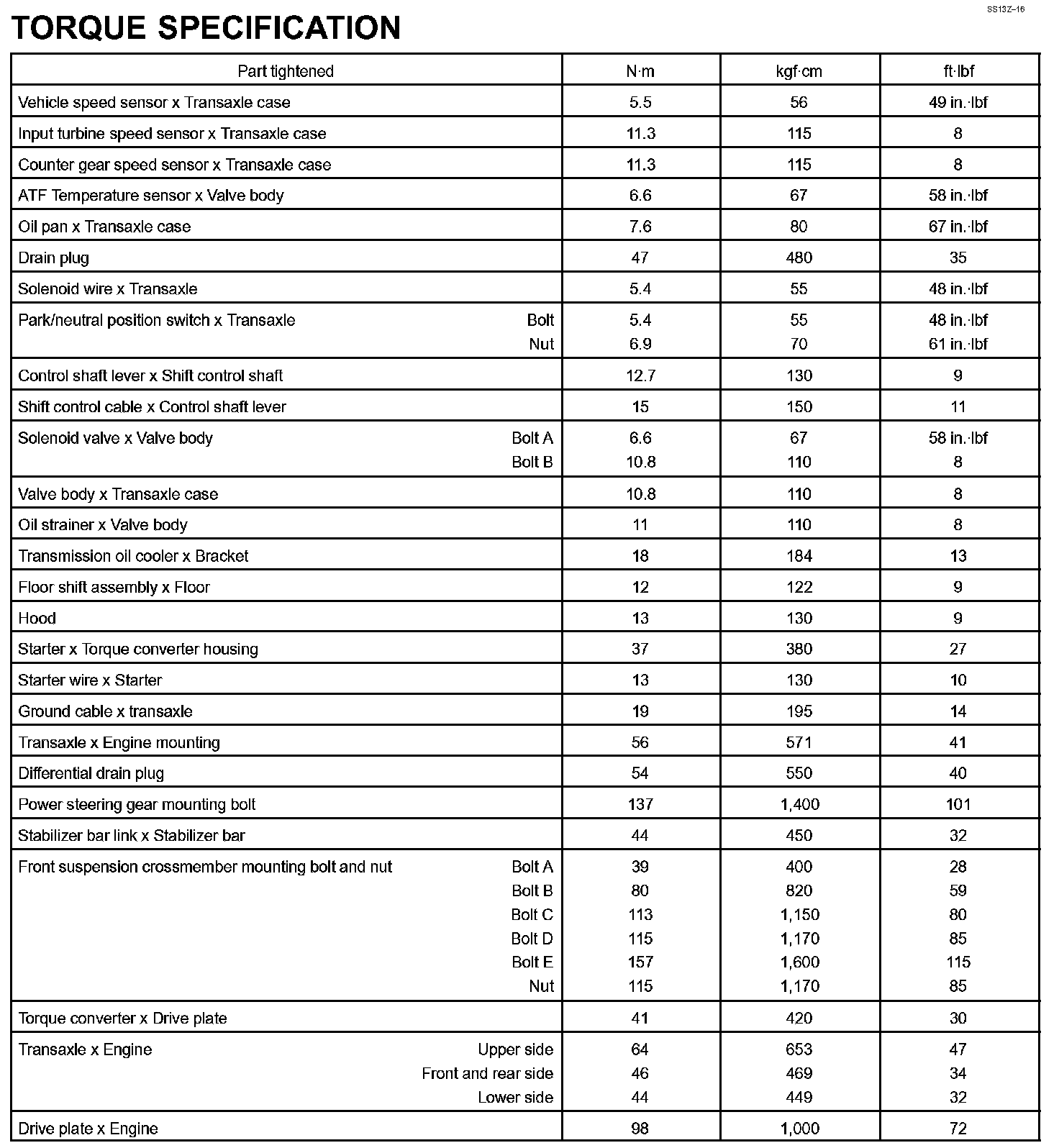

Automatic Transaxle (U241E) - Torque Specification:
