Crankshaft Position Sensor: Testing and Inspection

INSPECT CRANKSHAFT POSITION SENSOR




a. Disconnect the sensor connector.

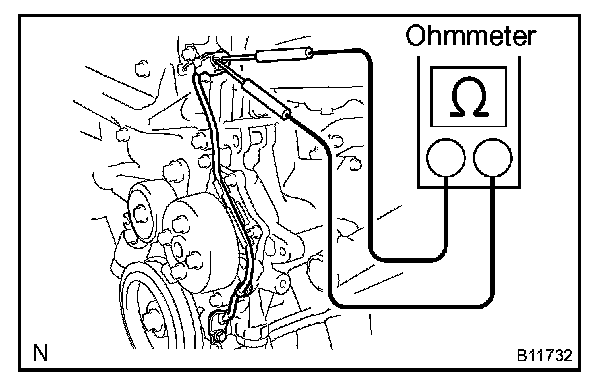

b. Using an ohmmeter, measure the resistance between the terminals.

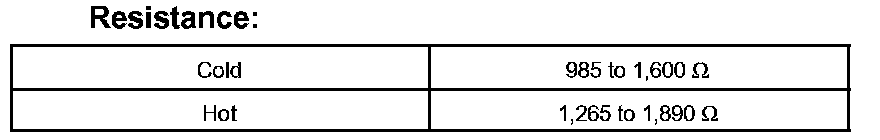

Resistance:
If the result is not as specified, replace the sensor.

c. Reconnect the sensor connector.
