Home >> Toyota >> 2004 >> RAV4 2WD L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Locations

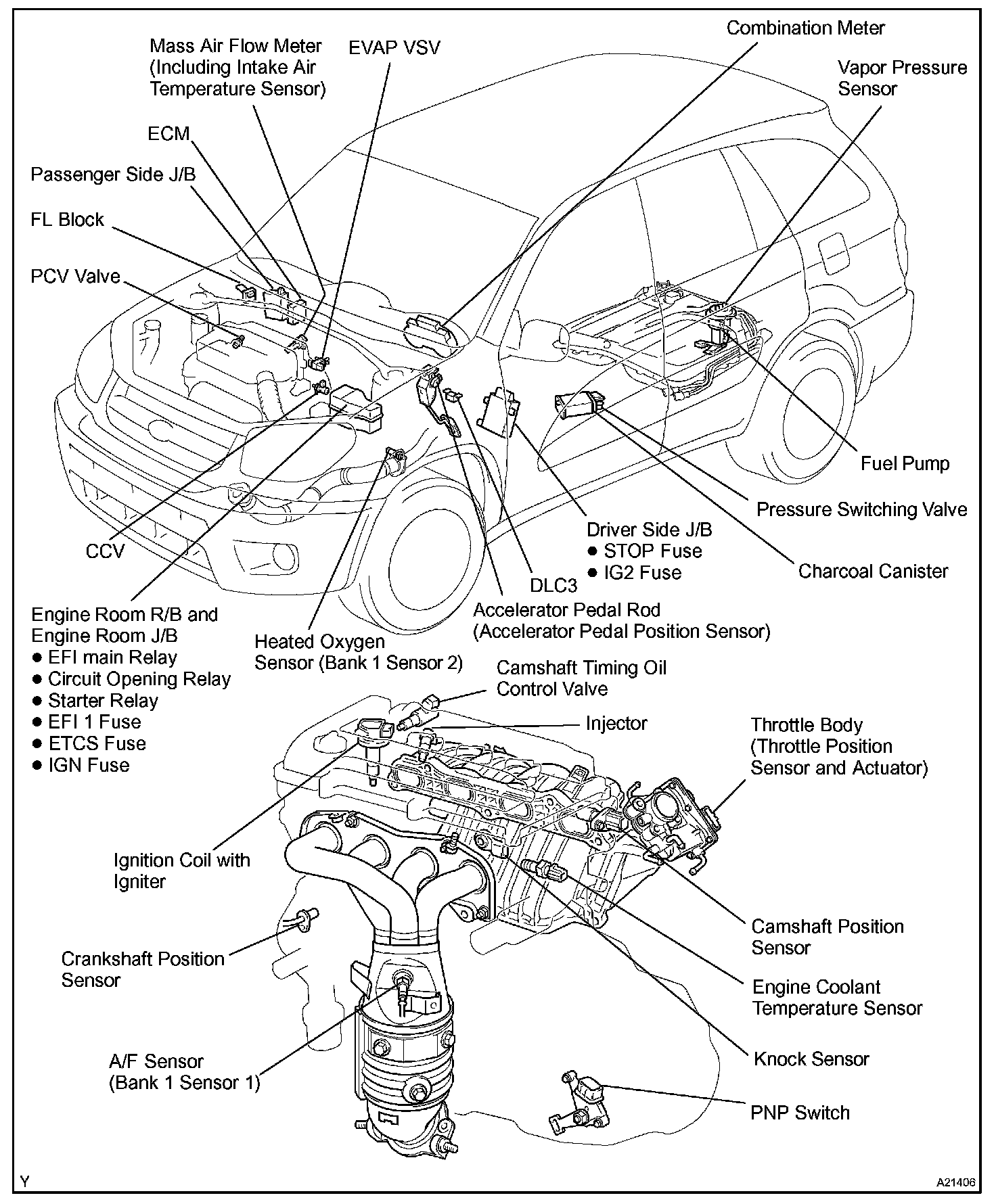

Coolant Temperature Sensor/Switch (For Computer): Locations

Engine:

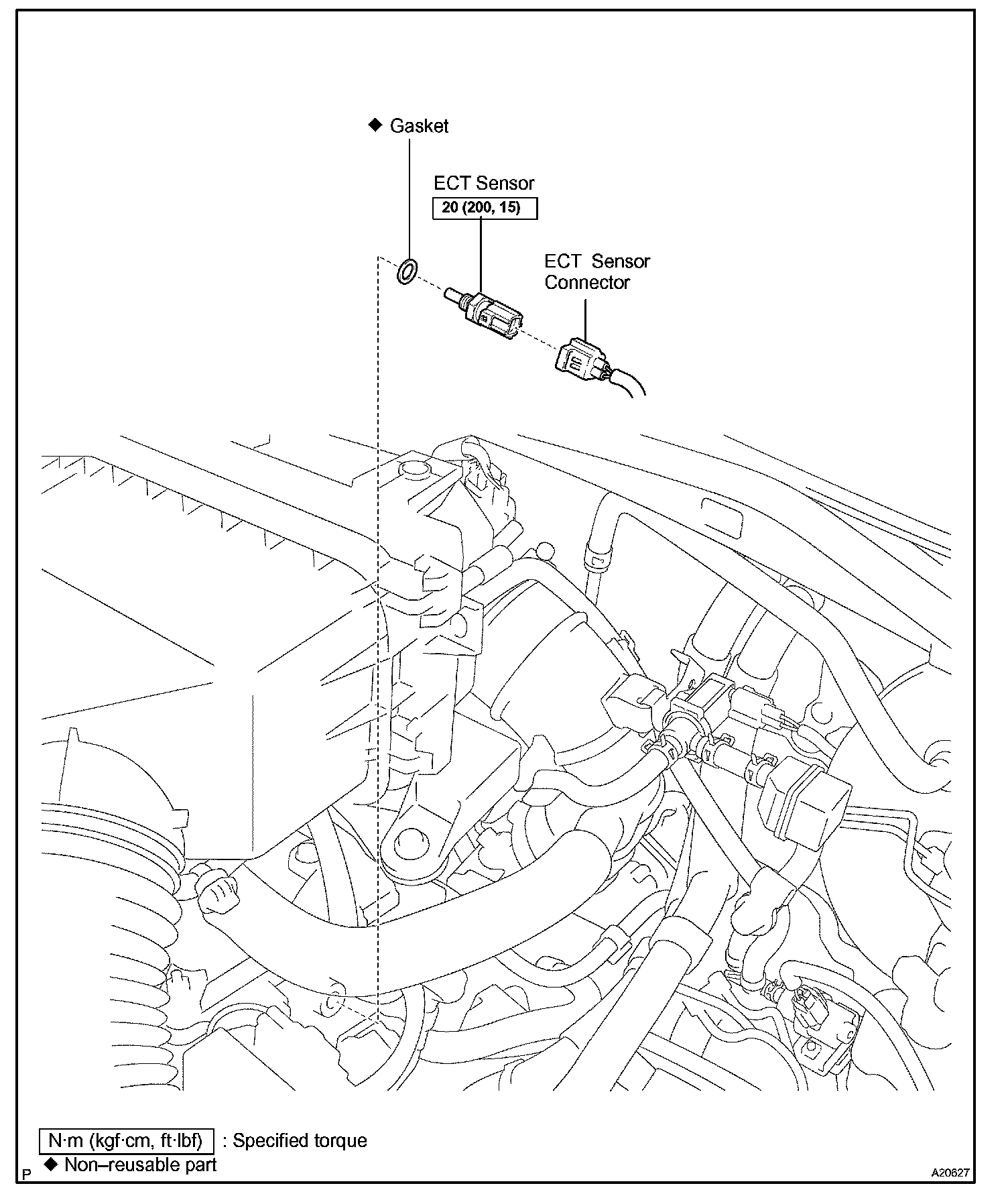

Engine Coolant Temperature (ECT) Sensor:
