Cylinder Head Assembly

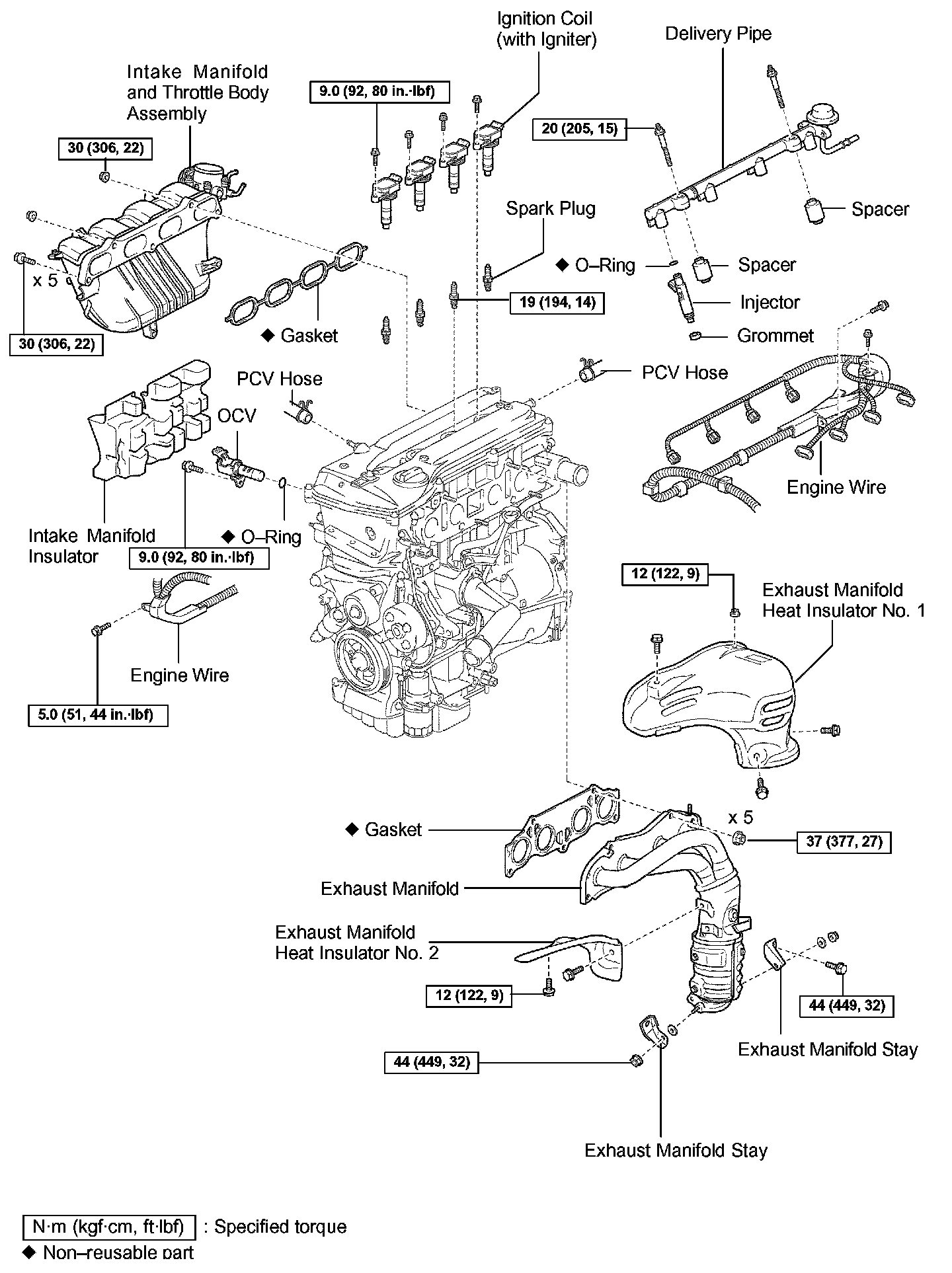

CYLINDER HEAD - Part 1:

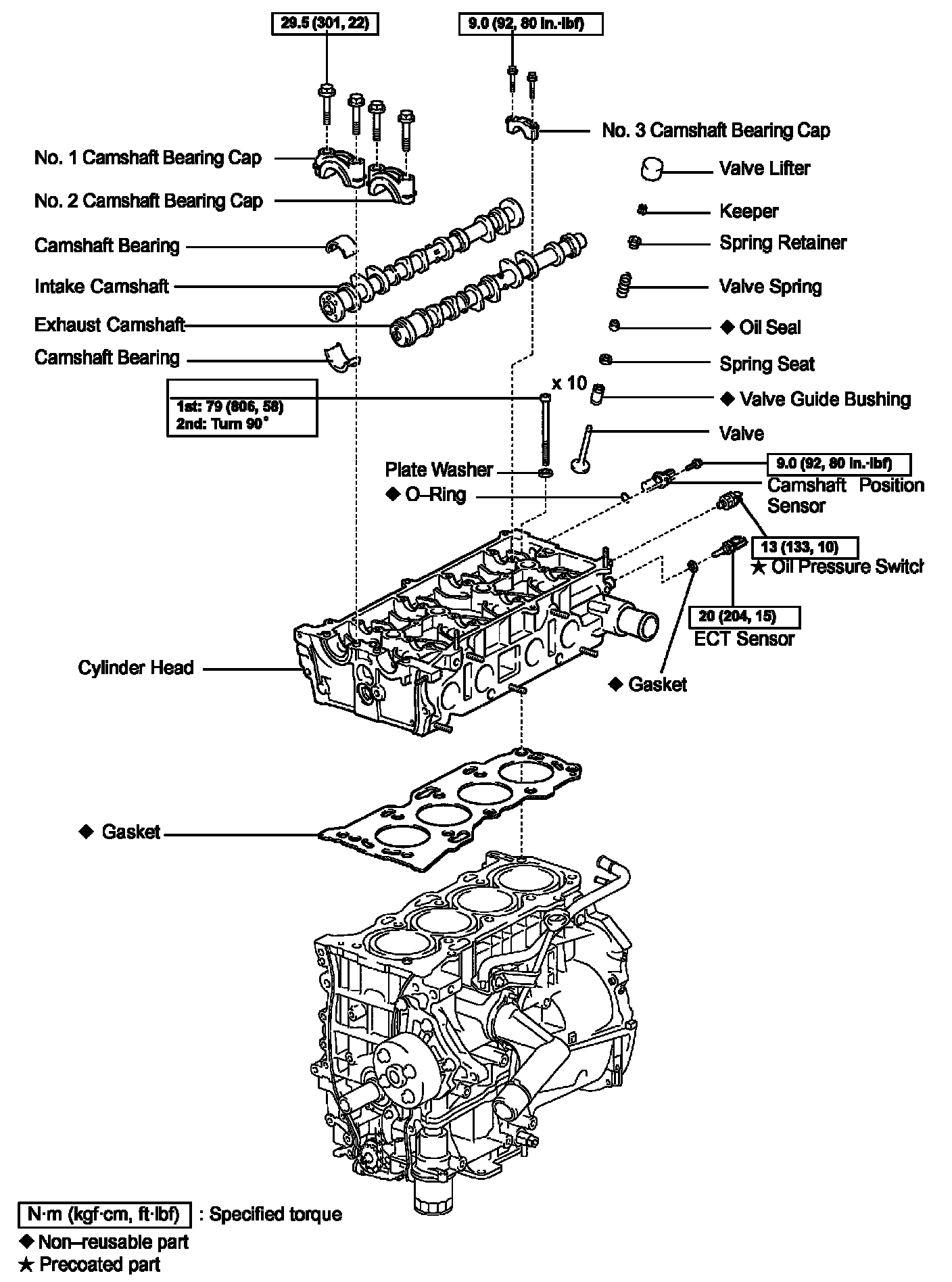

CYLINDER HEAD:

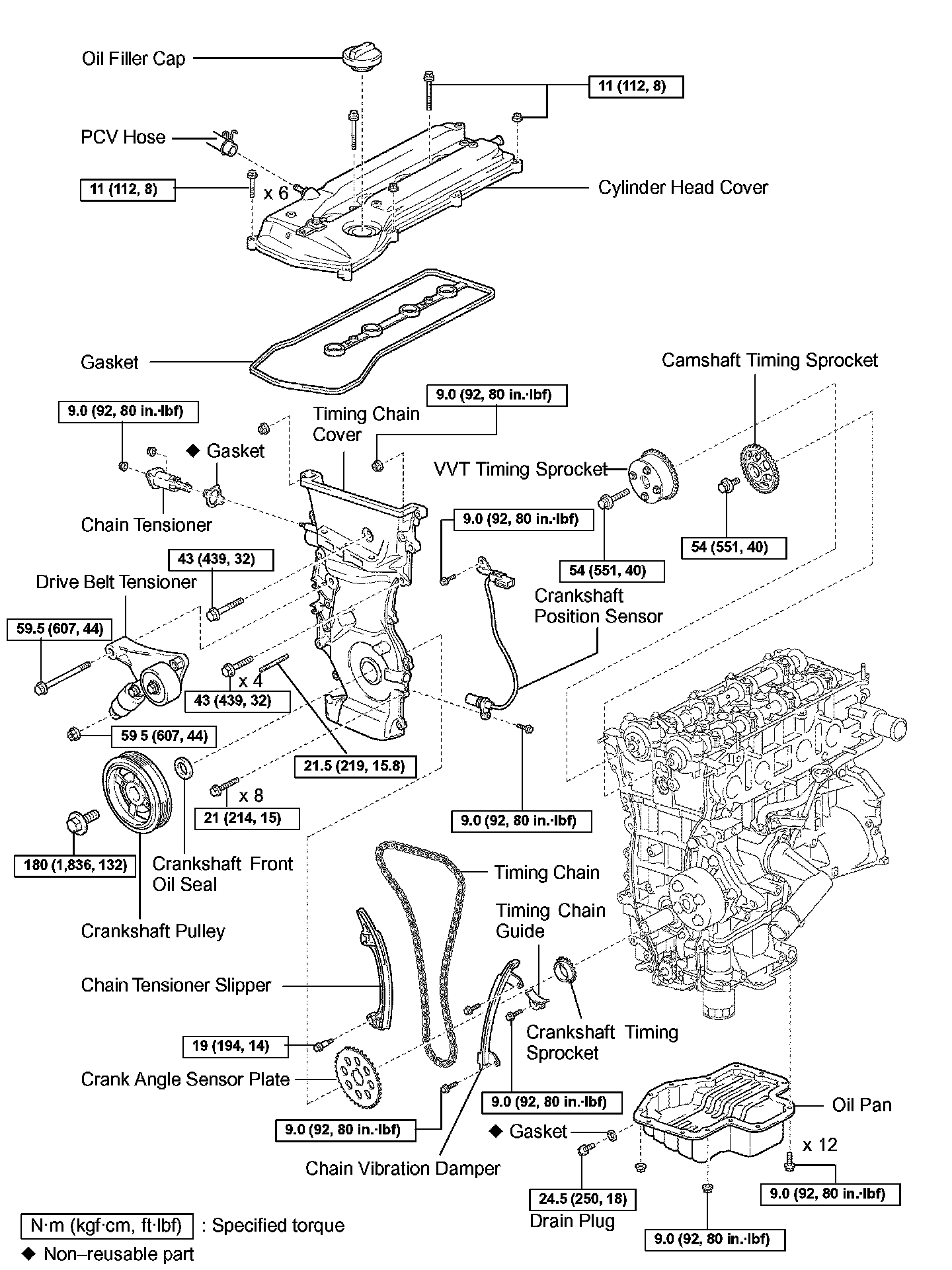

CYLINDER HEAD:



CYLINDER HEAD - Part 4:
