Data List/Active Test

  1. DATA LIST
    1. Connect the hand-held tester to the DLC3.
    2. Turn the power switch on (IG) and turn the hand-held tester on.
    3. Operate the hand-held tester according to the steps on the display and select "DATA LIST".

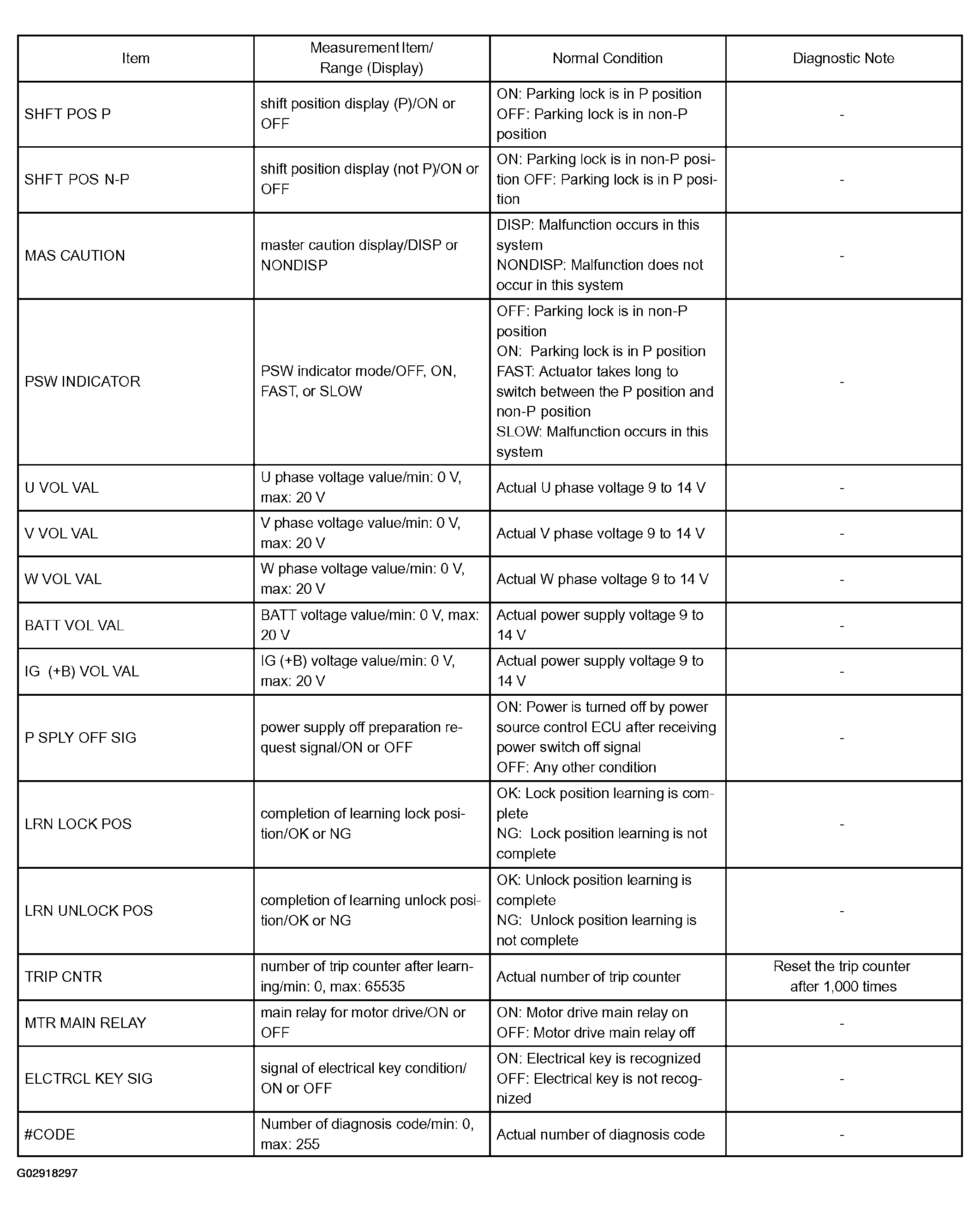

    Fig 1: Active Test Data List (1 Of 2)
    G02918297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

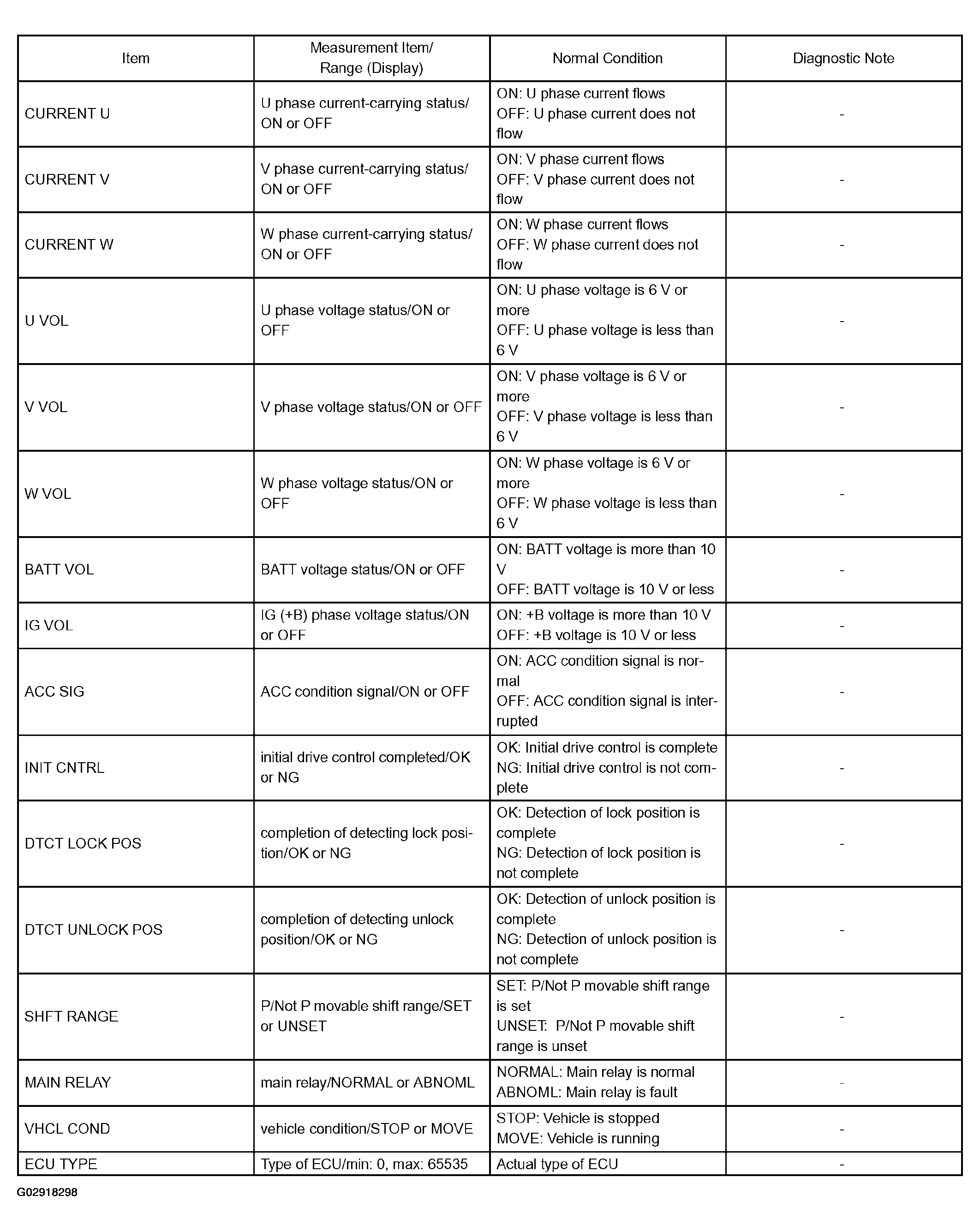

    Fig 2: Active Test Data List (2 Of 2)
    G02918298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
