System Specifications

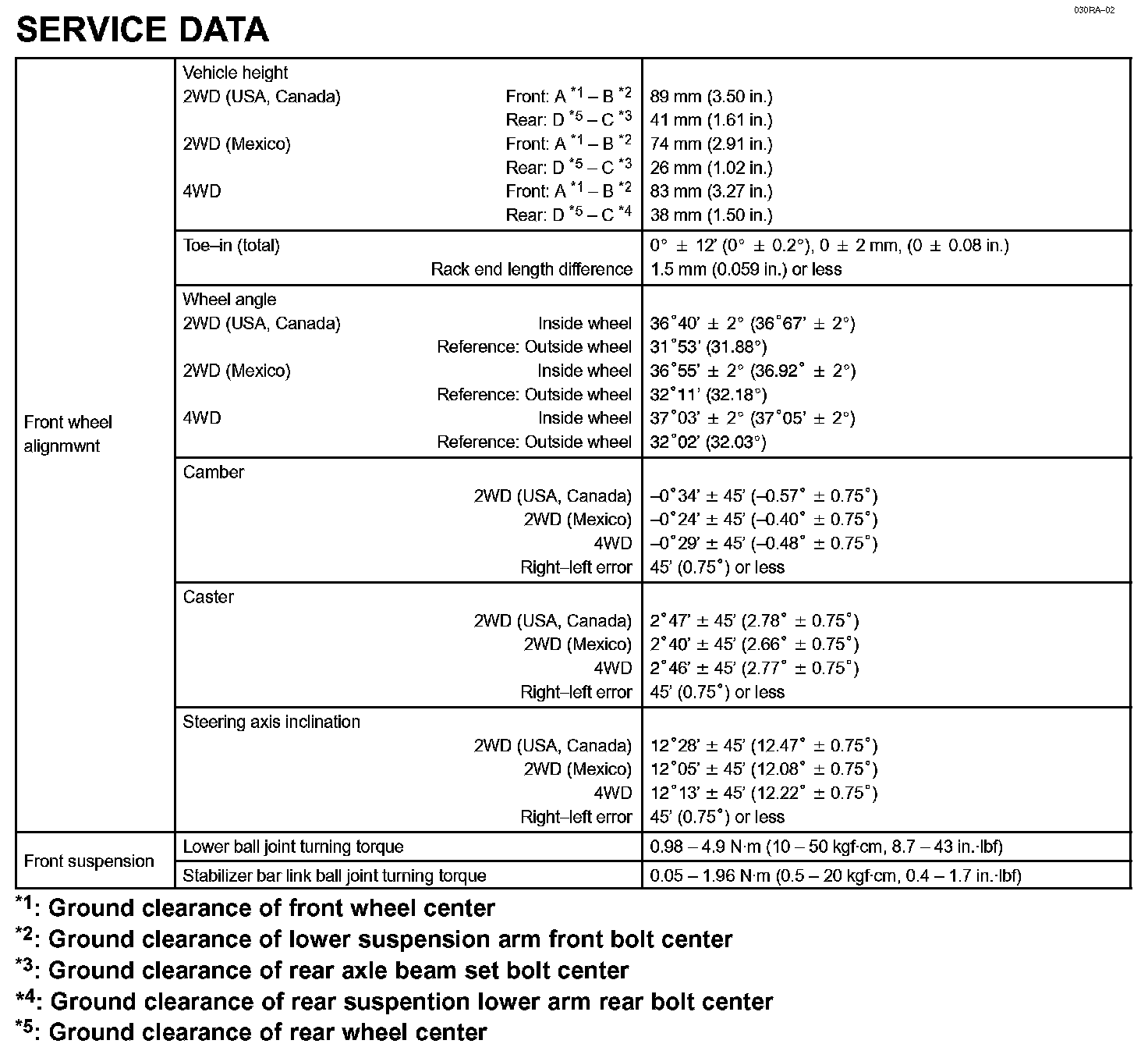

Front Suspension - Service Data:

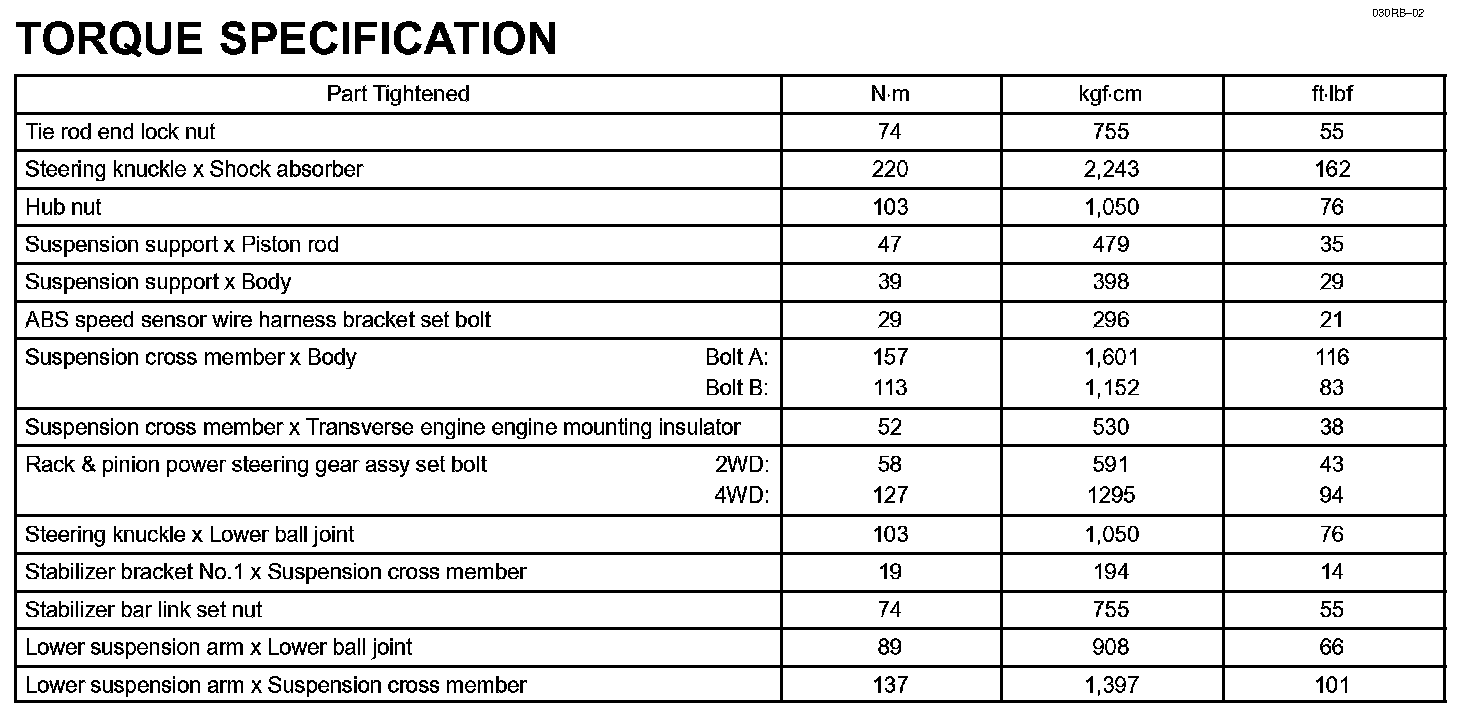

Front Suspension - Torque Specification:




Rear Suspension - Service Data:

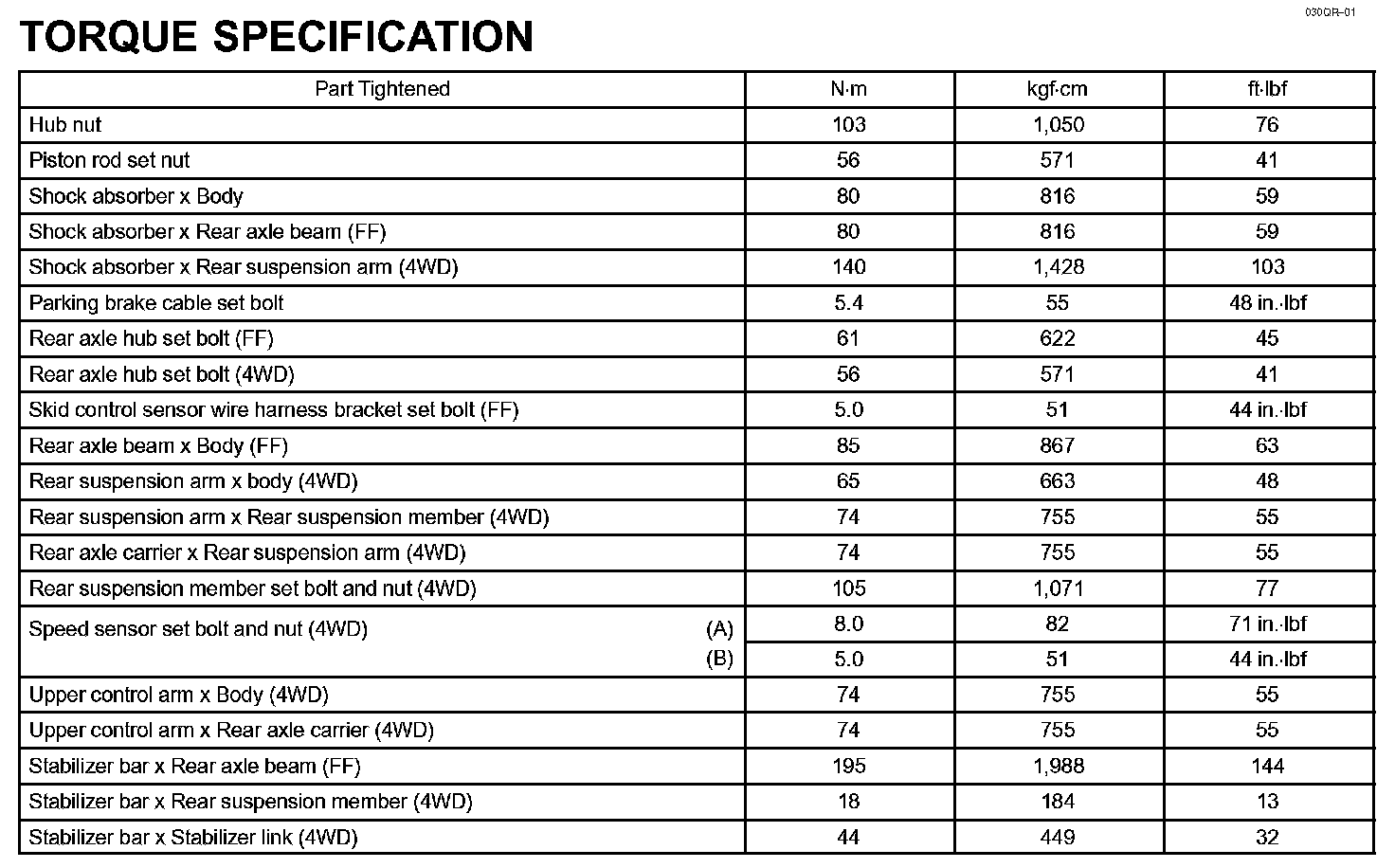

Rear Suspension - Torque Specification:
