System Specifications

Heater & Air Conditioner - Service Data:

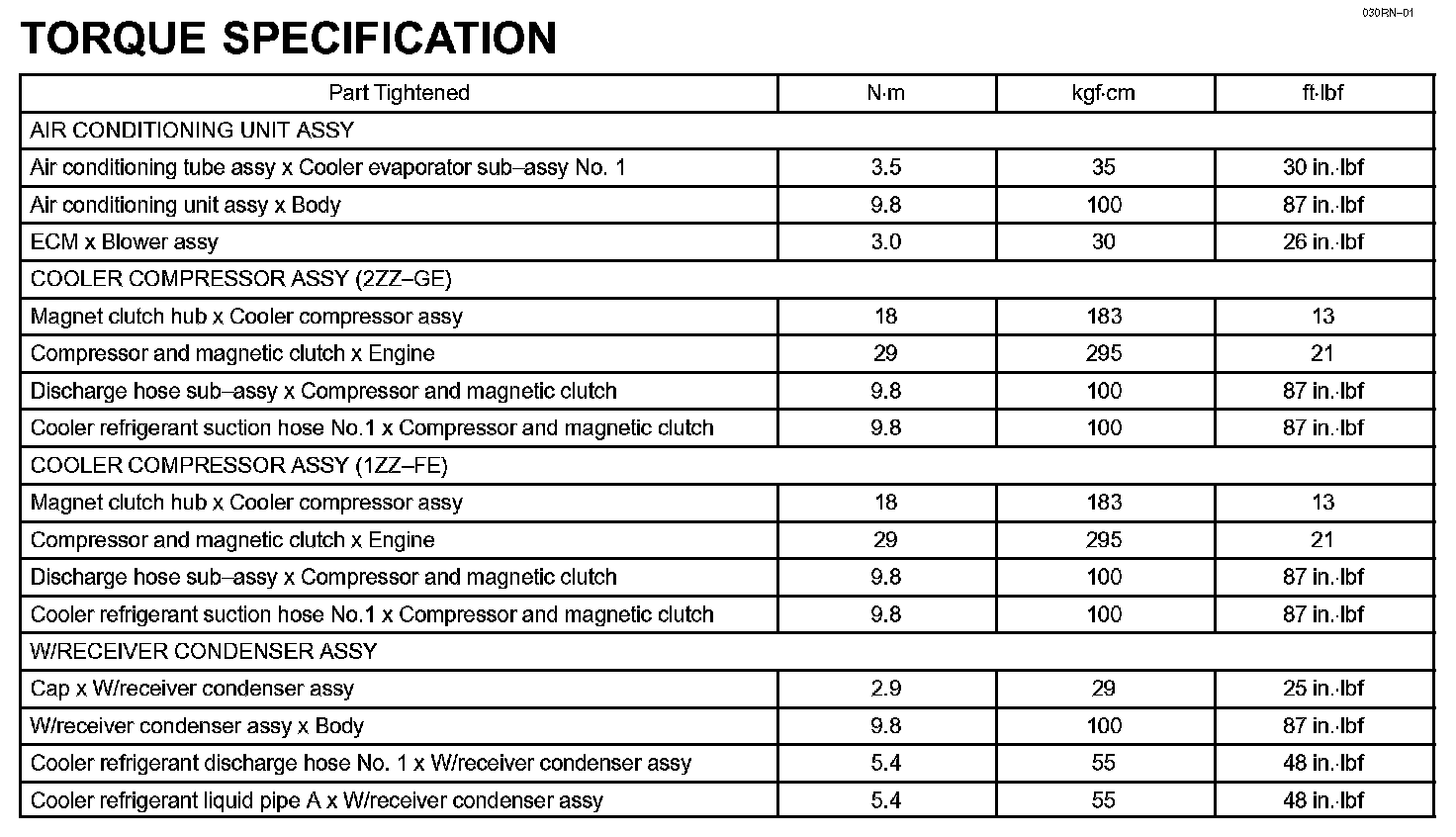

Heater & Air Conditioner - Torque Specification:
