System Specifications

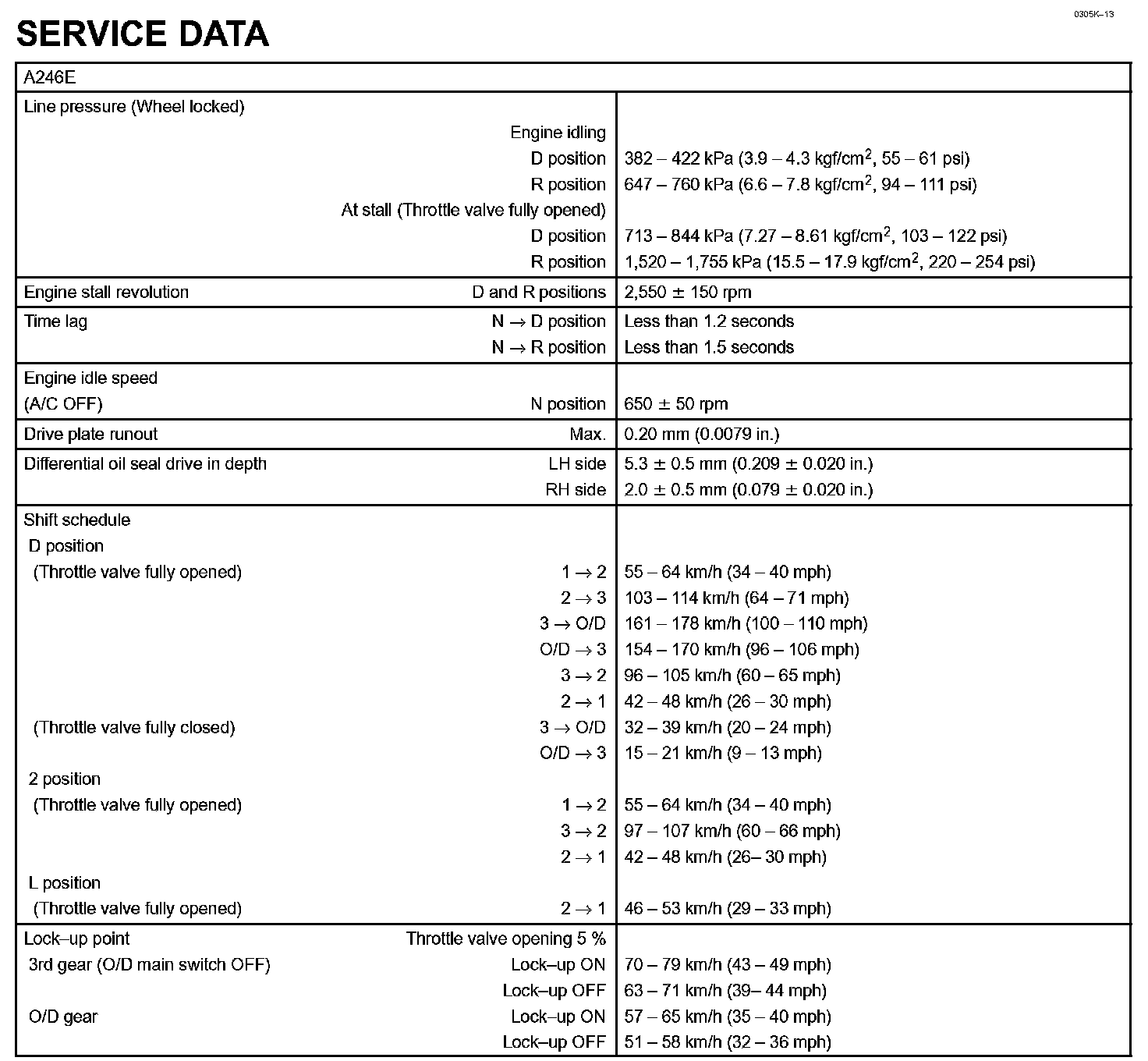

Automatic Transmission/Transaxle - Service Data:

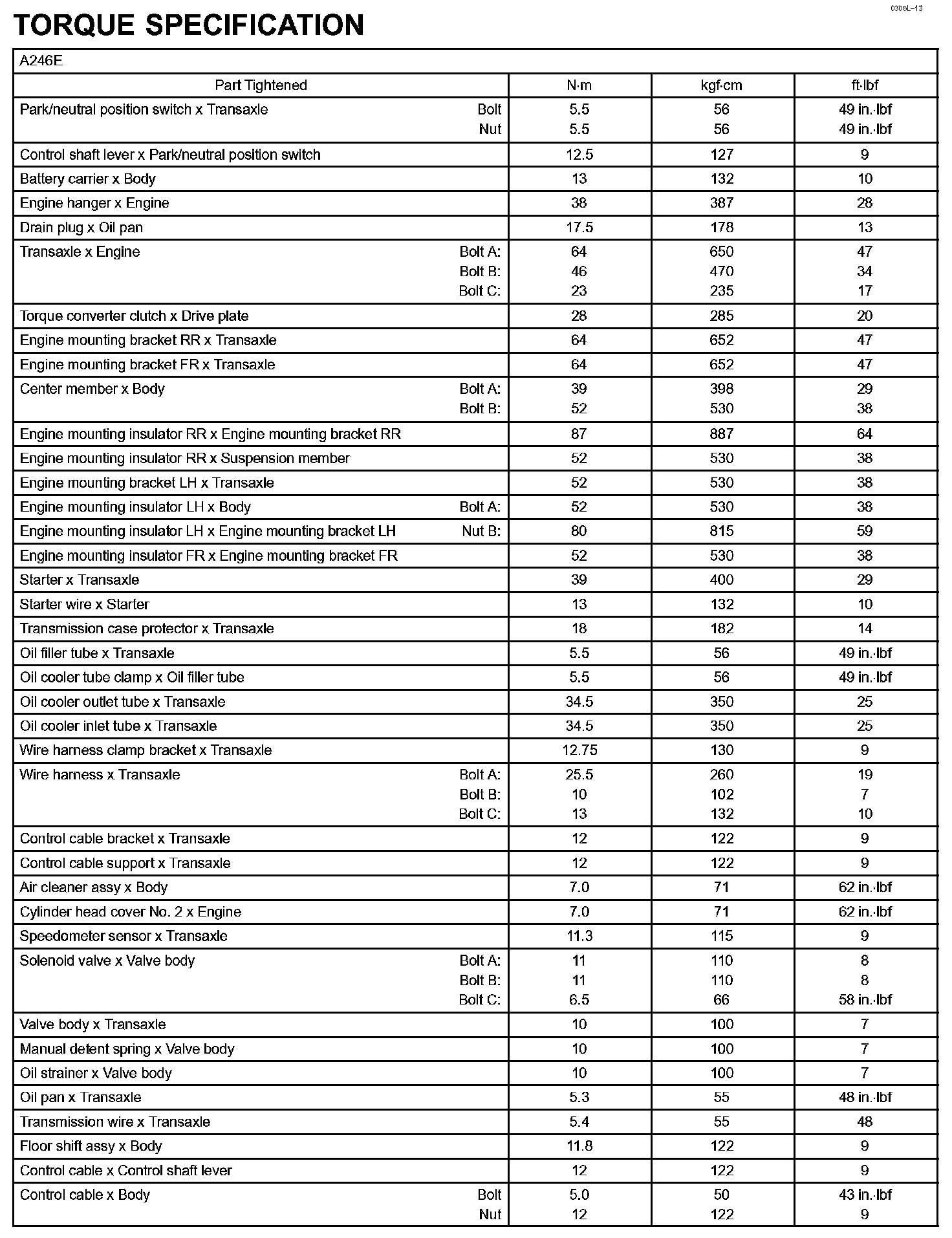

Automatic Transmission/Transaxle - Torque Specification Part 1:
