Home >> Toyota >> 2004 >> Matrix 2WD L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Electronic Brake Control Module >> Locations

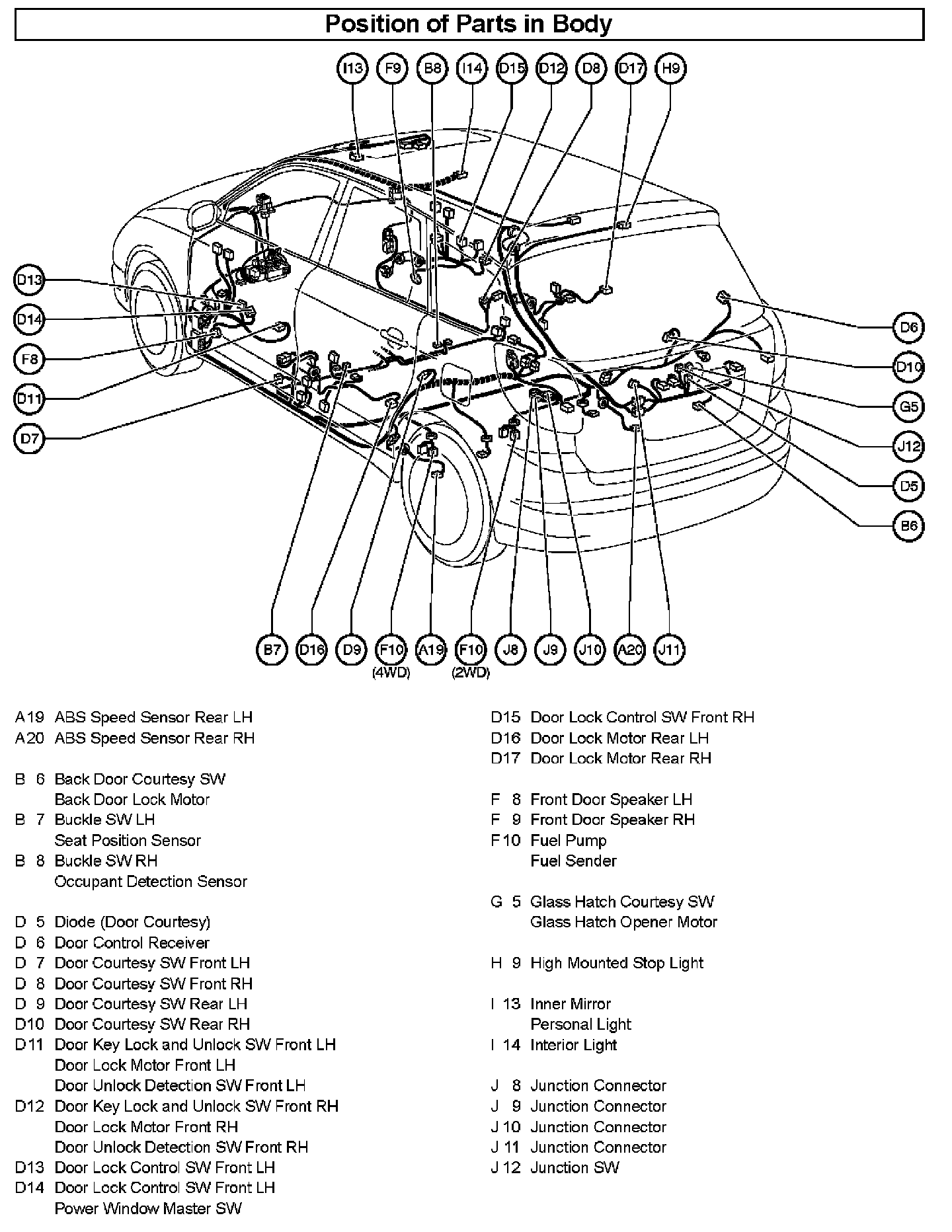

Electronic Brake Control Module: Locations

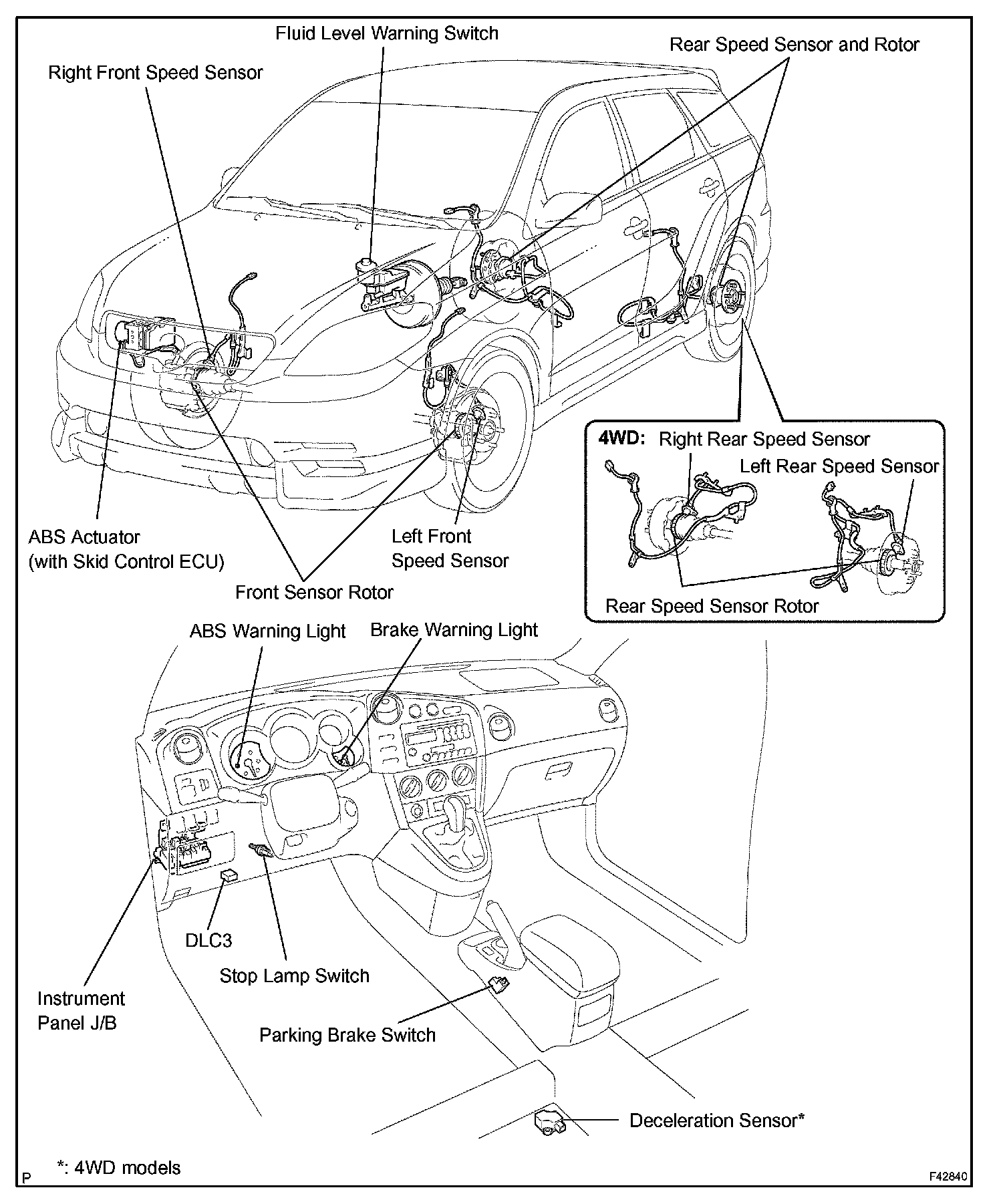

ABS With EBD System:



A/C - Ho:



ABS - Ju:
