Home >> Toyota >> 2004 >> Matrix 2WD L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Locations

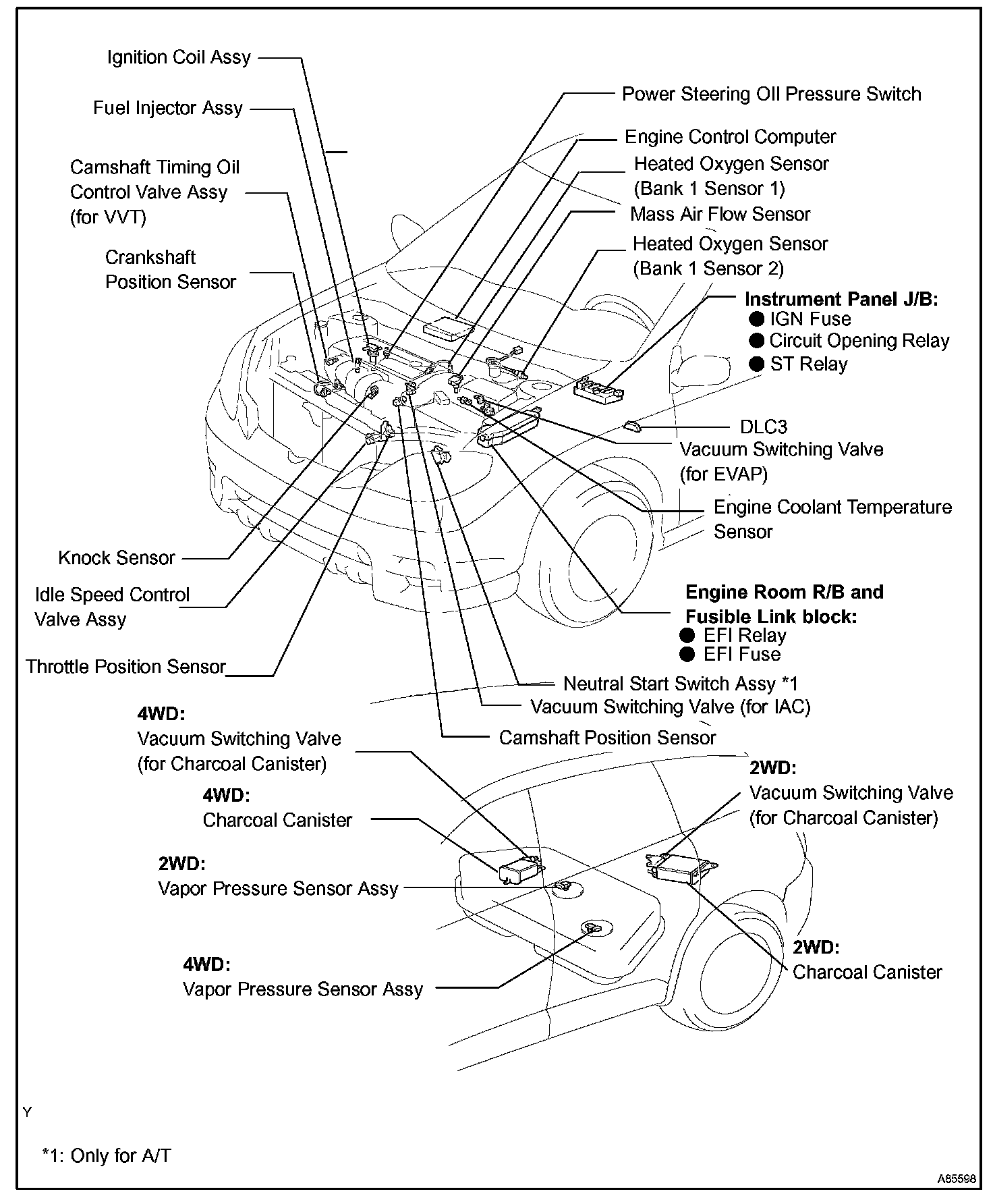

Air Flow Meter/Sensor: Locations

SFI System (1ZZ-FE):
