Pinout Values and Diagnostic Parameters

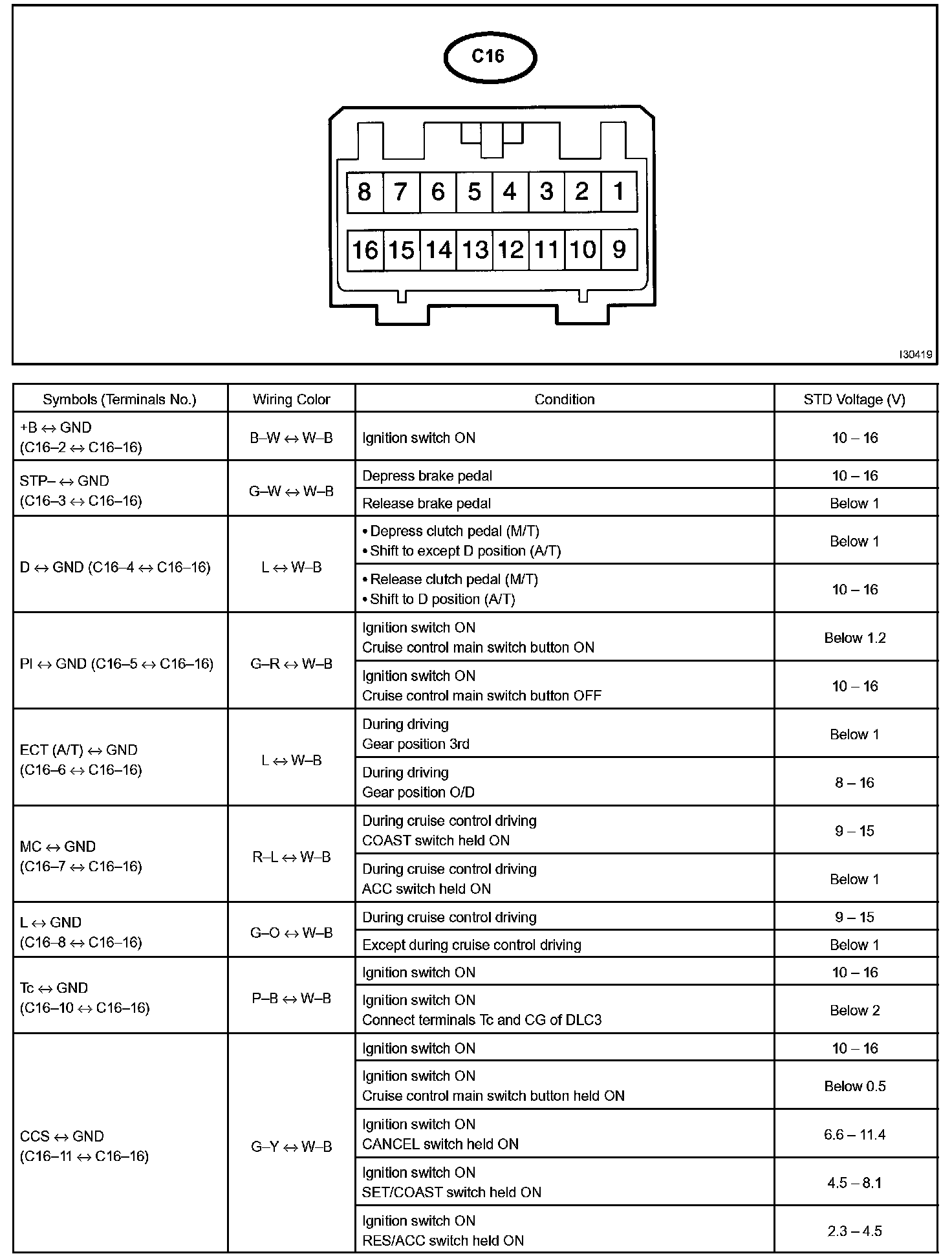

Terminals Of ECU/Pinouts Part 1:



Terminals Of ECU/Pinouts Part 2:



Oscilloscope Waveform:
