Home >> Toyota >> 2004 >> Corolla L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle >> System Specifications

System Specifications

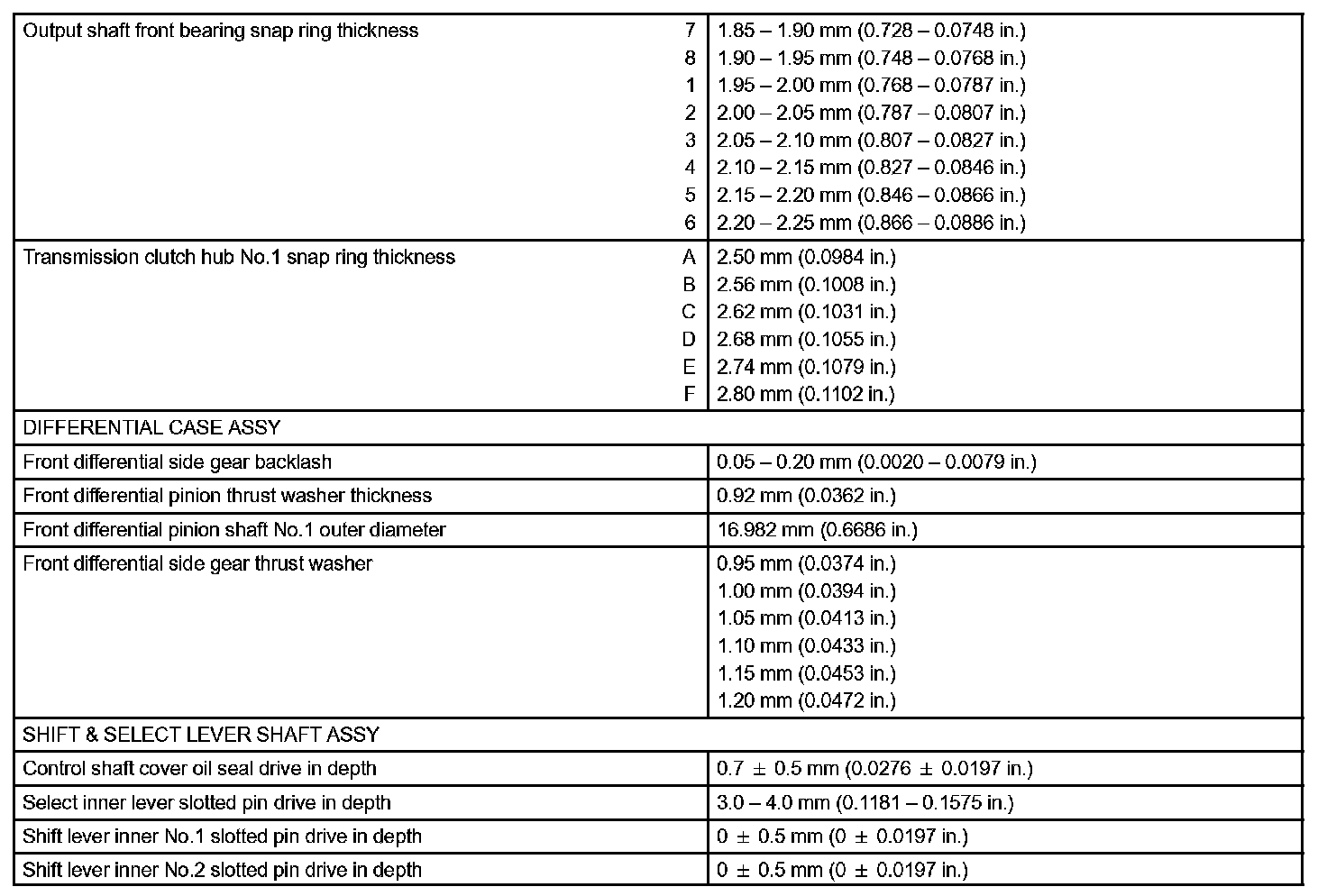

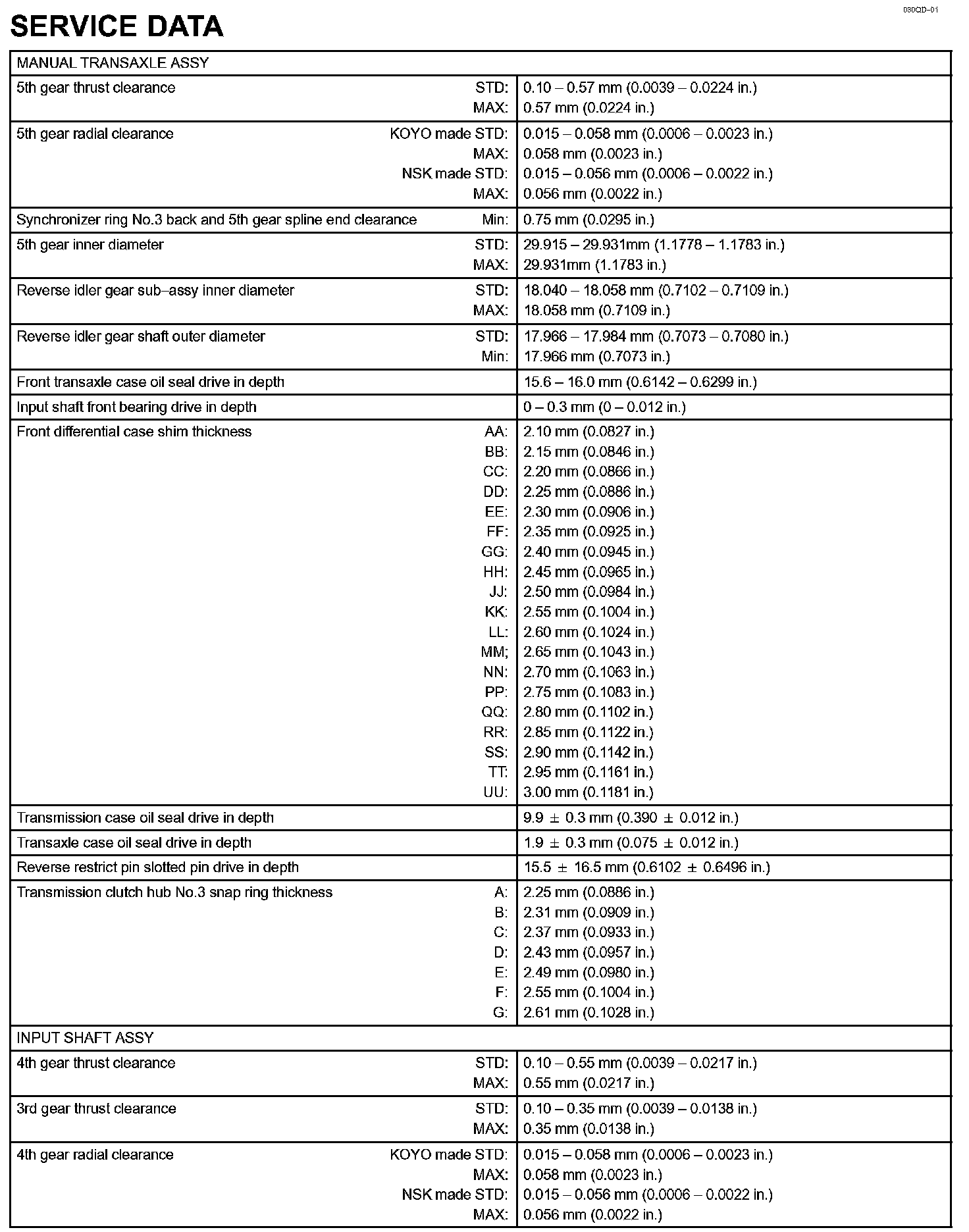

Manual Transmission/Transaxle - Service Data Part 1:

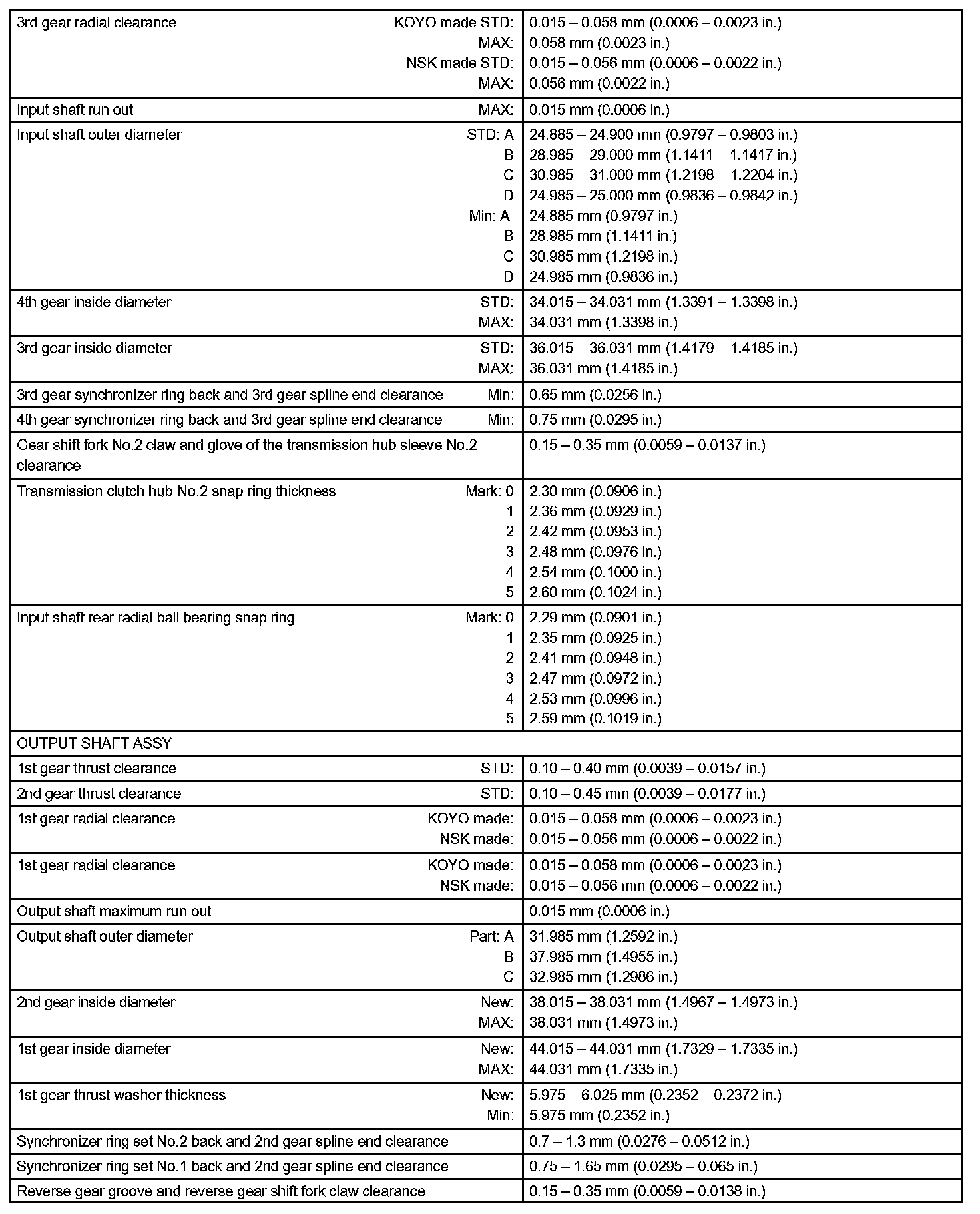

Manual Transmission/Transaxle - Service Data Part 2:




Manual Transmission/Transaxle - Service Data Part 3:

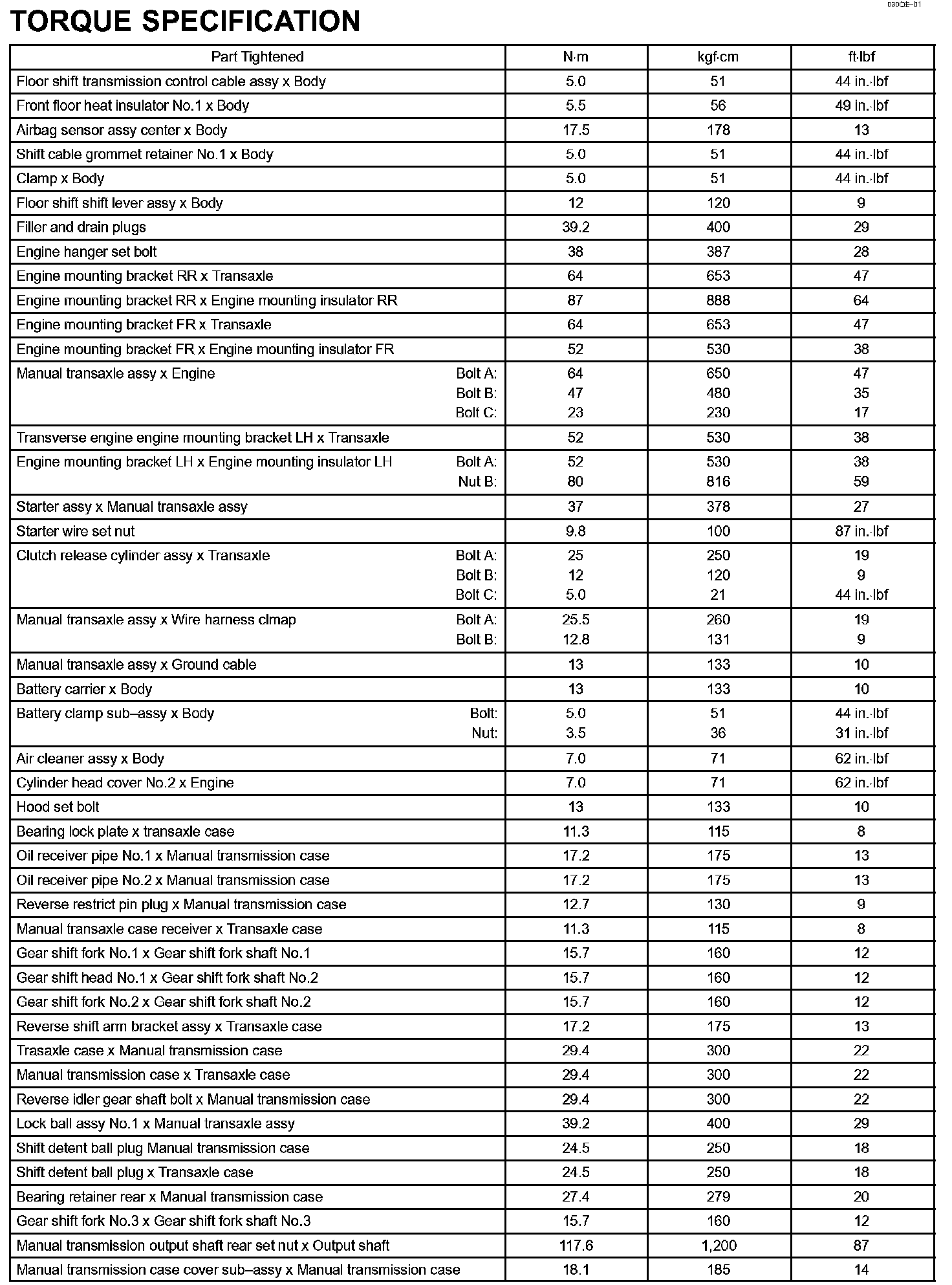

Manual Transmission/Transaxle - Torque Specification Part 1:




Manual Transmission/Transaxle - Torque Specification Part 2:
