Air Bag Control Module

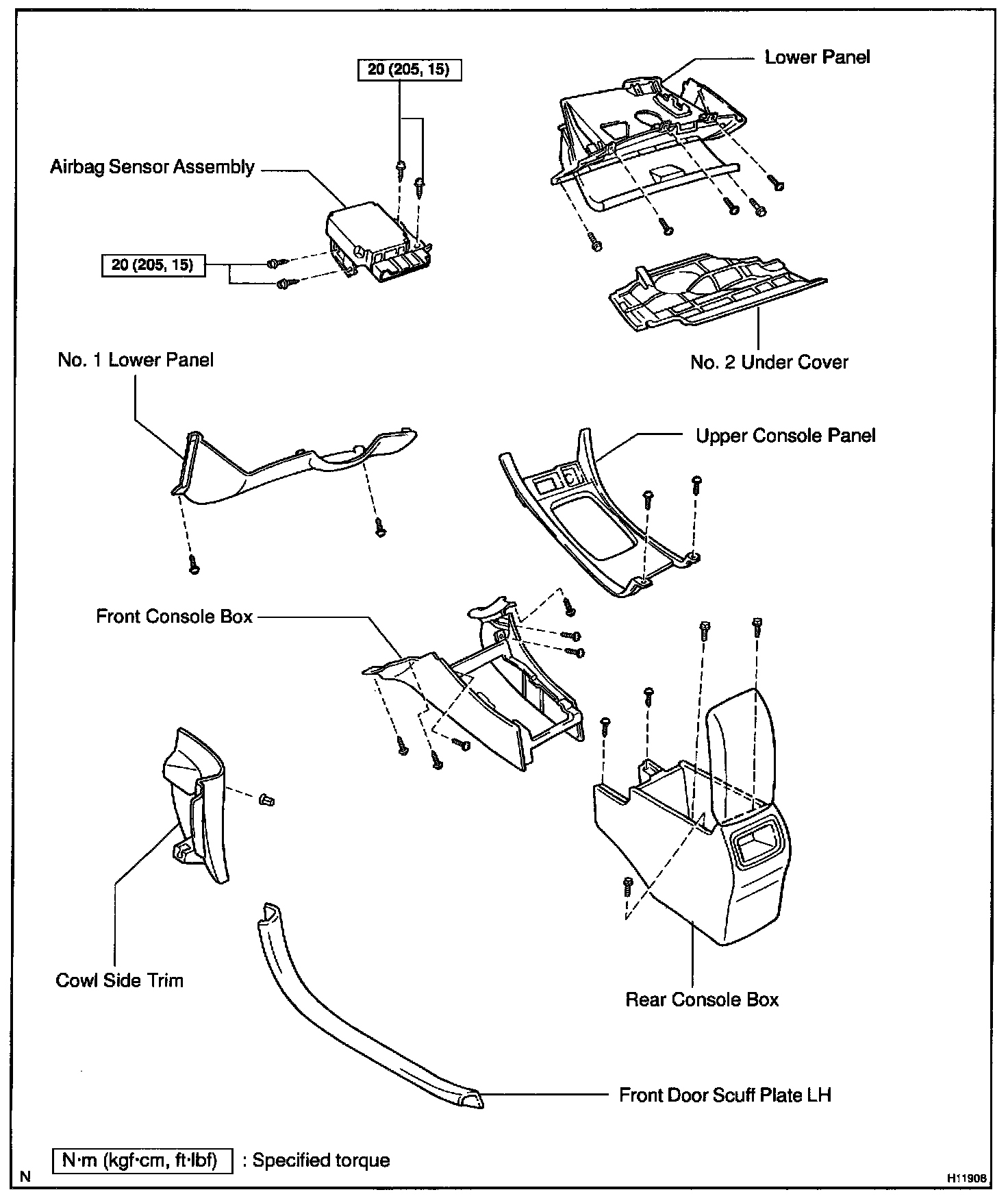

Airbag Sensor Assembly (Floor Shift):

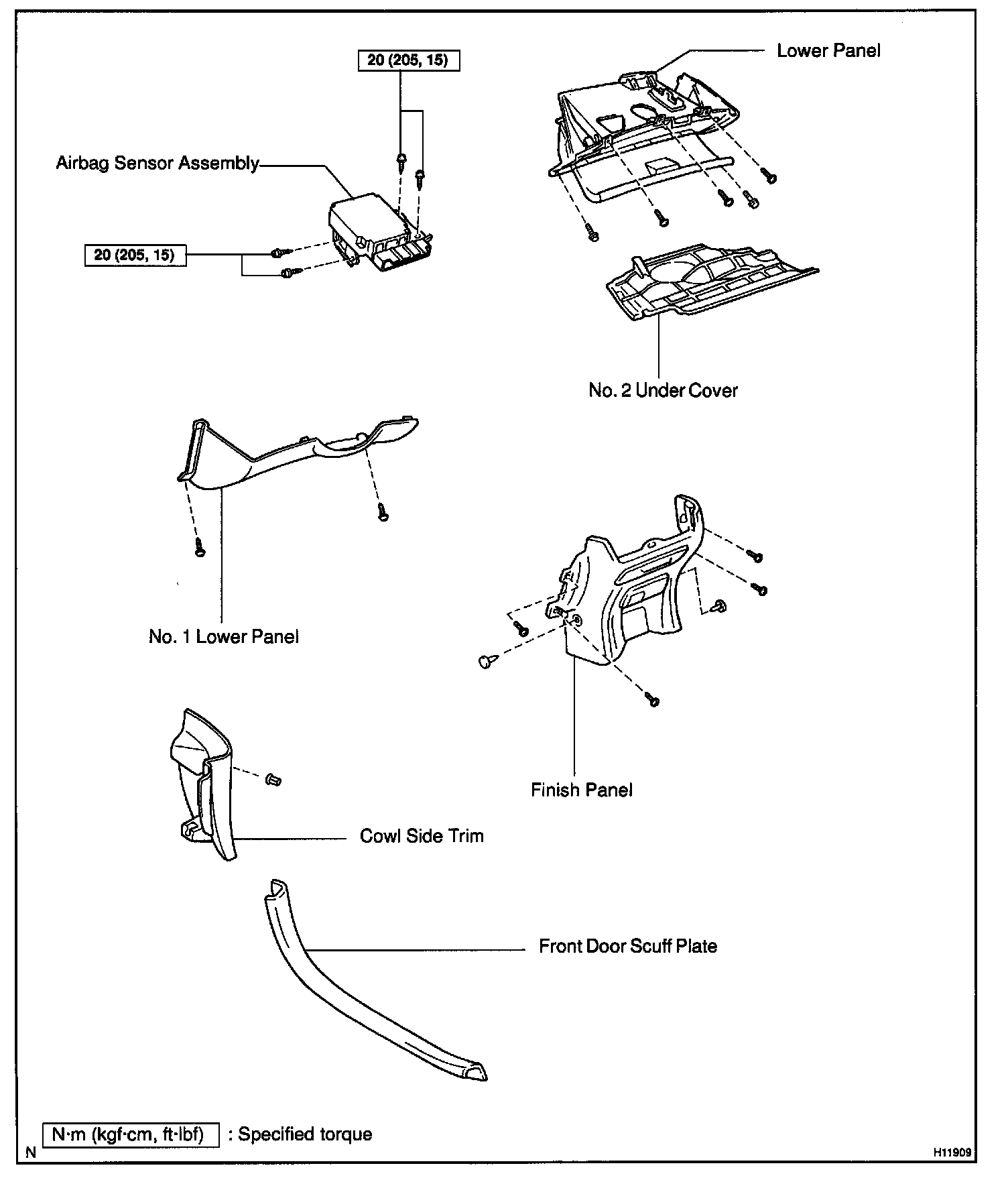

Airbag Sensor Assembly (Column Shift):

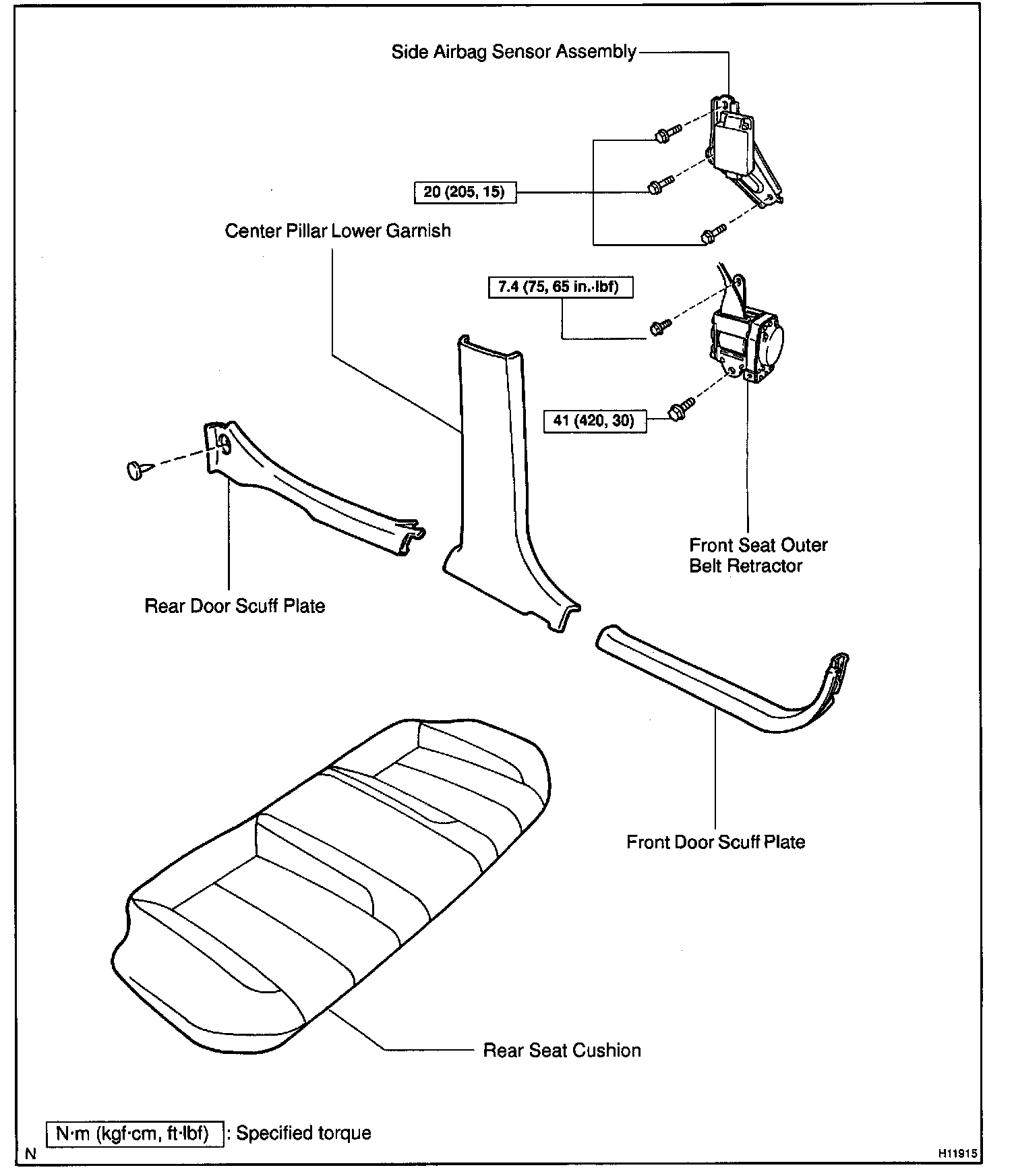

Side Airbag Sensor Assembly:
