Data Link Connector: Locations

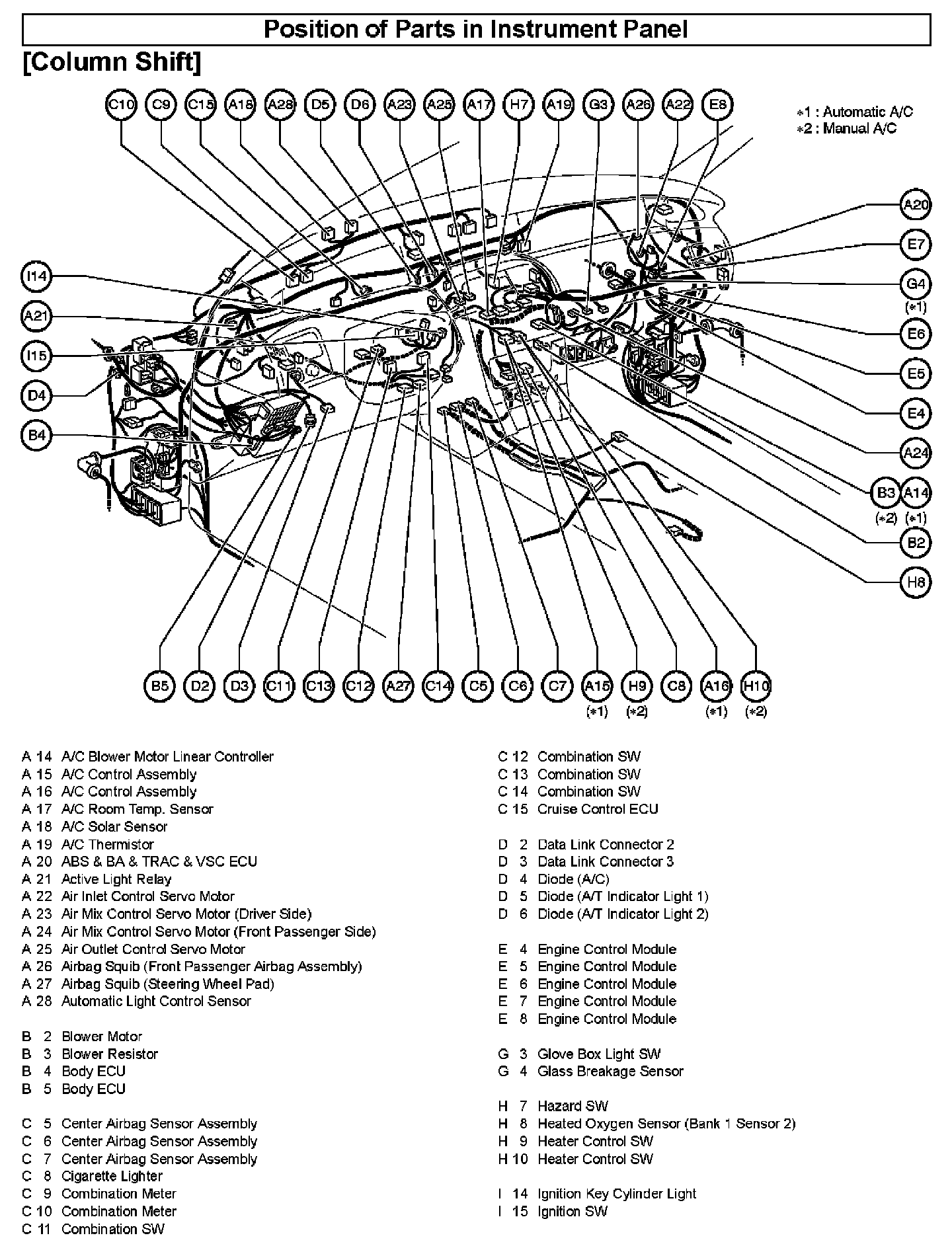

A/C - Ig:

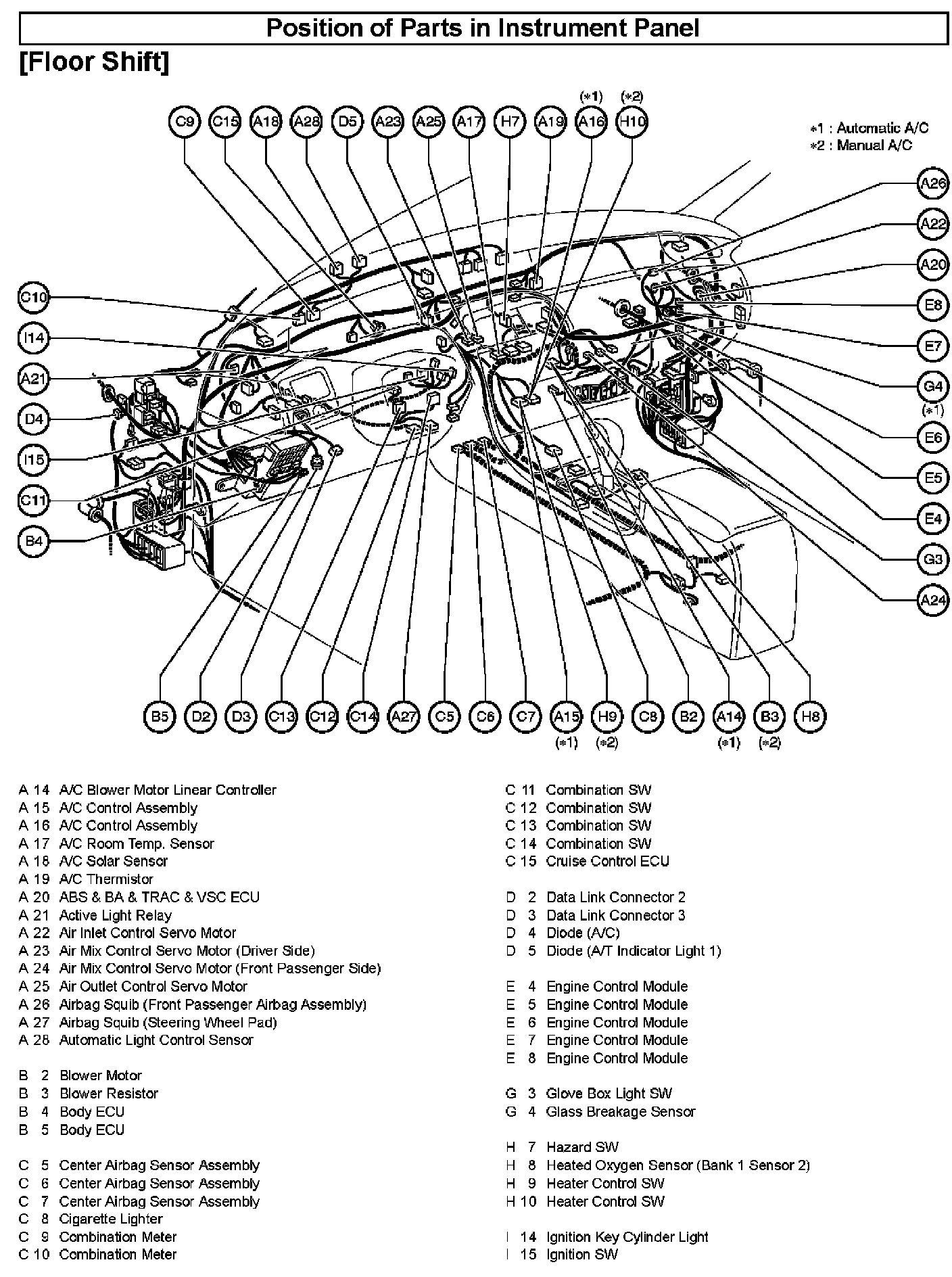

A/C - Ig:

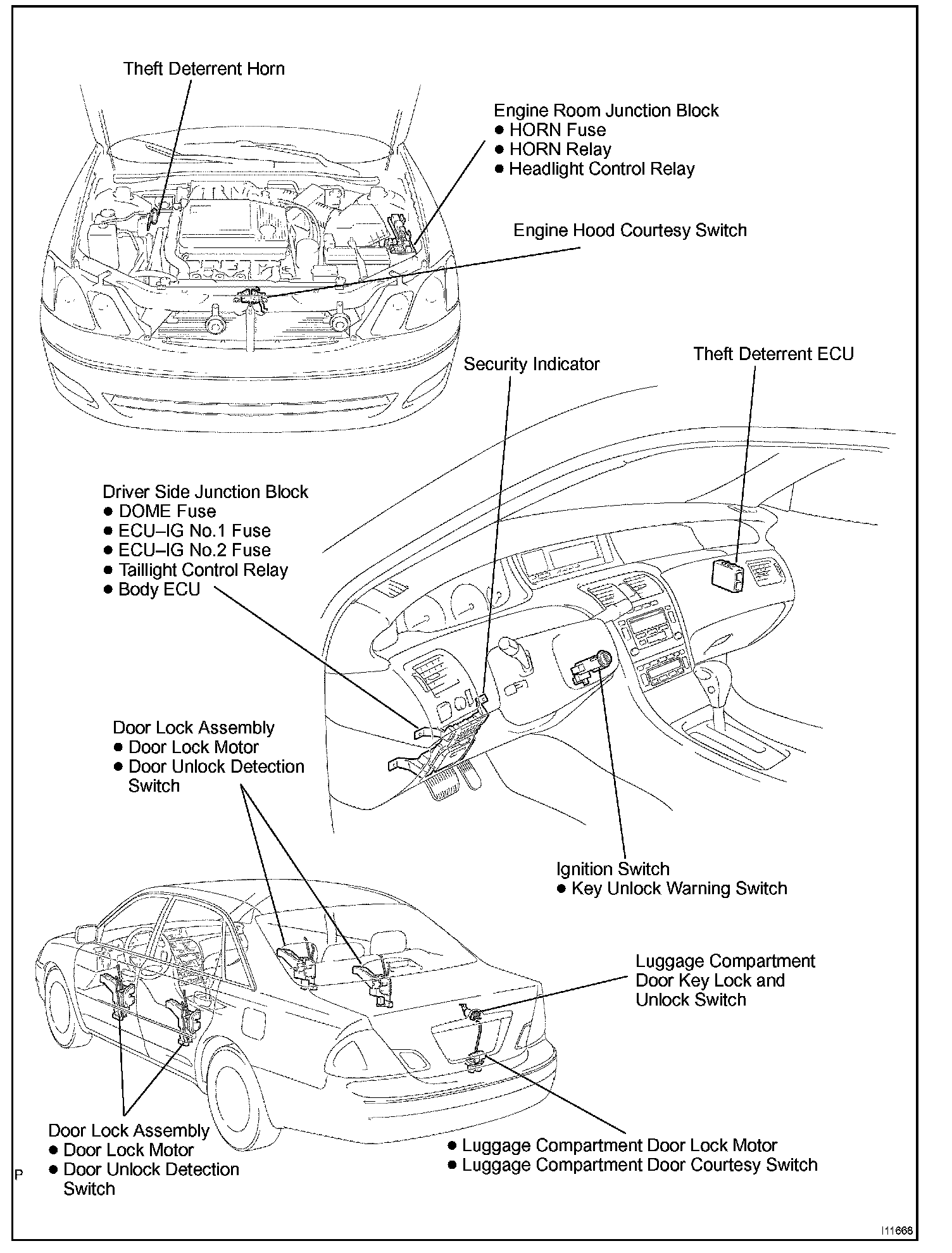

Theft Deterrent System:

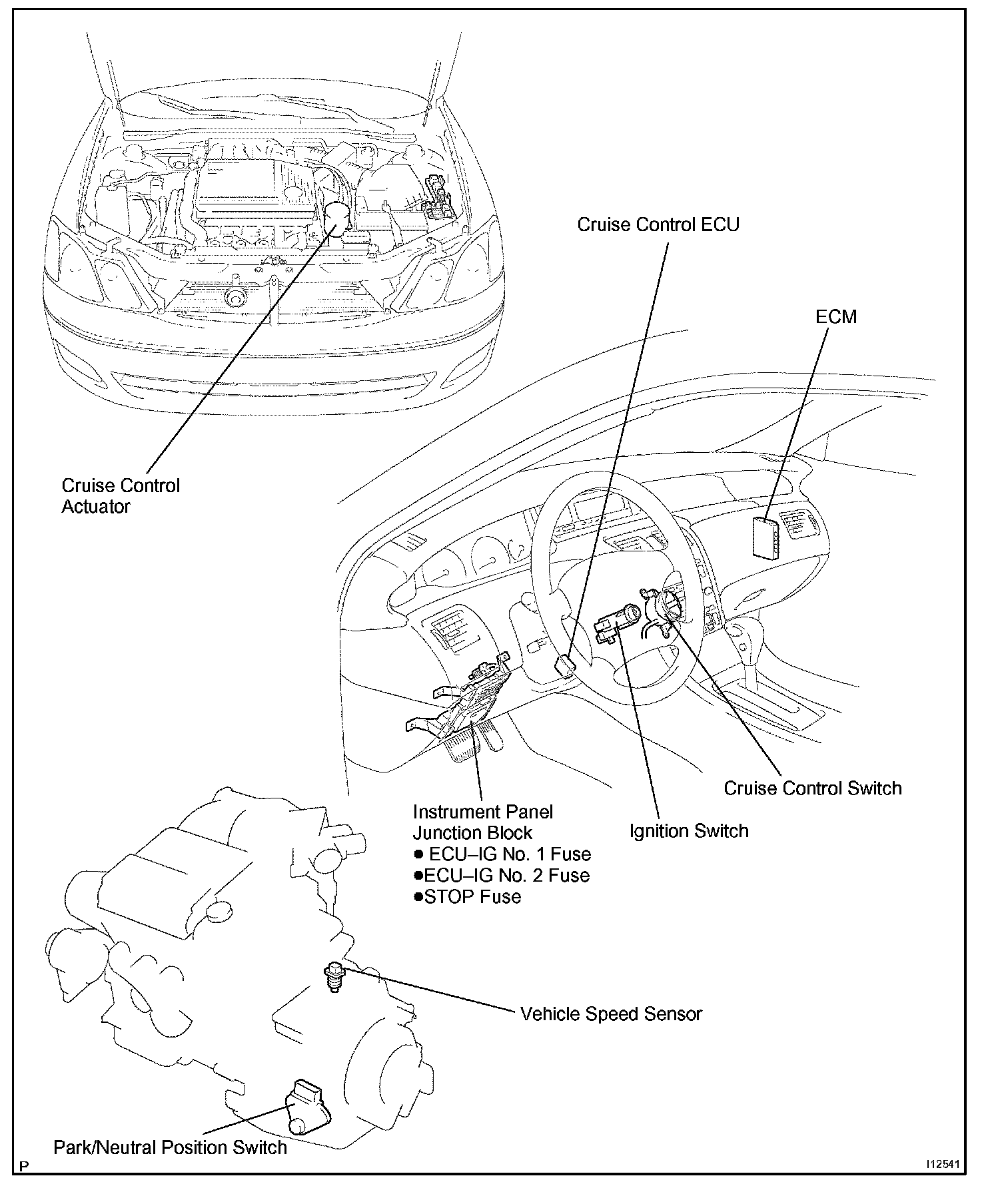

Cruise Control System:

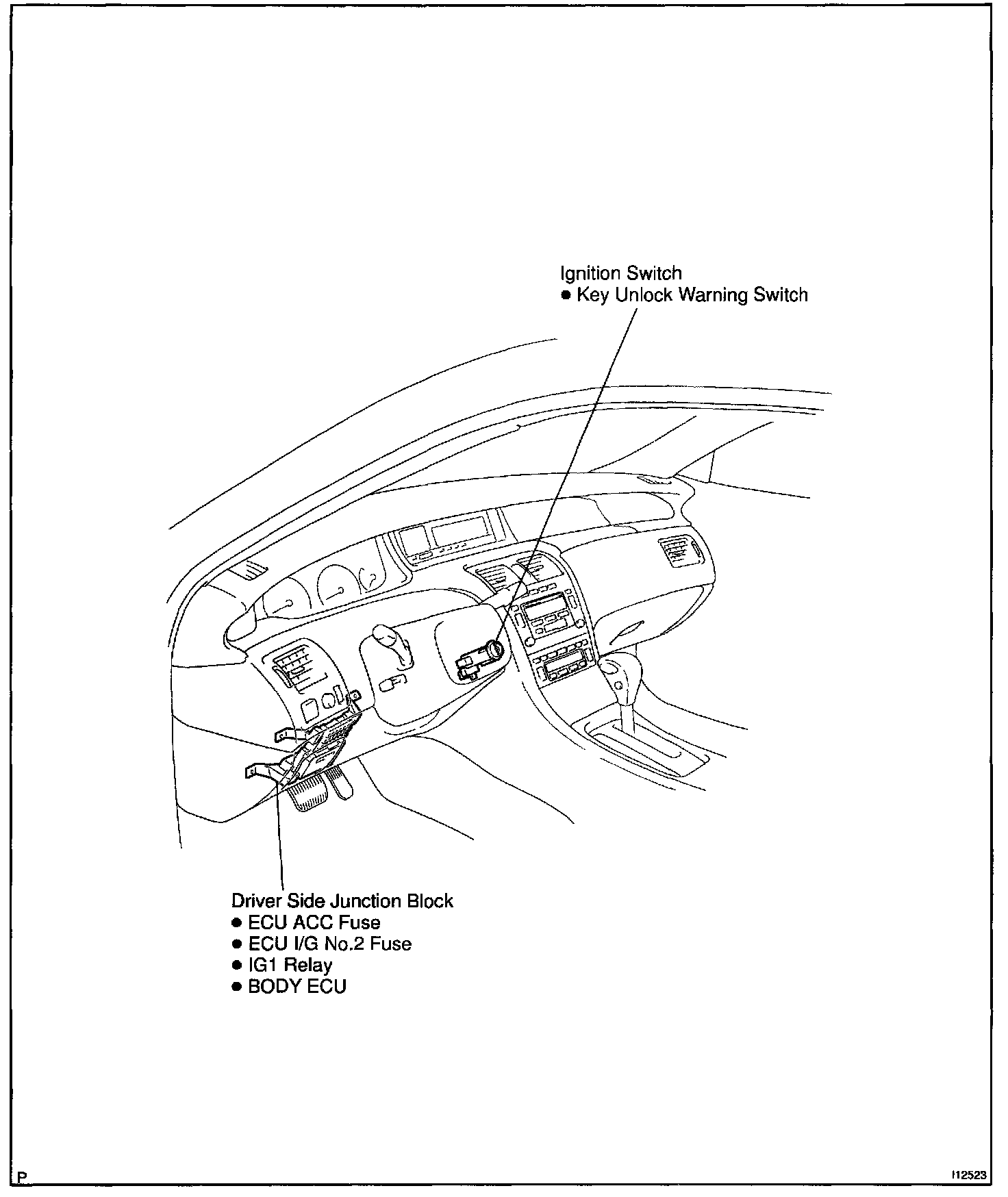

Ignition Switch And Key Unlock Warning Switch:
