Air Flow Meter/Sensor: Service and Repair

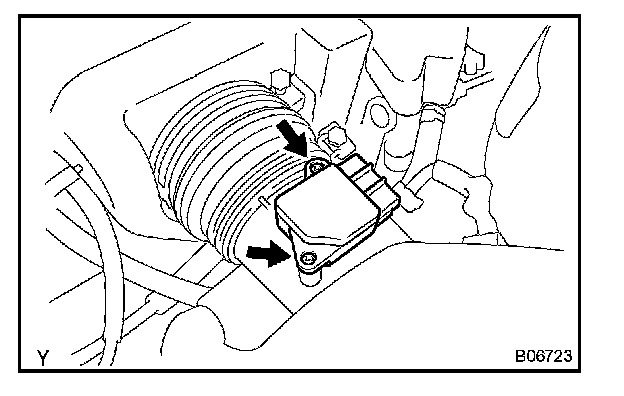

REMOVALREMOVE MAF METER
a. Disconnect the MAF meter connector.
b. Remove the 2 screws, MAF meter and O-ring.
HINT: At the time of installation use a new O-ring.
INSTALLATION
Installation is in the reverse order of removal.
