Home >> Toyota >> 2004 >> Avalon V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column

Steering Column

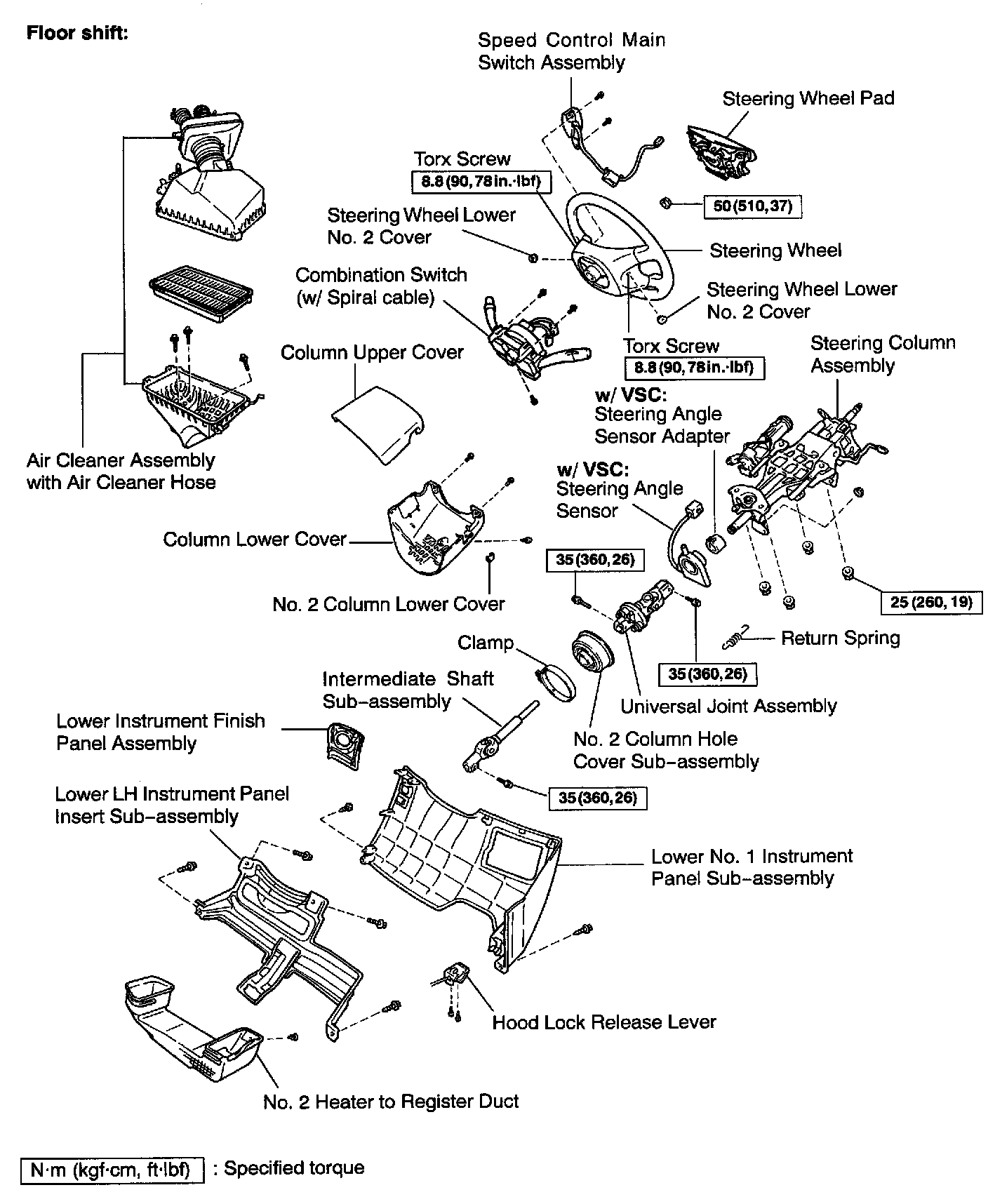

Part 1 Of 3:

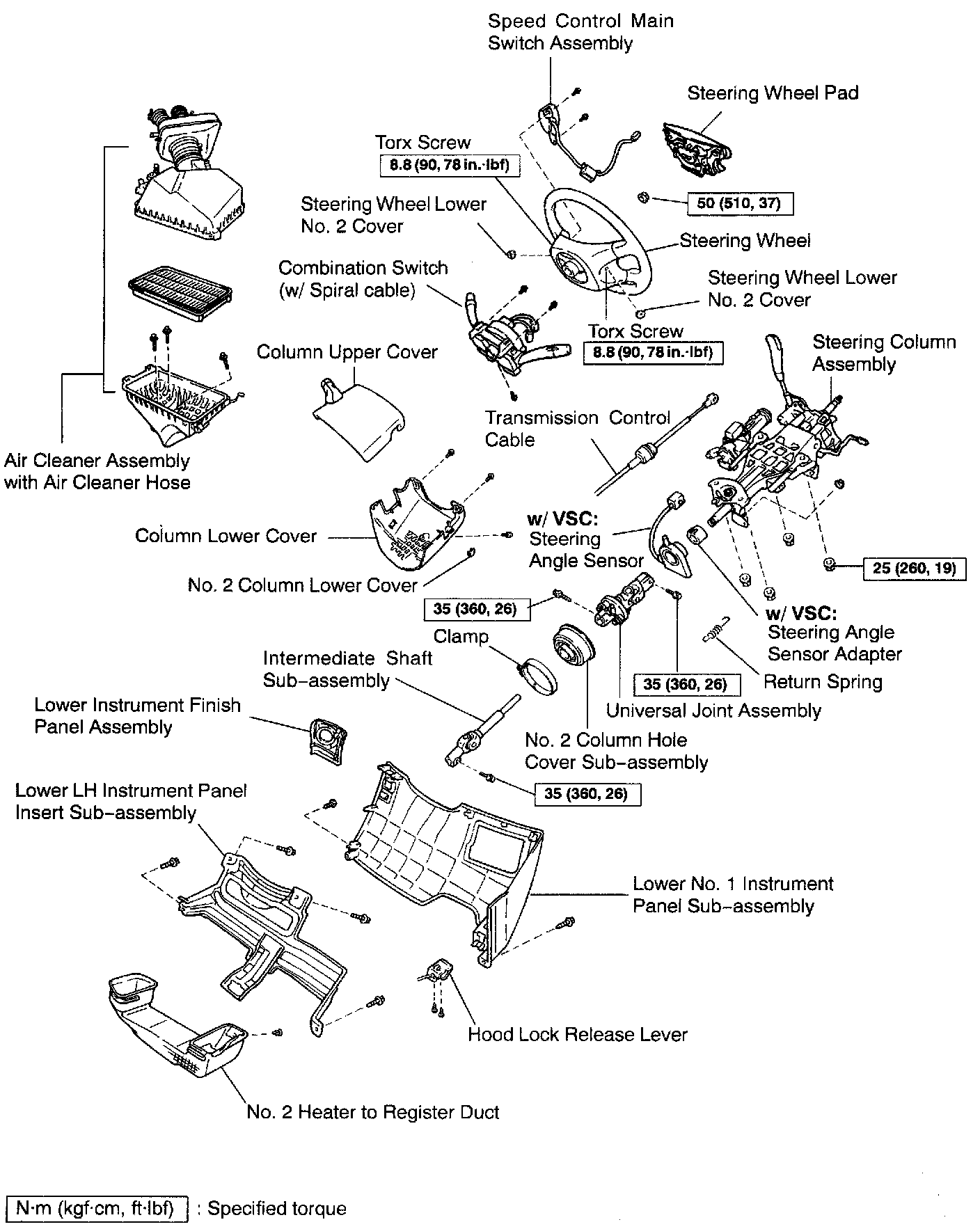

Part 2 Of 3:




Part 3 Of 3:





TILT STEERING COLUMN REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
