Home >> Toyota >> 2004 >> Avalon V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Cruise Control >> Cruise Control Module >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

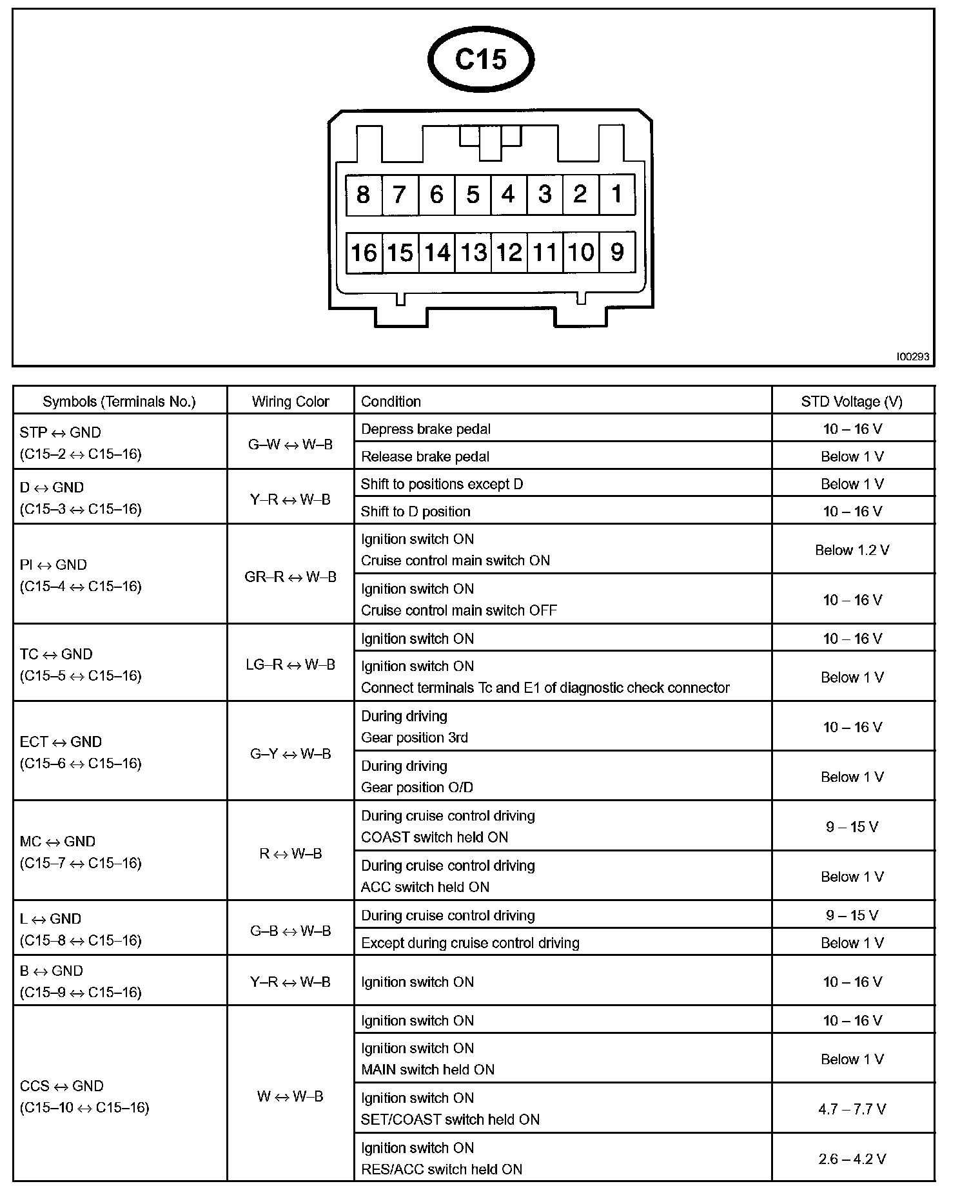

Terminals Of ECU/Pinouts Part 1:

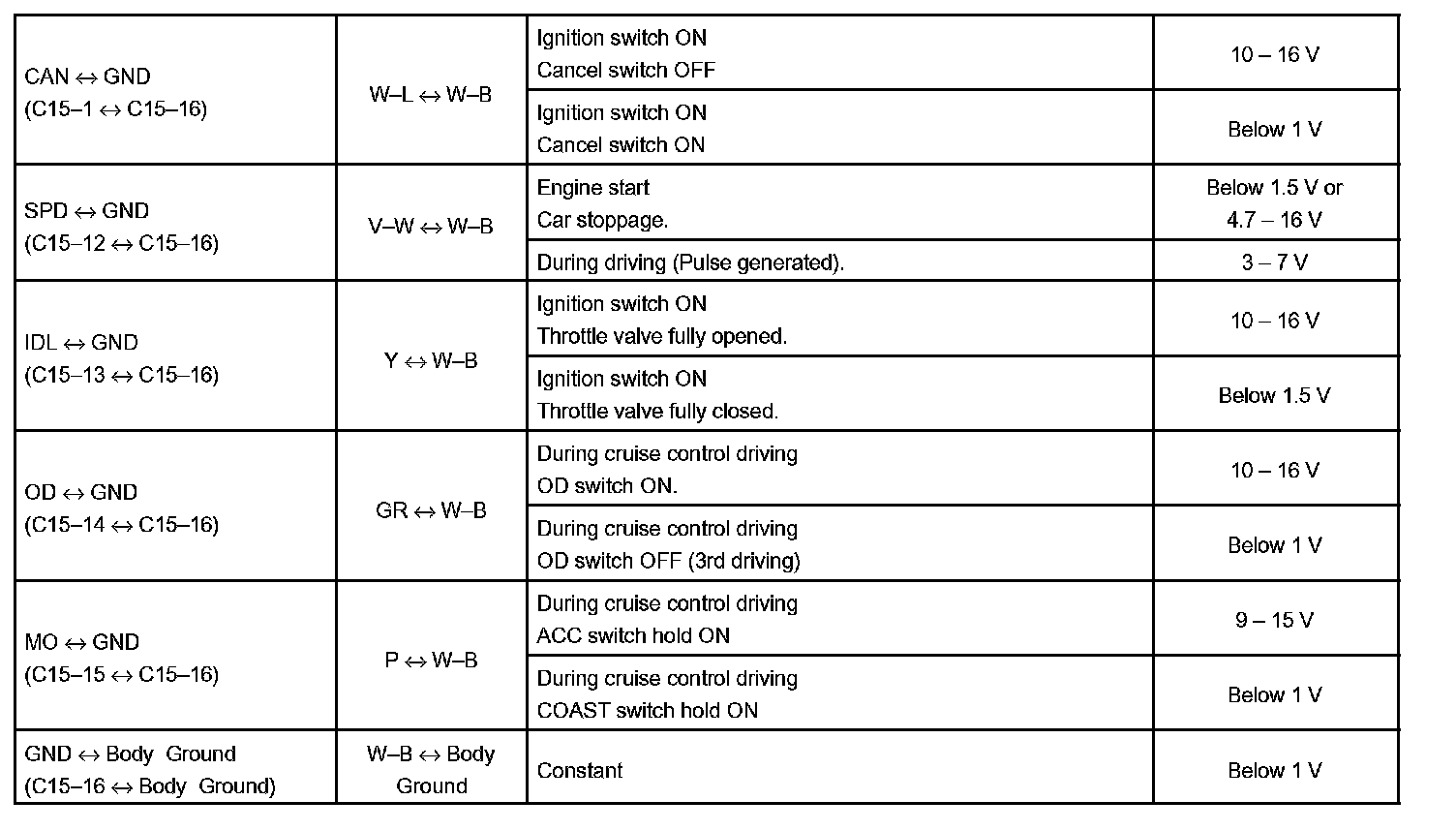

Terminals Of ECU/Pinouts Part 2:
