Traction Control Module: Testing and Inspection

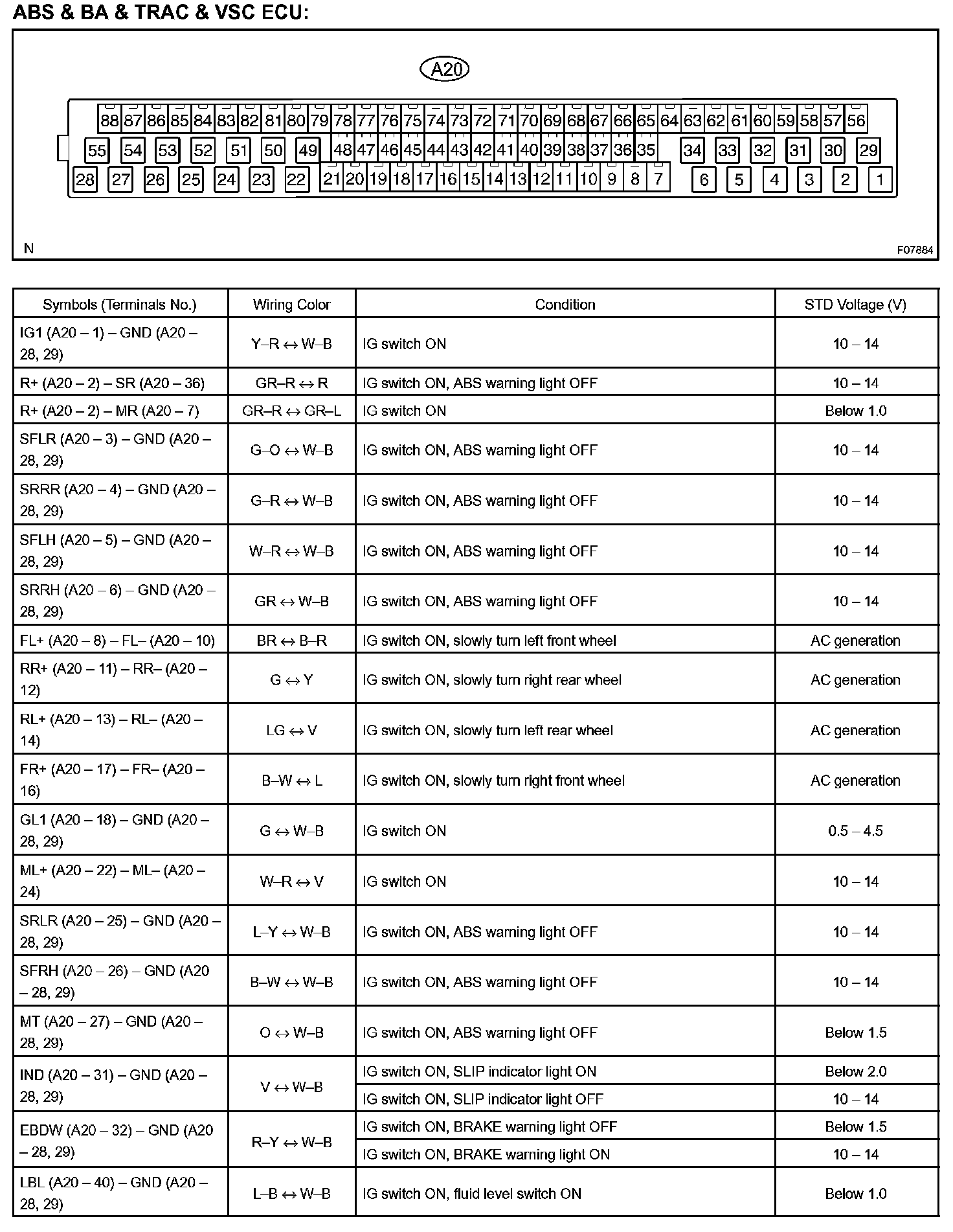

Terminals Of ECU/Pinouts - ABS & BA & TRAC & VSC ECU Part 1:

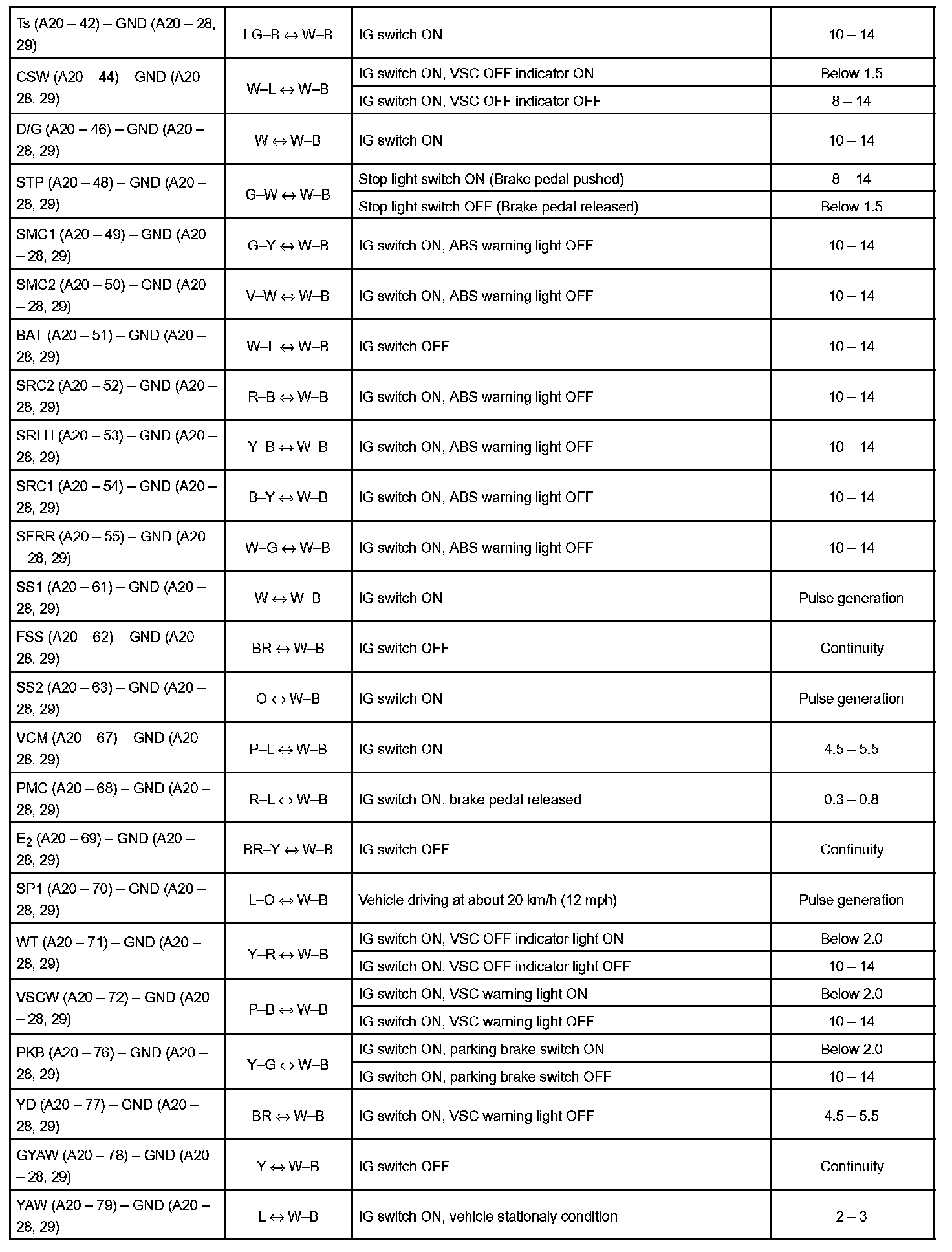

Terminals Of ECU/Pinouts - ABS & BA & TRAC & VSC ECU Part 2:

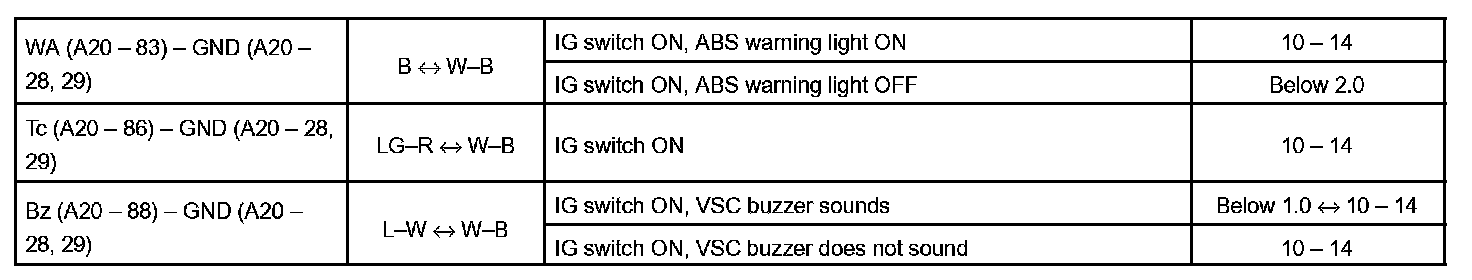

Terminals Of ECU/Pinouts - ABS & BA & TRAC & VSC ECU Part 3:

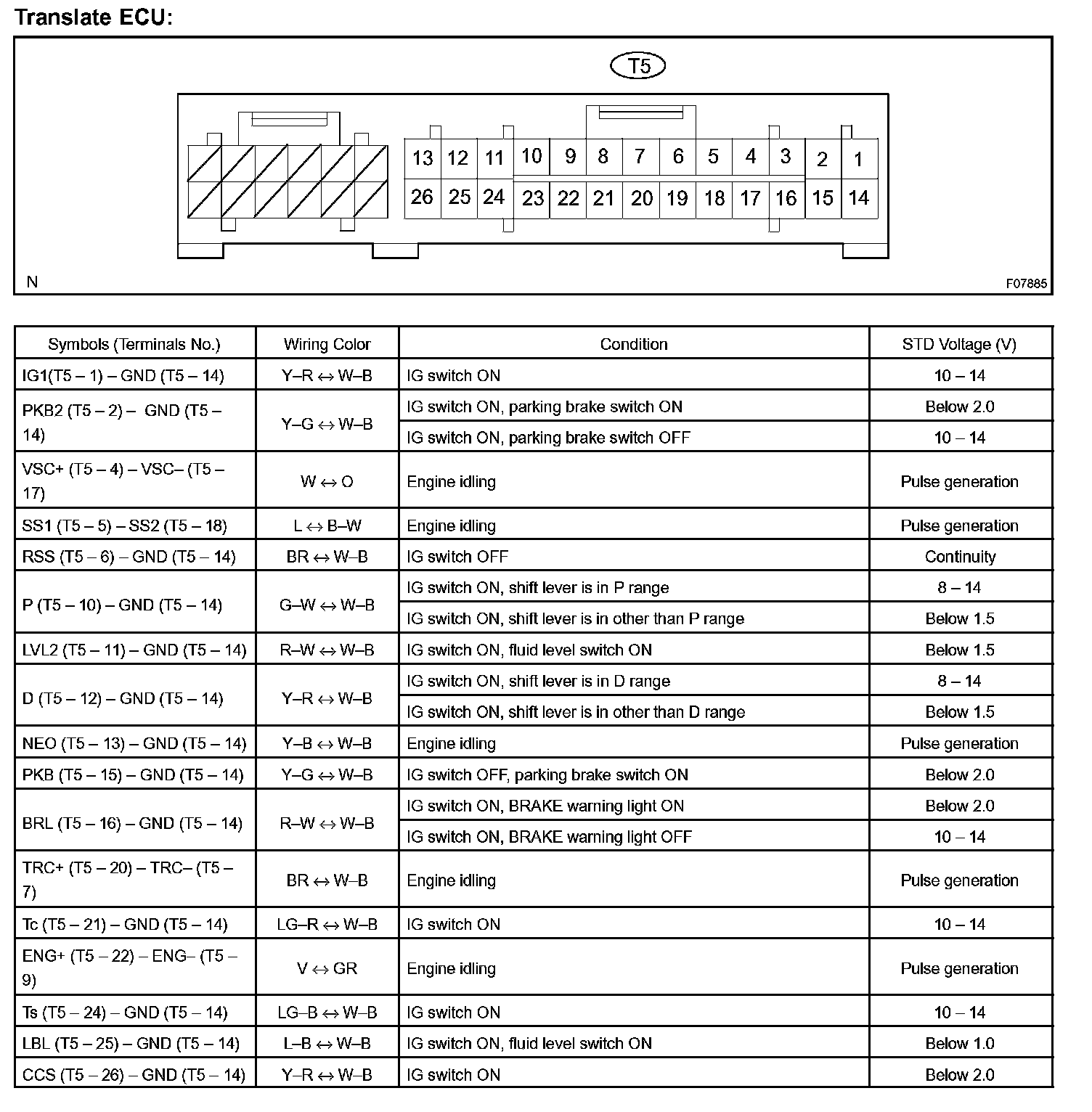

Terminals Of ECU/Pinouts - Translate ECU:
