Home
>>
Toyota
>>
2004
>>
Avalon V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Power Seat Control Module
>>
Locations
>>
Component Locations
Component Locations

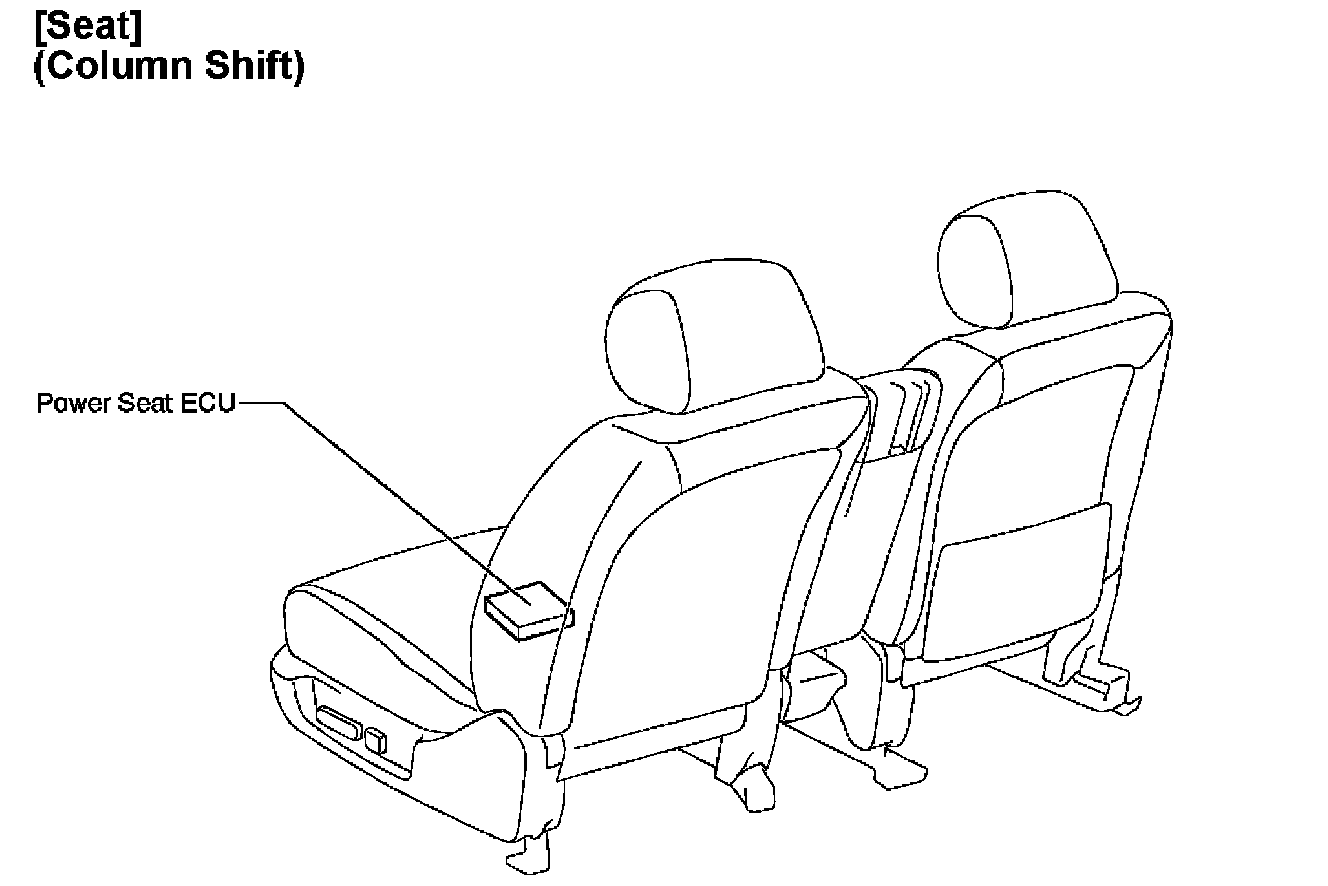

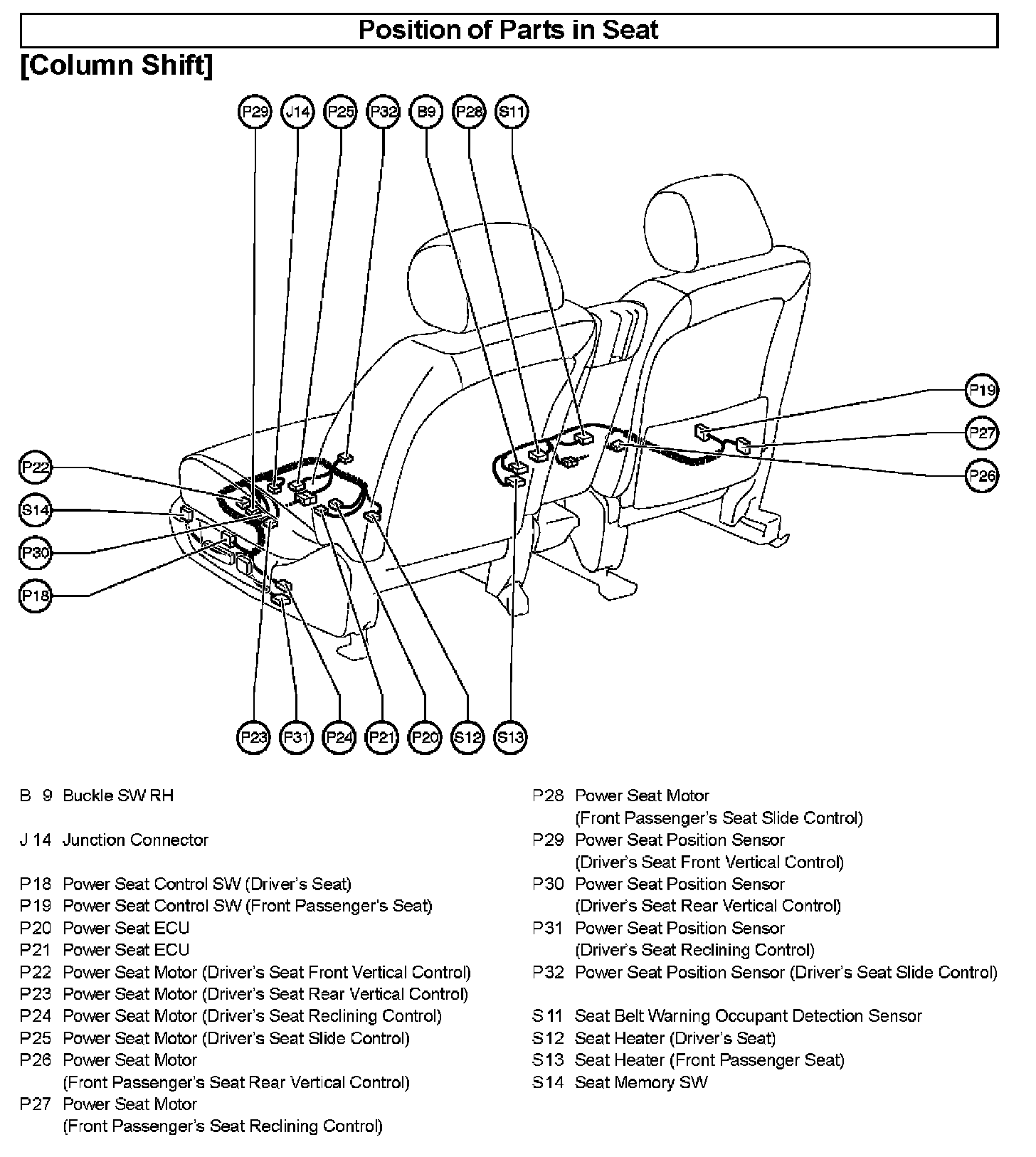

Seat - Column Shift:

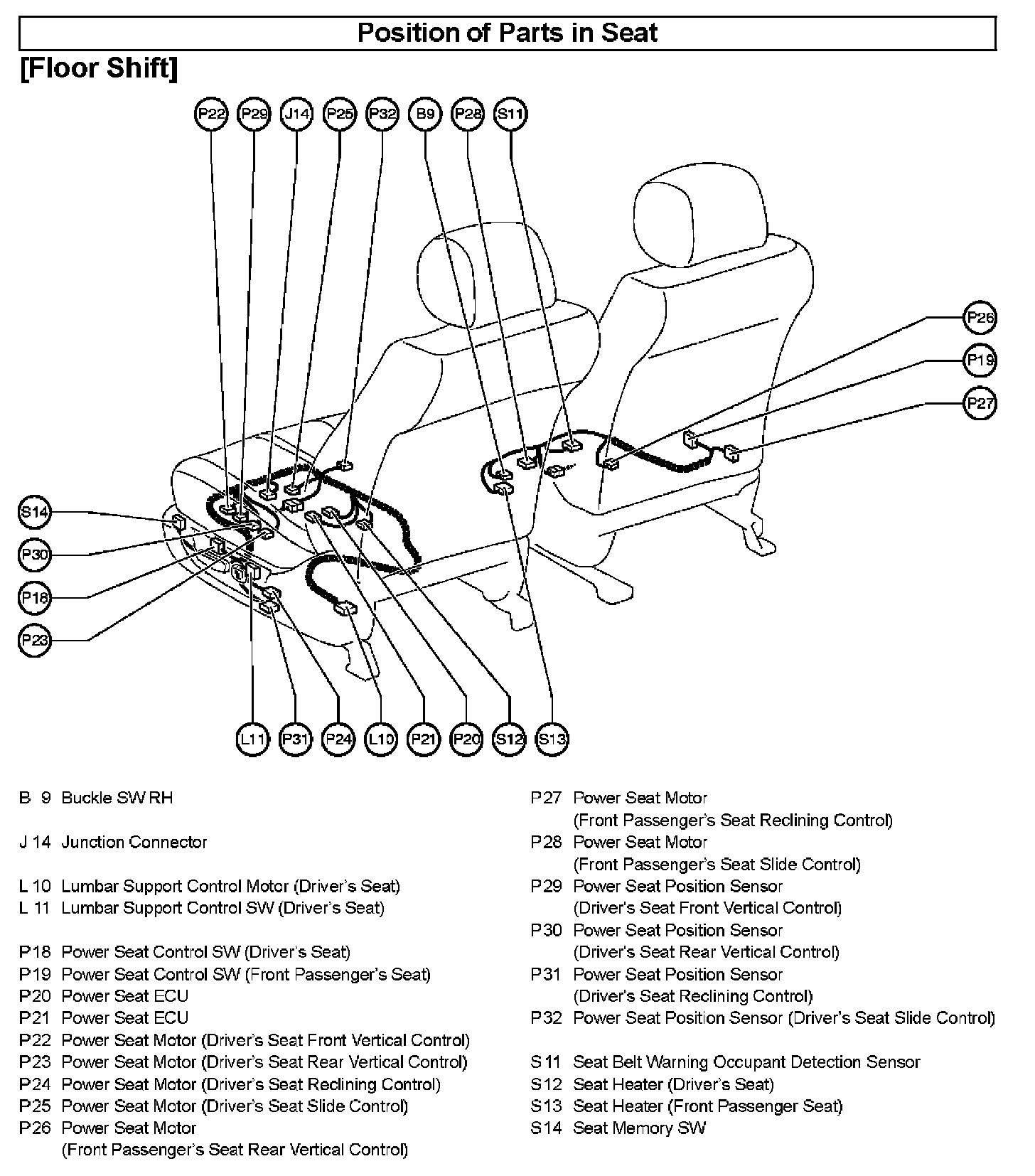

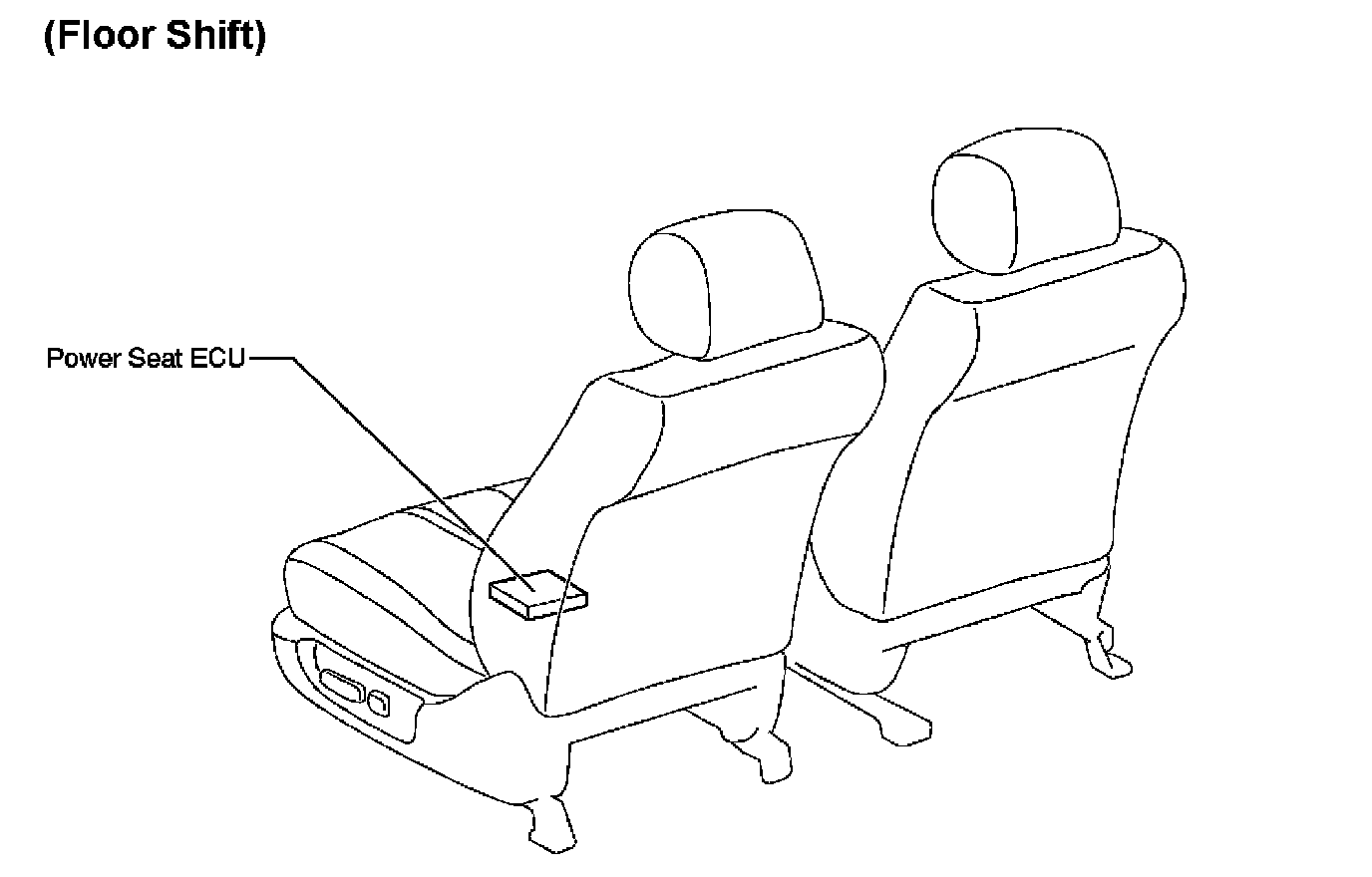

Seat - Floor Shift:
Bu - Se:
Bu - Se:
Power Seat Control System:
