Home >> Toyota >> 2003 >> RAV4 2WD L4-2.0L (1AZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Oil Pump, Engine

Oil Pump, Engine

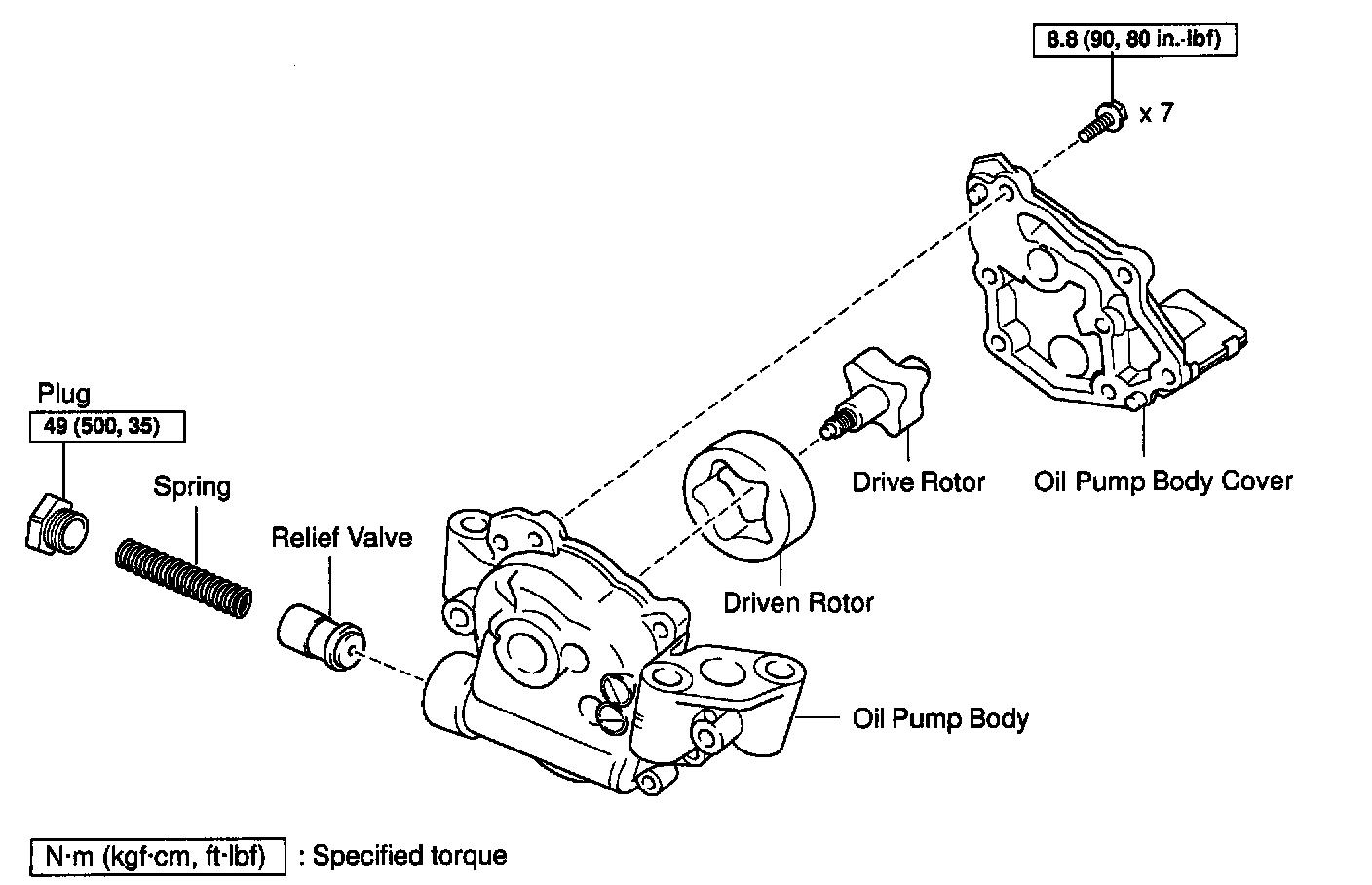

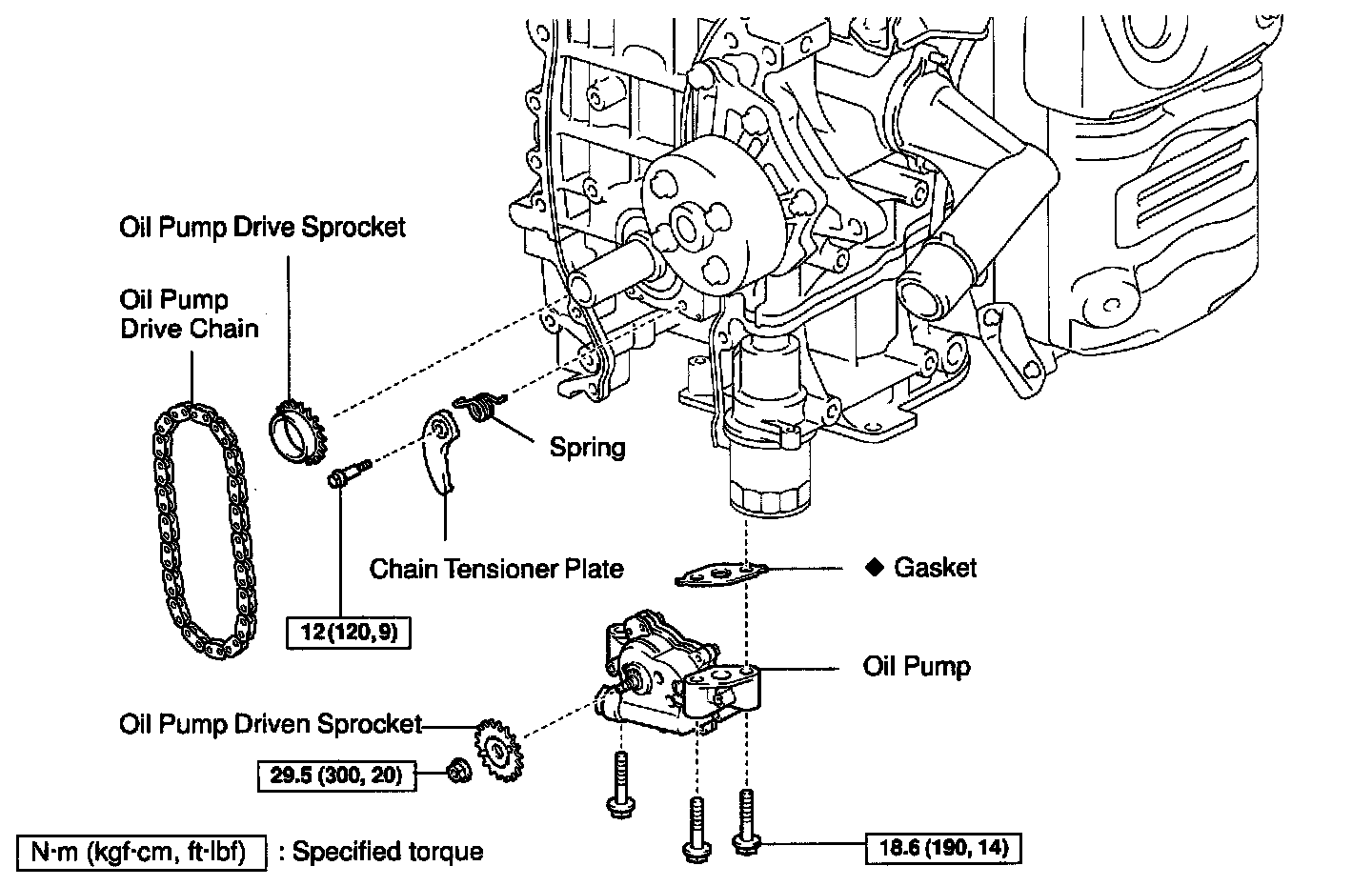

OIL PUMP REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
