RAV4 2WD L4-2.0L (1AZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Cylinder Block Assembly
Cylinder Block Assembly

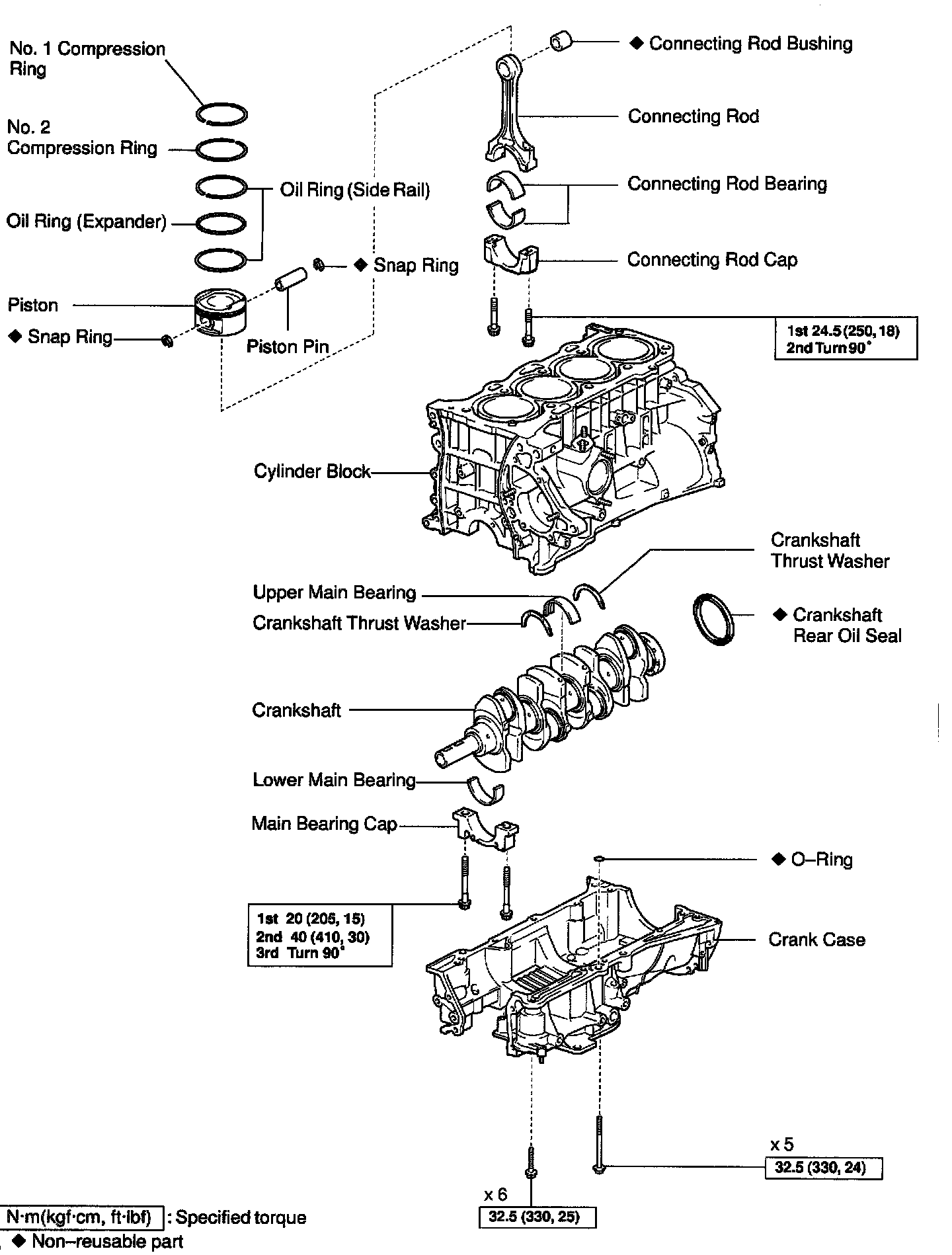

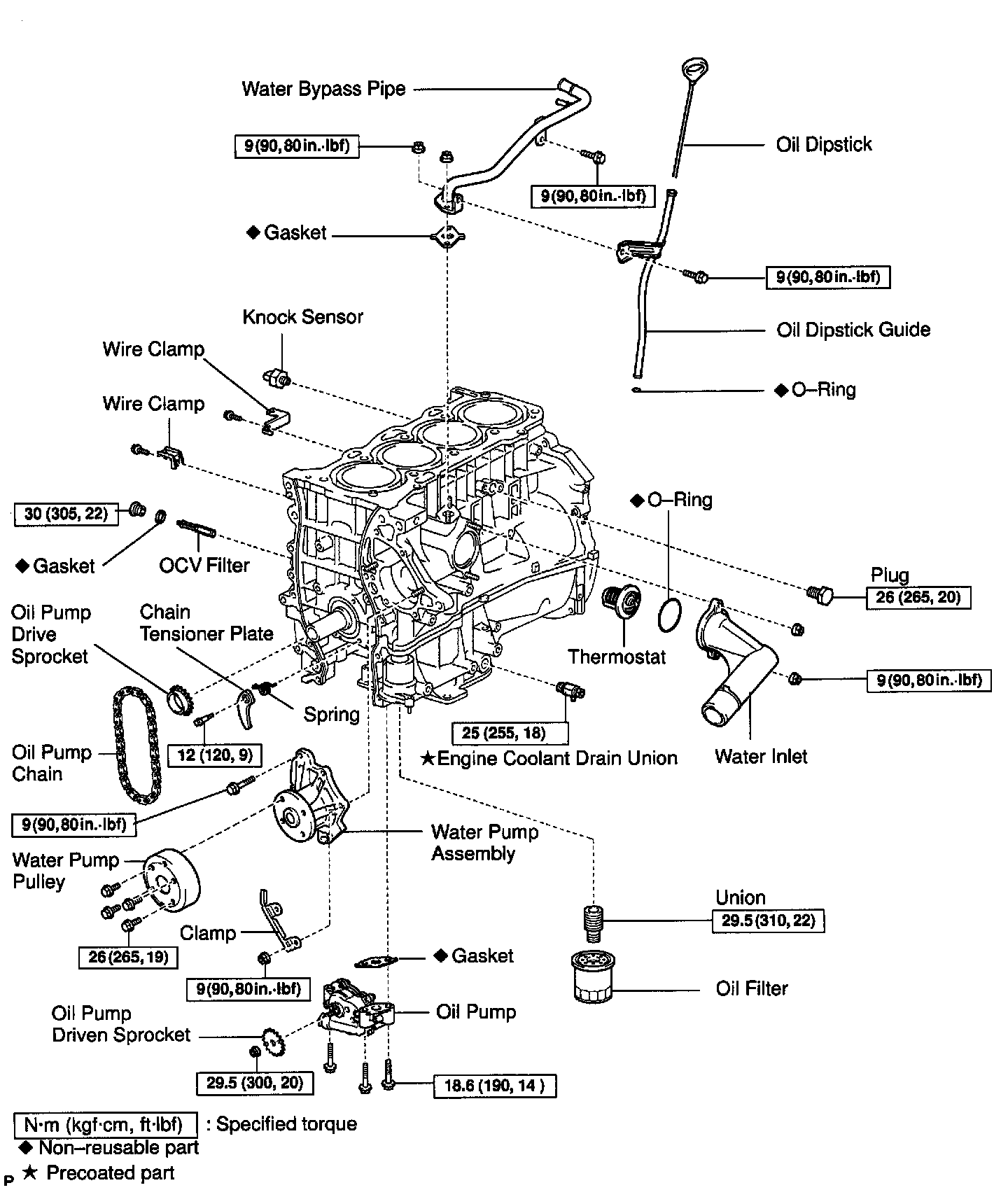

CYLINDER BLOCK OVERHAUL W/ RELATED COMPONENTS
