Home >> Toyota >> 2003 >> Prius >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Front Bumper >> Components

Front Bumper: Components

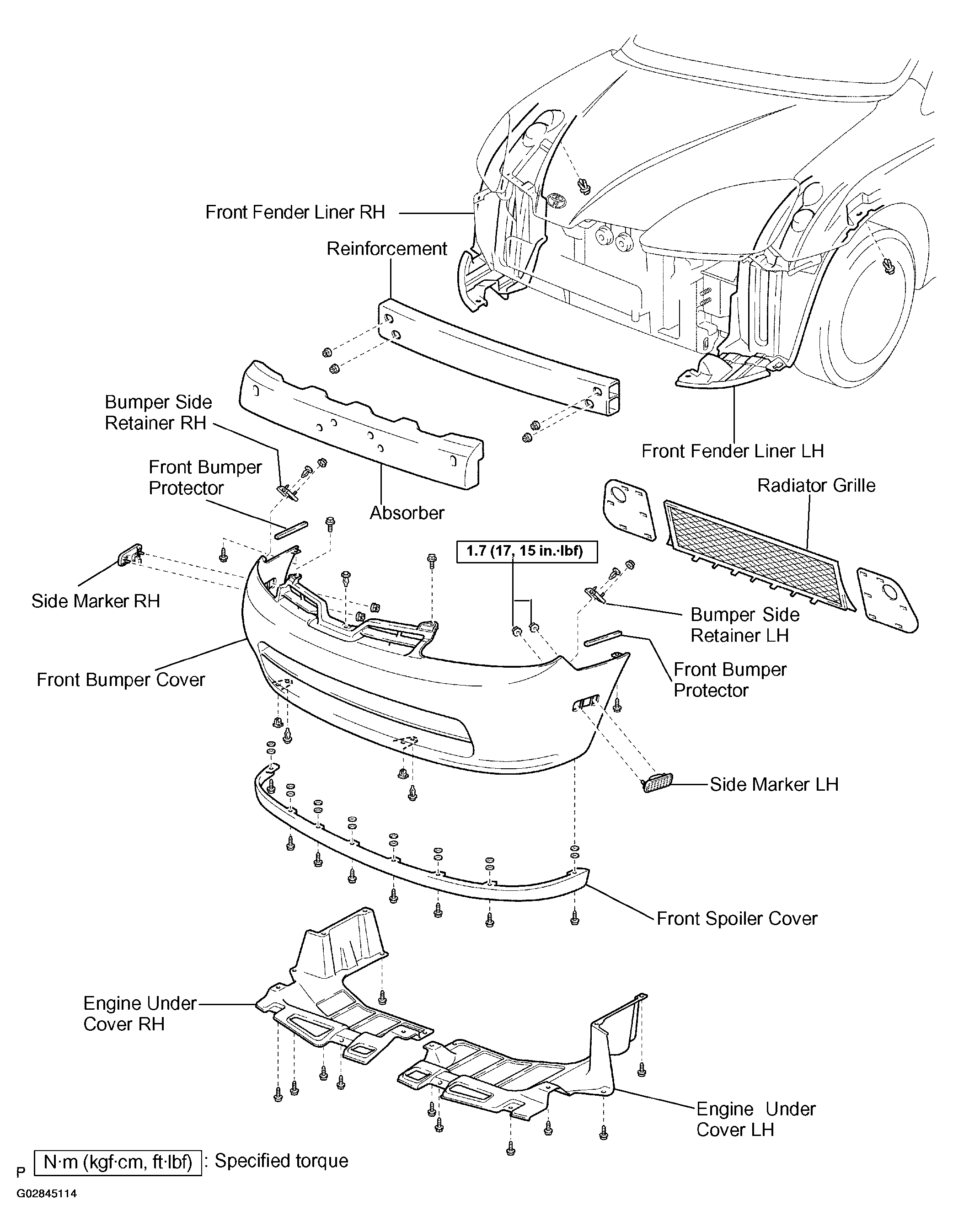

Fig 1: Identifying Components Of Front Bumper

G02845114

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
