Automatic Transmission Floor Shift Parking Lock Cable Assembly: Replacement

  1. REMOVE METER HOOD SUB-ASSY (See  REPLACEMENT  )
  2. REMOVE STEERING COLUMN COVER (See  OVERHAUL  )
  3. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See  REPLACEMENT  )
  4. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CTR (See  REPLACEMENT  )
  5. REMOVE INSTRUMENT PANEL BOX (See  REPLACEMENT  )
  6. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See  REPLACEMENT  )
  7. REMOVE FLOOR SHIFT PARKING LOCK CABLE ASSY
    1. Push the claw and disconnect the parking lock cable assy from the shift lock release link.

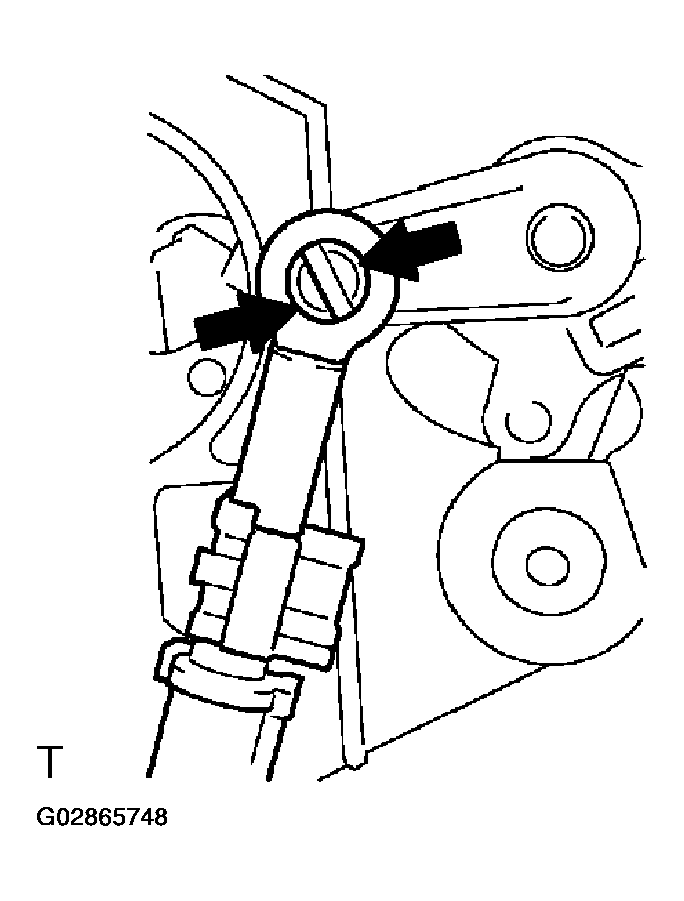

      Fig 1: Disconnecting Parking Lock Cable Assy From Shift Lock Release Link
      G02865748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screw driver, disconnect the parking lock cable assy from the shift lever plate.
      Fig 2: Disconnecting Parking Lock Cable Assy From Shift Lever Plate
      G02865749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the cable clamp.
      4. Fig 3: Disconnecting Cable Clamp
      G02865750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Turn the ignition switch ACC or ON.
    5. Using a screwdriver, disconnect the cable from the upper bracket.

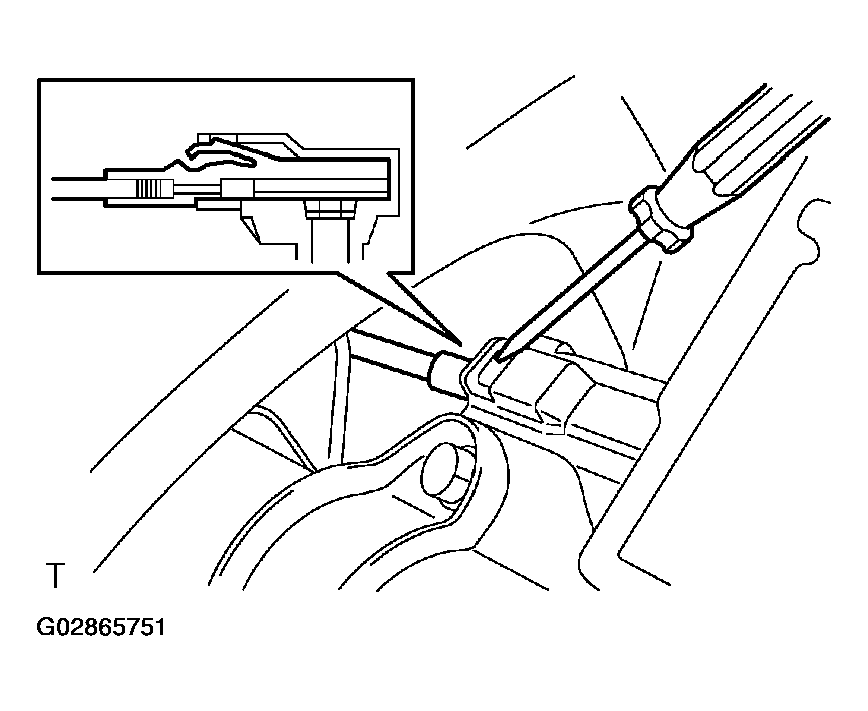

      6. Fig 4: Disconnecting Cable From Upper Bracket
      G02865751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL FLOOR SHIFT PARKING LOCK CABLE ASSY
    1. Turn the ignition switch ACC or ON.
    2. Connect the cable to the upper bracket.
      Fig 5: Connecting Cable To Upper Bracket
      G02865752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the cable clamp.
      4. Fig 6: Connecting Cable Clamp
      G02865753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Shift the shift lever to N position.
    5. Using a small screwdriver, unlock the claw of the lock key of automatic adjustment part.
      Fig 7: Unlocking Claw Of Lock Key Using A Screwdriver
      G02865754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Pass the parking lock cable through the hole of shift lever plate.

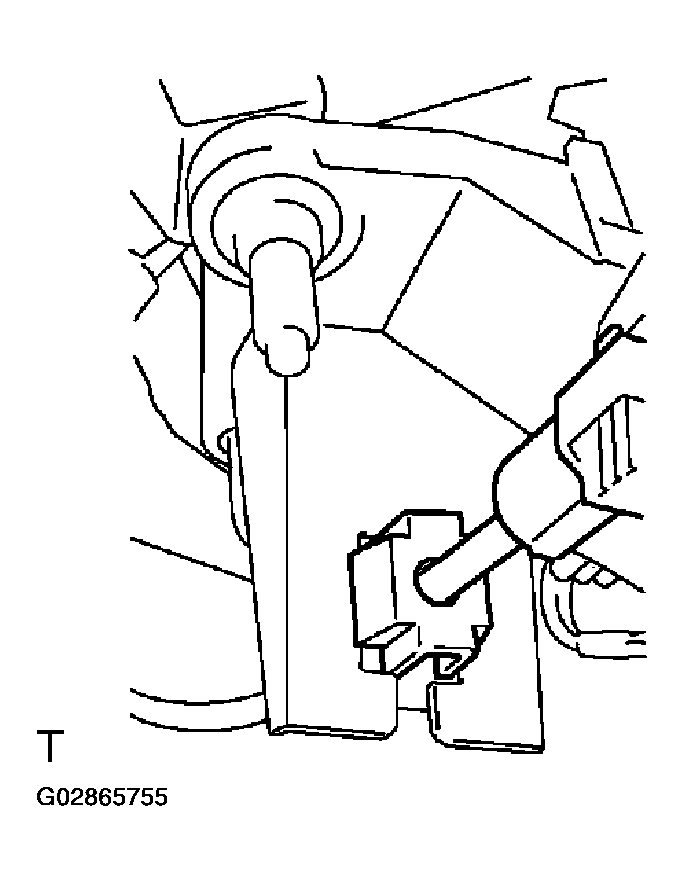

      7. Fig 8: Passing Parking Lock Cable Through Shift Lever Plate
      G02865755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Insert the slide cap into the shift lever plate.
    8. Apply MP grease to the shift lock release link.
    9. Insert the lever pin into the hole in the cable end.

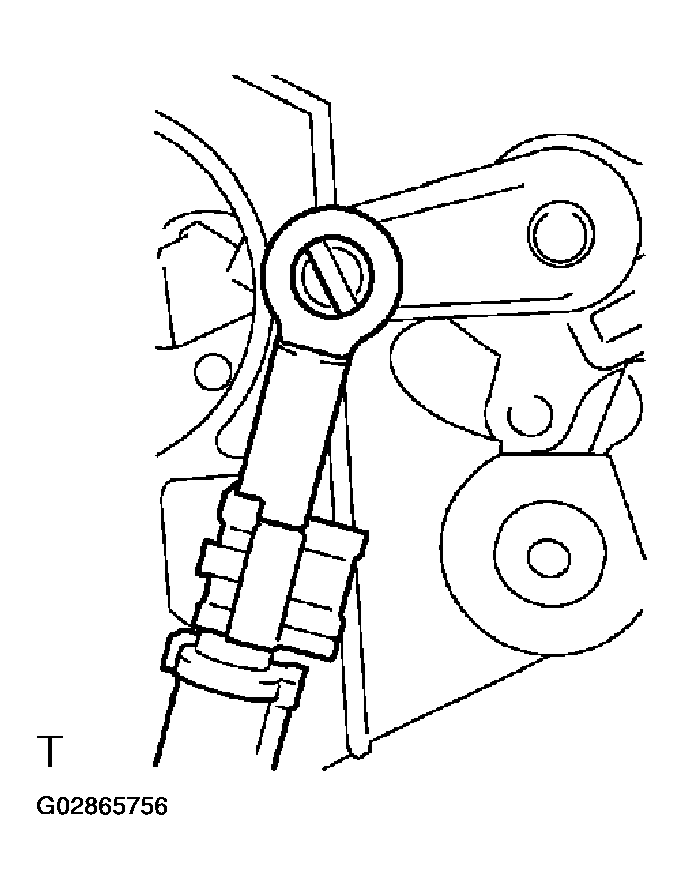

      Fig 9: Inserting Lever Pin Into Cable End
      G02865756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Lock the lock key.
      Fig 10: Locking Lock Key
      G02865757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: At this time, the shift lever should be in N position and the ignition key should be set to ACC or ON.
  9. CHECK KEY INTERLOCK OPERATION (See  ON-VEHICLE INSPECTION  )
