Section 396 (Blower Unit): Disassembly
WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE BLOWER MOTOR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove the 3 screws and blower motor.

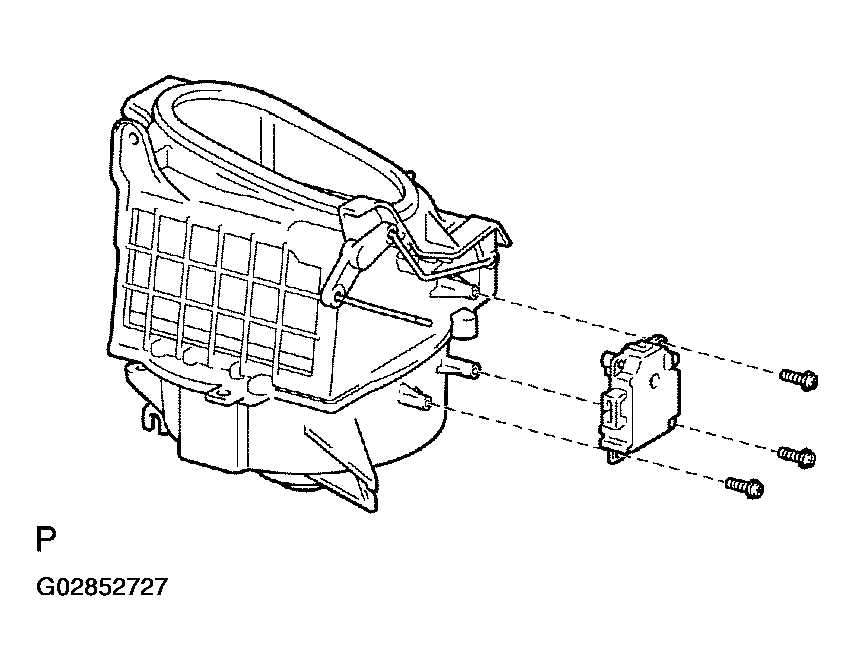

- REMOVE AIR INLET SERVOMOTOR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove the 3 screws and servomotor.
