Power Window Relay: Testing and Inspection







INSPECT RELAY (Making: P/W)
a. Remove the power window relay from the instrument panel J/B.

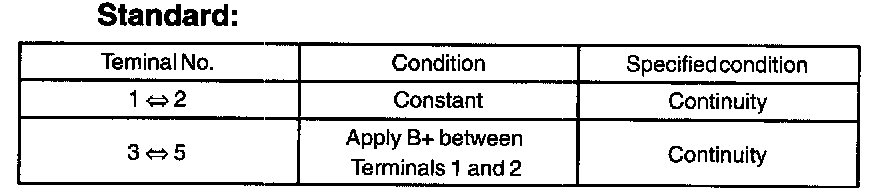

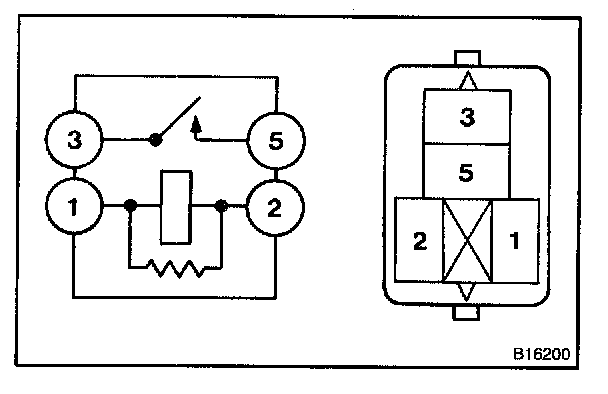

b. Inspect the power window relay.
If the result is not as specified, replace the relay.
