Home >> Toyota >> 2003 >> Matrix 4WD L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Differential Assembly

Differential Assembly

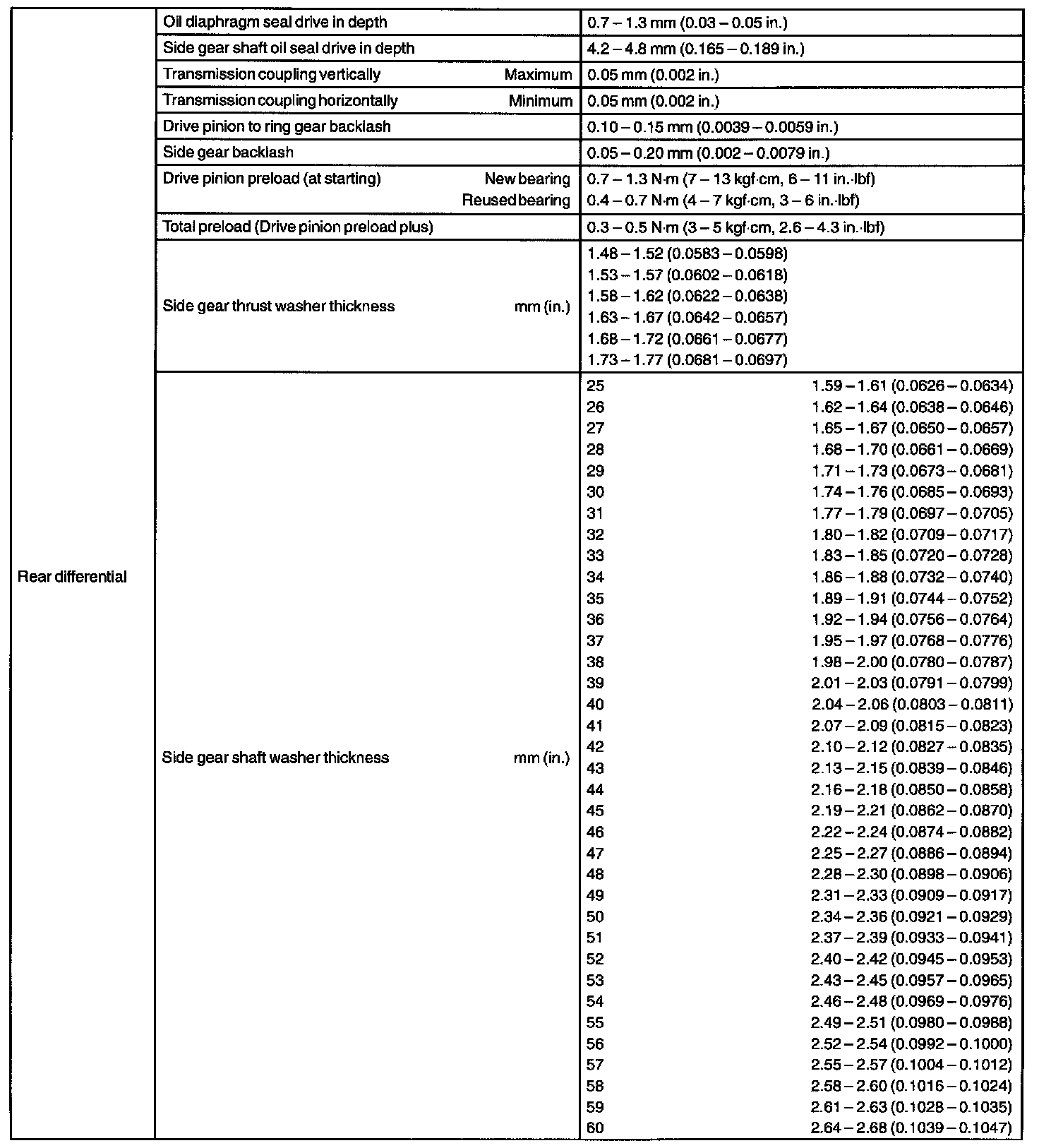

Differential - Service Data Part 1:

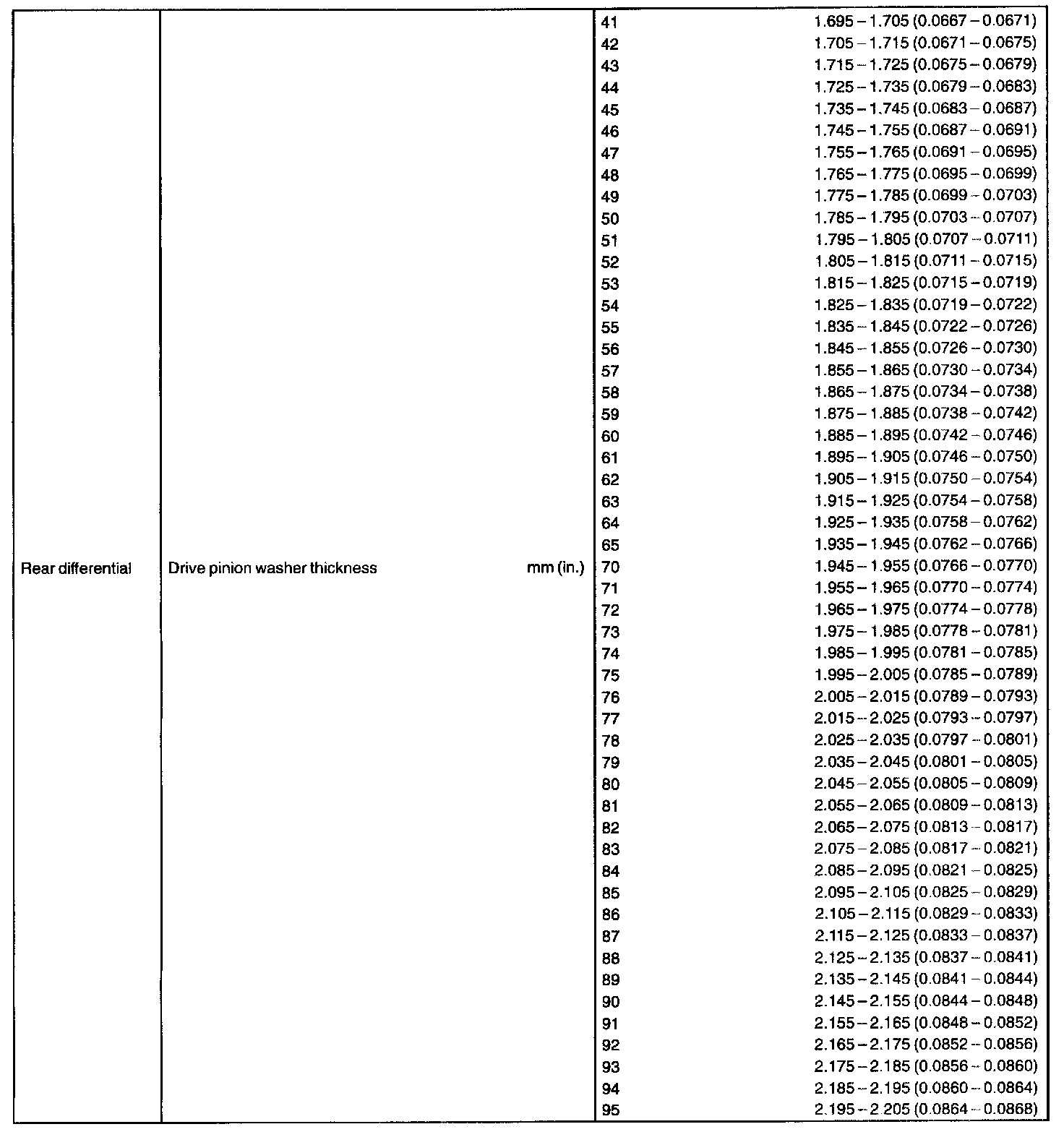

Differential - Service Data Part 2:

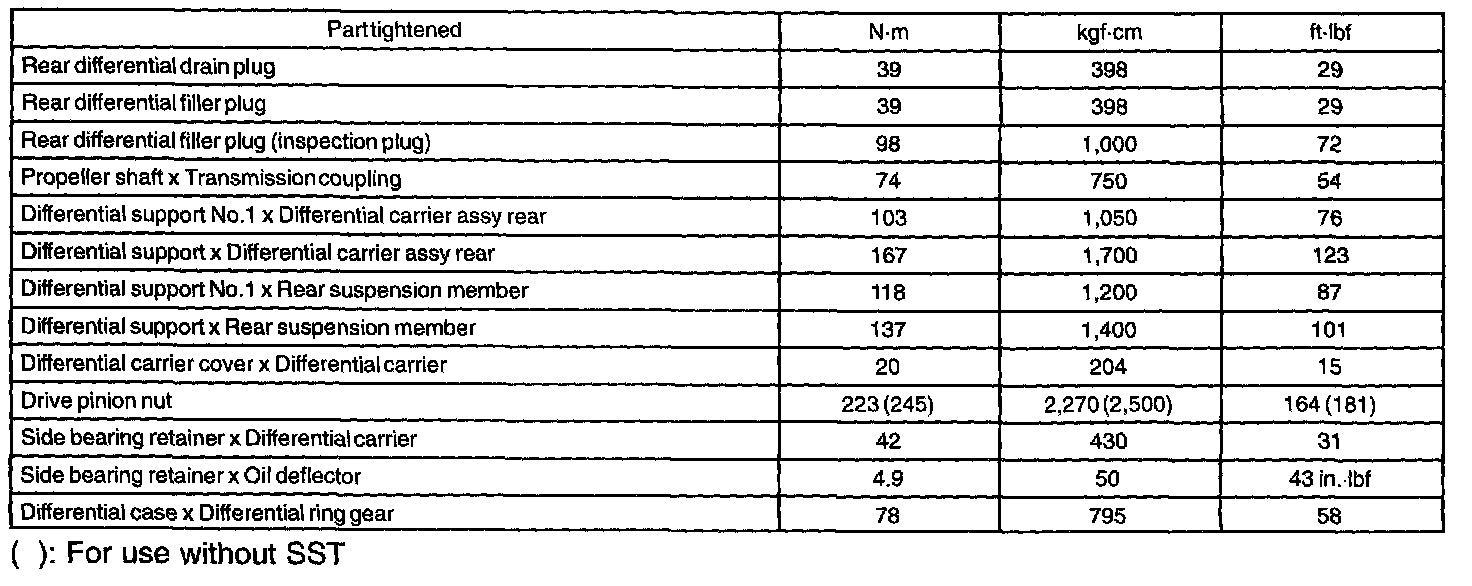

Differential - Torque Specification:
