Home >> Toyota >> 2003 >> Matrix 4WD L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Camshaft, Engine

Camshaft, Engine

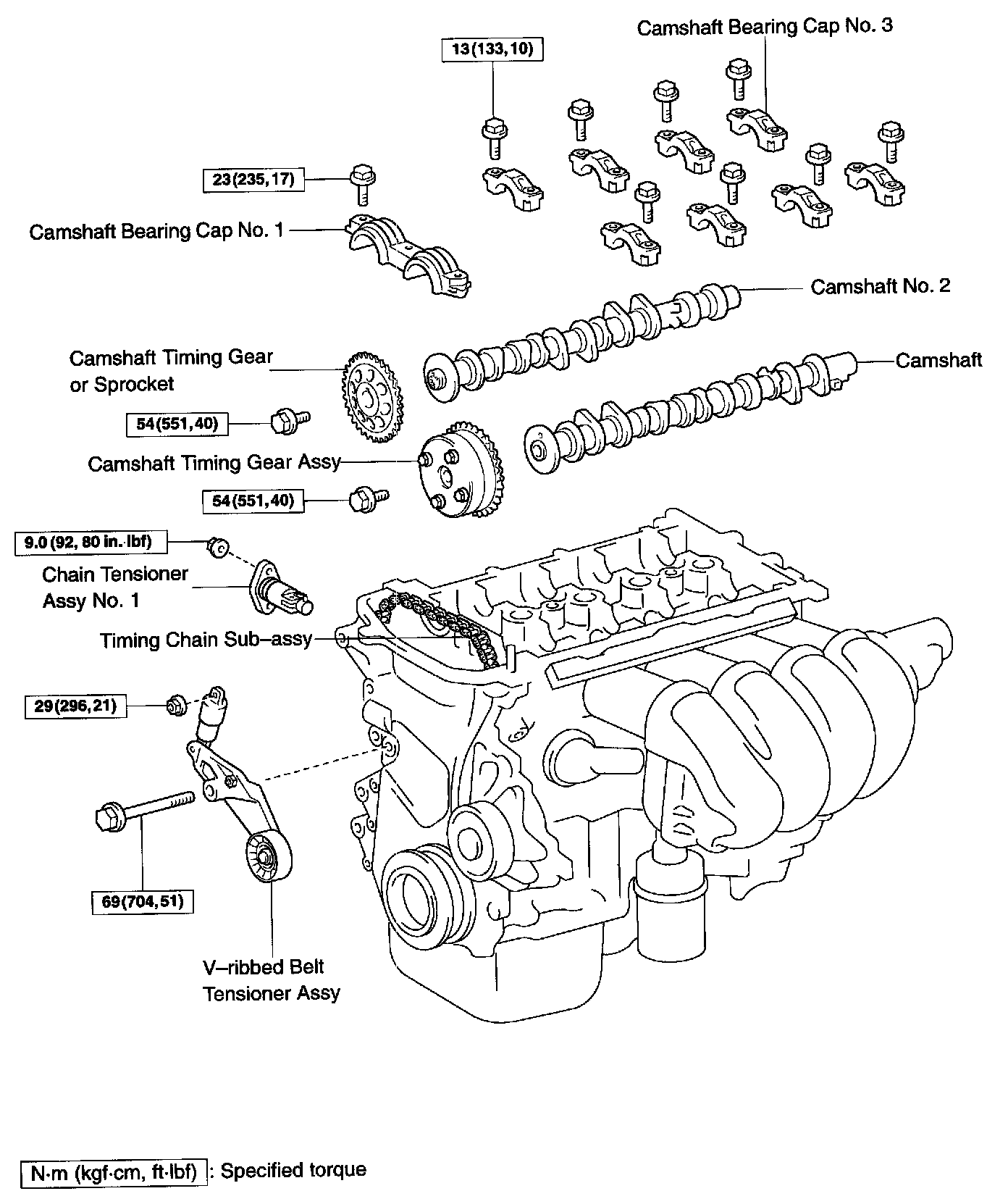

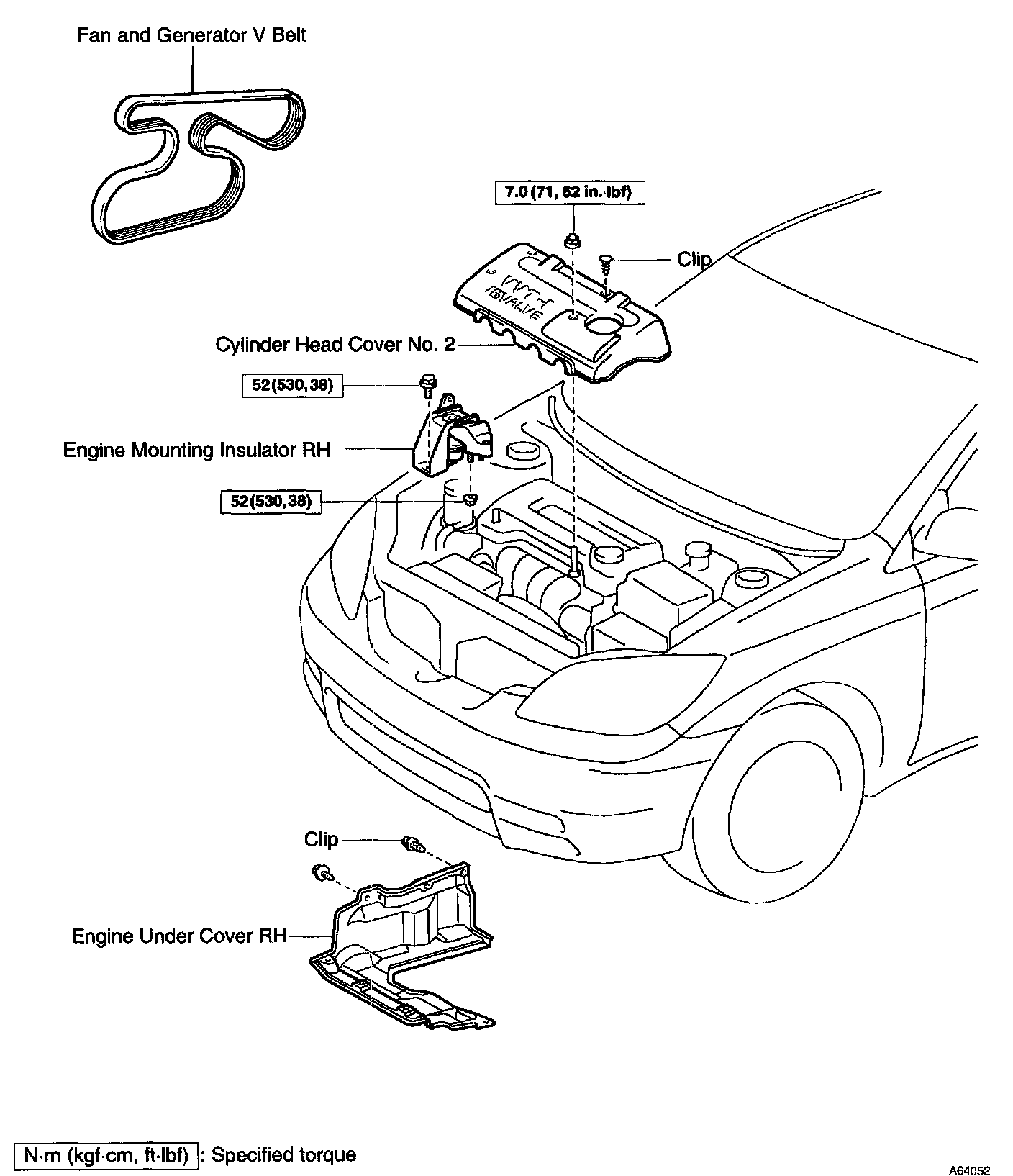

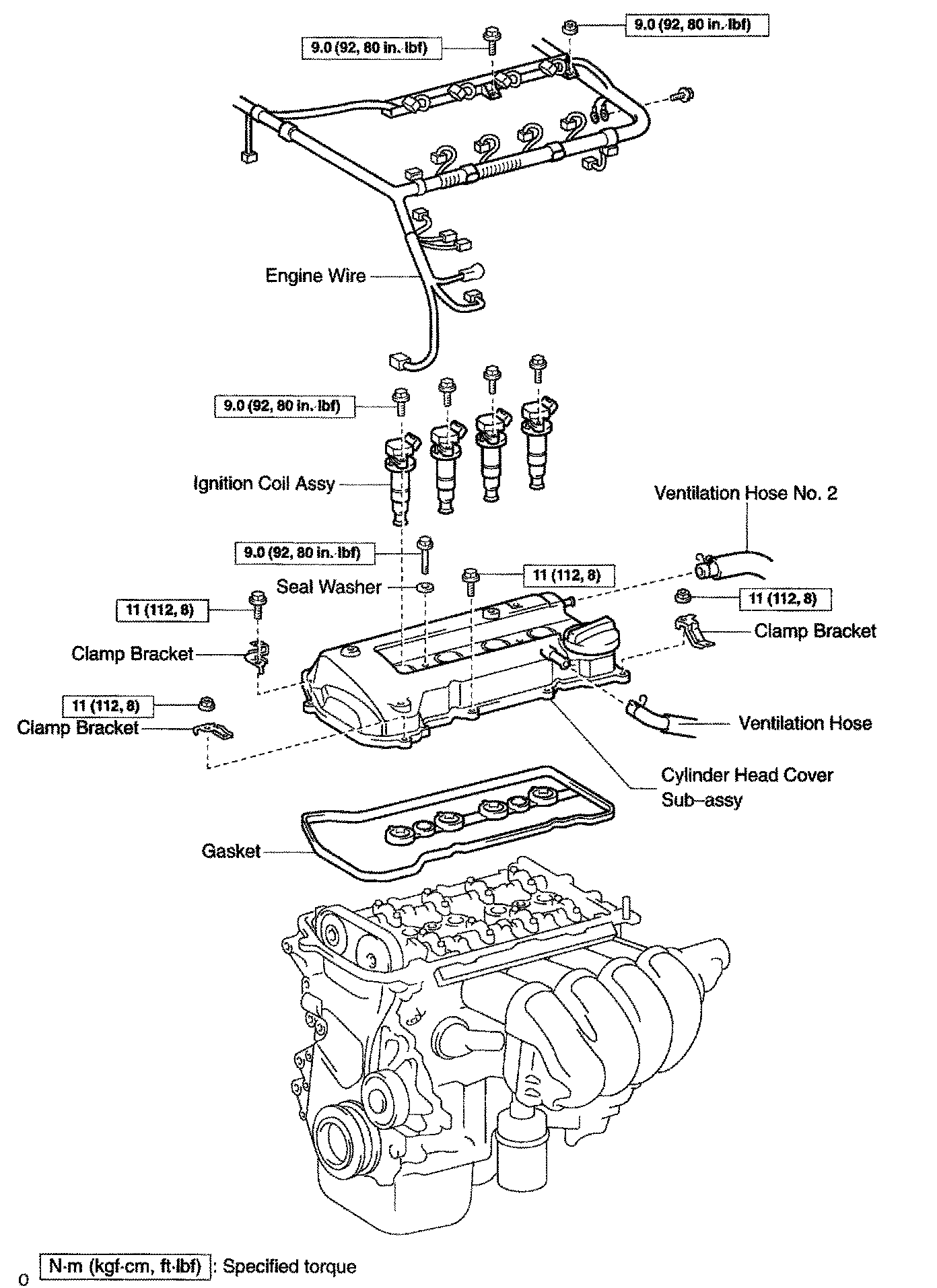

CAMSHAFT REPLACEMENT W/ RELATED COMPONENTS
